Spline Micrometer 150-175mm, 3mm Measuring Face 111-121

Roll over image to zoom in Click on image to zoom

Spline Micrometer 150-175mm, 3mm Measuring Face 111-121

Name: Spline Micrometer 150-175mm, 3mm Measuring Face 111-121
Brand: Mitutoyo
SKU: 111-121
Price: 377.78 EUR
Availability: InStock

MitutoyoSKU: 111-121

Price:

€377.78 €517.50

Quantity:

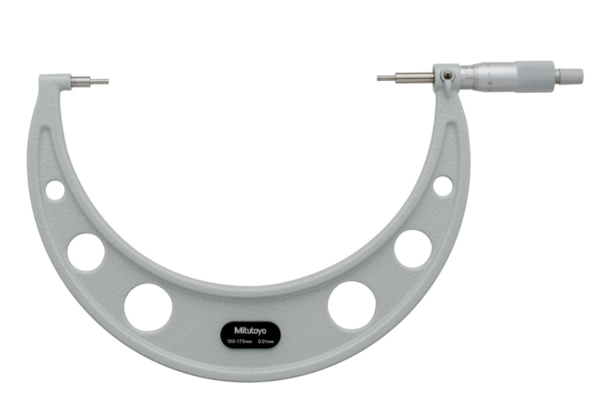

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

Stepped measuring surfaces.
Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	111-121
Measuring Range	150-175mm
Accuracy	["±.005mm"]
Graduation	.01mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Spline
Constant Force Device	Ratchet Stop
Flatness	.0003mm
Parallelism	3µm
Anvils & Spindle Design	Reduced from 6.35mm to 3mm x 10mm for type A
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	150 - 175 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Flatness:	0,3 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	900 g
