Spline Micrometer 125-150mm, 3mm Measuring Face 111-120

Roll over image to zoom in Click on image to zoom

Spline Micrometer 125-150mm, 3mm Measuring Face 111-120

Name: Spline Micrometer 125-150mm, 3mm Measuring Face 111-120
Brand: Mitutoyo
SKU: 111-120
Price: 352.0 EUR
Availability: InStock

Mitutoyo SKU: 111-120

List price: €454.00 Offer price: €352.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +€25.00 Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration

Add UKAS calibration of setting standard +€18.75 The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers +€13.00 Add your Gauge ID, asset/serial number, company name, logo or QR code.

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +€51.00 Part number: 156-101-10 → View product

Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +€39.00 Part number: 156-105-10 → View product

Gauge Block Set, Metric, JCSS Cert., ISO +€458.00 Part number: 516-106-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +€744.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +€619.00 Part number: MMi-8 → View product

Optical Parallels Set, Metric 0-25mm 157-903 +€434.00 Part number: 157-903 → View product

Overview Technical Information Applications Videos & Documents

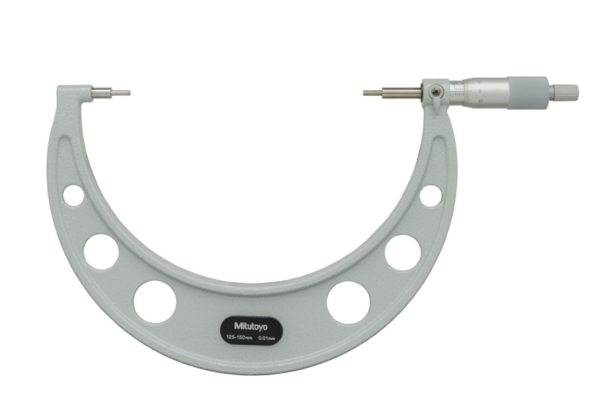

Spline Micrometer with 3mm Measuring Face

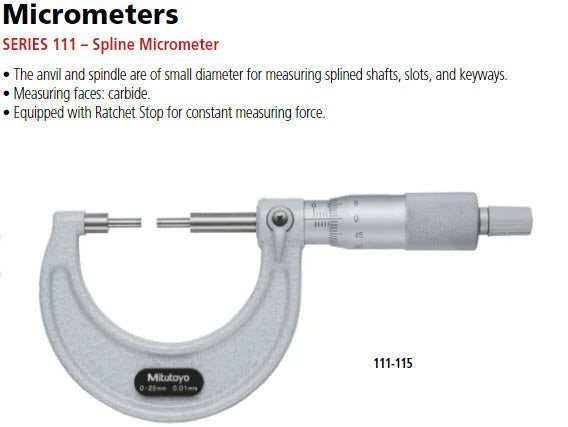

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

Stepped measuring surfaces.
Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Spline Micrometer 125-150mm, 3mm Measuring Face 111-120 Click to open the PDF document

Why Choose Inspection Equipment

Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.

46 Years of Experience Established in 1980 with decades of metrology expertise.

Technical Support Experienced specialists available before and after your purchase.

25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.

Expert Advice We will help you select the right instrument for your application.

Need help choosing the right product?

Call +353 (1) 450 2666 or email sales@inspection.ie

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric

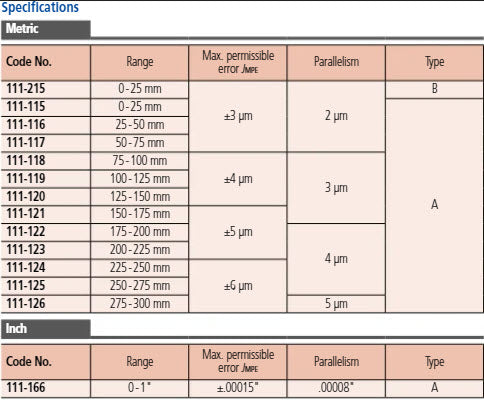

Range:	125 - 150 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	0,3 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped

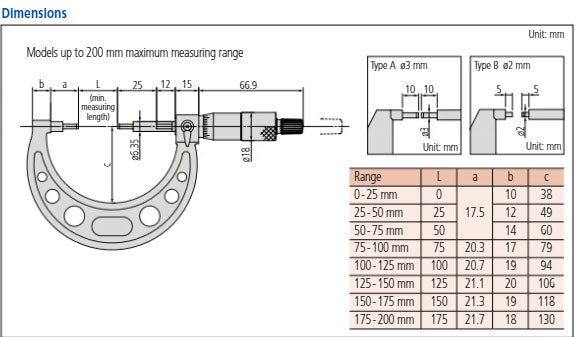

Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	710 g
