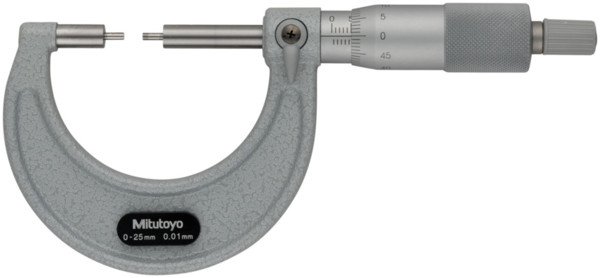

Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Roll over image to zoom in Click on image to zoom
Spline Micrometer 0-25mm, 2mm Measuring Face 111-215Spline Micrometer 0-25mm, 2mm Measuring Face 111-215Spline Micrometer 0-25mm, 2mm Measuring Face 111-215Spline Micrometer 0-25mm, 2mm Measuring Face 111-215Spline Micrometer 0-25mm, 2mm Measuring Face 111-215

Spline Micrometer 0-25mm, 2mm Measuring Face 111-215

Mitutoyo SKU: 111-215
List price: €227.00 Offer price: €176.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

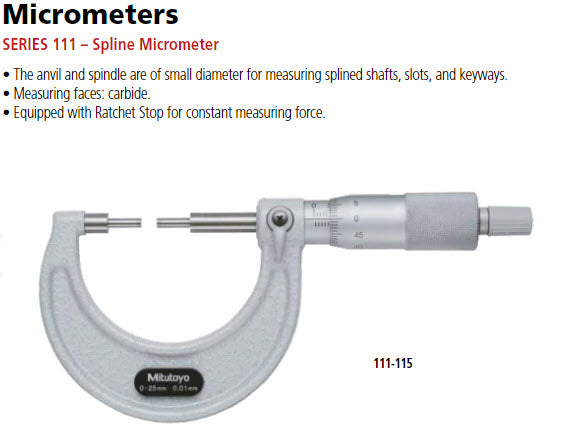

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:
  • Stepped measuring surfaces.
  • Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.

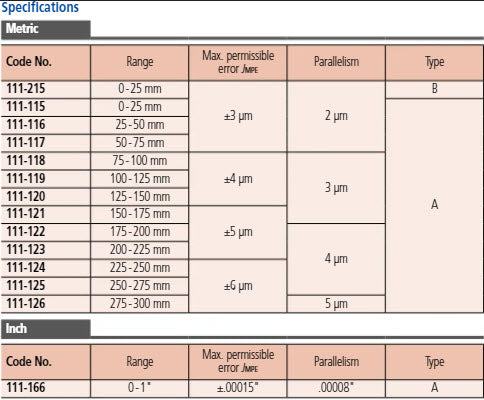

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type B, D=2 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
205 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
