Mitutoyo SKU: 111-166
List price: €216.00 Offer price: €168.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

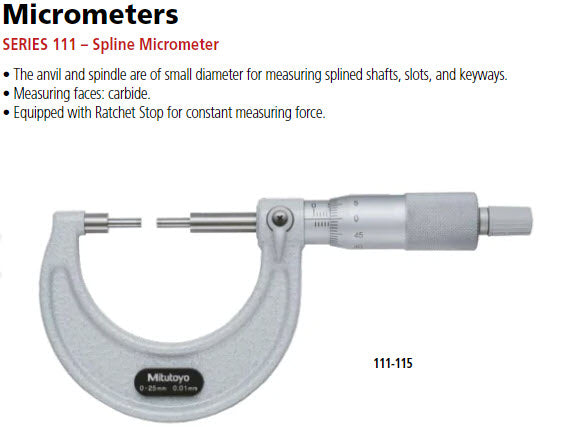

Spline Micrometer with 3mm Measuring Face

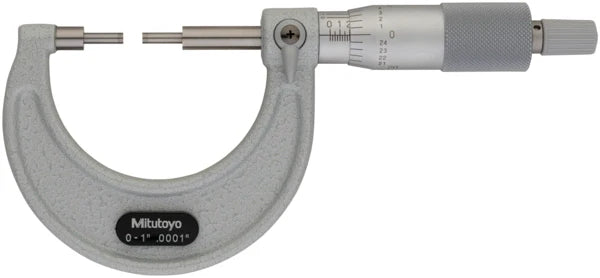

A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement. High resolution provided by a vernier scale on sleeve.

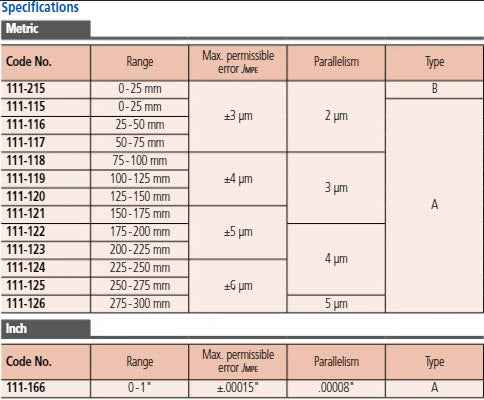

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Inch
Range:
0 - 1 "
Graduation:
0,0001"
Max.
Permissible Error
J MPE:
±0,00015"
Flatness:
0,000012"
Parallelism:
0,00008"
Measuring face:
Carbide-tipped, micro-lap finish, stepped

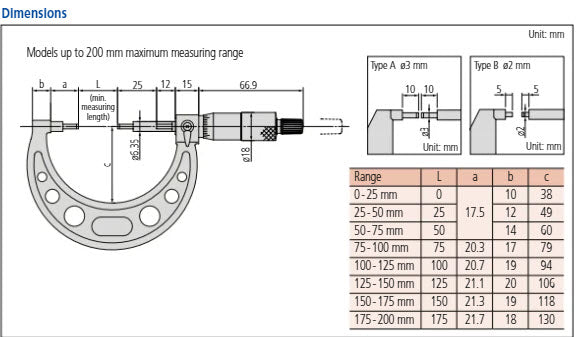

Anvil / Spindle:
Type A, D=3 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
205 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
