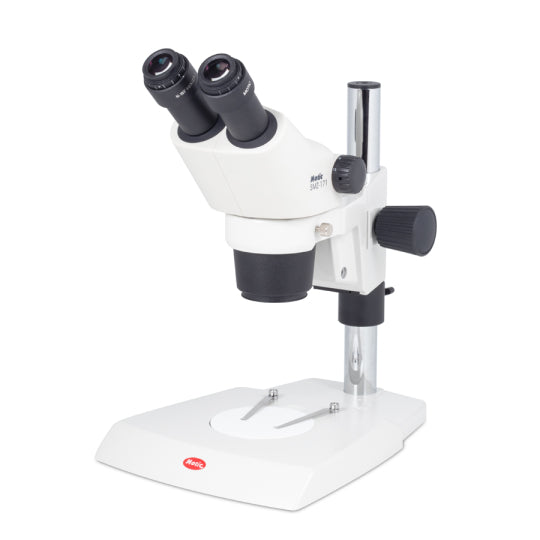

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification for measurements through eyepiece reticles. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.
| Observation tube | Binocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Interpupillary distance | 52-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |

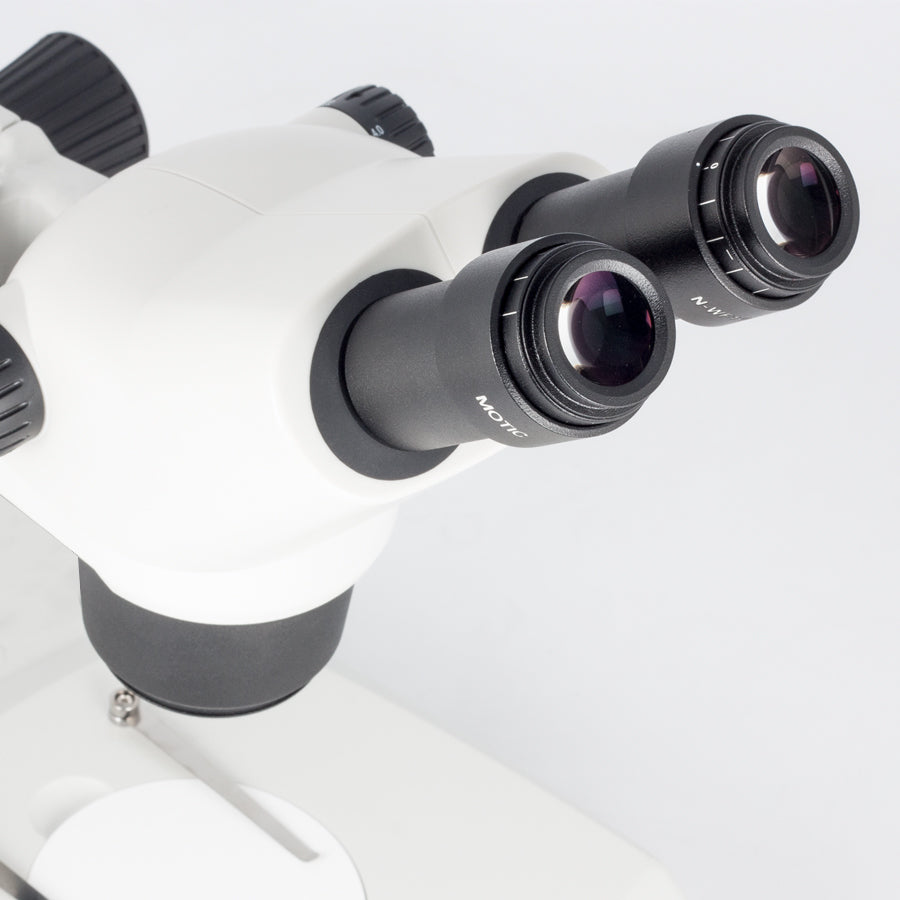

| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 110mm |

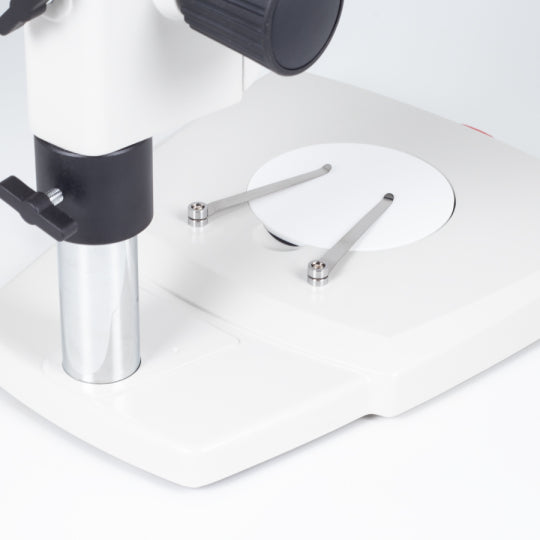

| Stand type | Pole type stand without illumination |
| Head holder | For Ø32mm column and Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |
| Accessories included | Dust cover, black/white stage plate |
| Dimensions LxWxH | 303x239x370mm |
| Base | 303x239mm |
| Column/Arm | Height 290mm, Ø32mm |
| Weight Net | 5.45kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
