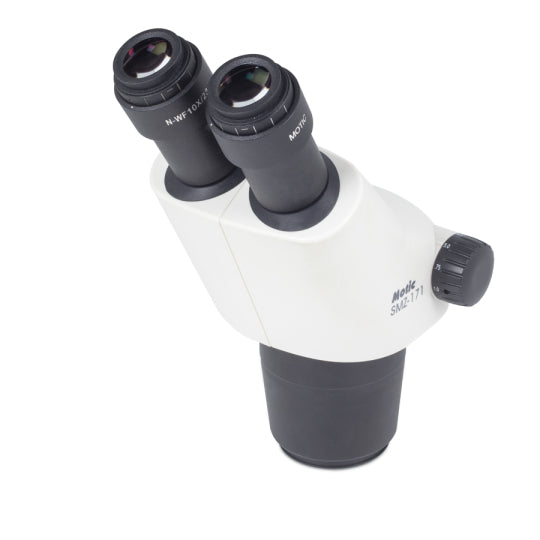

A stereo microscope head based on a Greenough optical system. The parfocal 6.7:1 zoom optics is meant for OEM purposes or the integration in experimental setups. The binocular head with 60° inclination is adjustable in a range of 52-75mm Interpupillary distance. The Widefield eyepieces WF10X/23mm provide an enlarged sample overview. A working distance of 110mm gives freedom for manipulation work in a standard magnification range of 7.5X-50X.
| Observation tube |
Binocular head |
| Optical system |
Greenough |
| Inclination |
60º inclined |
| Interpupillary distance |
52-75mm |
| Diopter adjustment |
On both eyepieces, +/- 5 diopter |
| Eyepieces |
Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system |
Zoom, ratio 6.7:1 |
| Objectives |
0.75X~5X |
| Working distance |
110mm |
| Accessories included |
Dust cover |
| Dimensions LxWxH |
303x239x405mm |
| Weight Net |
1.3kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
