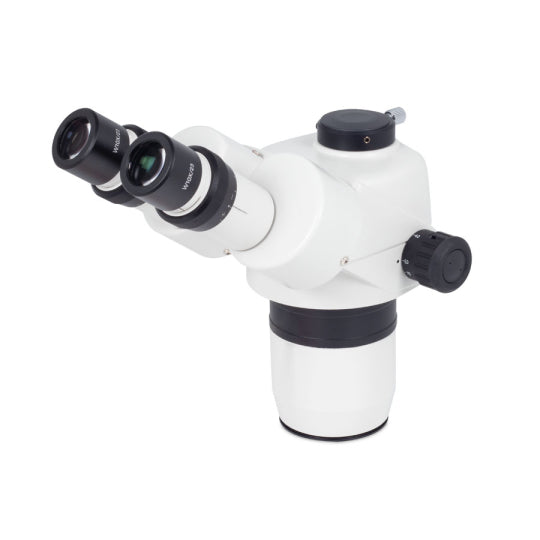

A Trinocular stereo microscope body with eyepieces, based on a Greenough optical system in a parfocal 6.7:1 zoom. The standard magnification range of 7.5X-50X allows multiple inspection and documentation work, depending on the combination of the optics with optional industrial stands and external light sources.
| Observation tube |
35º inclined head |
| Optical system |
Greenough |
| Inclination |
35º inclined |
| Trinocular light split |
100:0/0:100 on left tube |
| Interpupillary distance |
54-76mm |
| Diopter adjustment |
On both tubes, +/- 5 diopter |
| Eyepieces |
Widefield WF10X/23mm |
| Objectives system |
Zoom, ratio 6.7:1 |
| Objectives |
0.75X~5X |
| Working distance |
113mm |
| Accessories included |
Dust cover |
| Dimensions LxWxH |
329x277x365mm |
| Weight Net |
2.2kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
