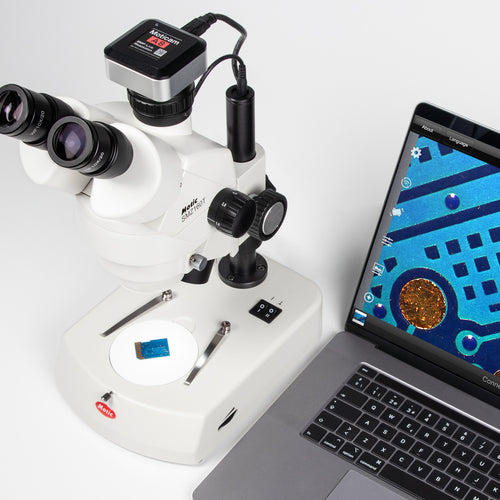

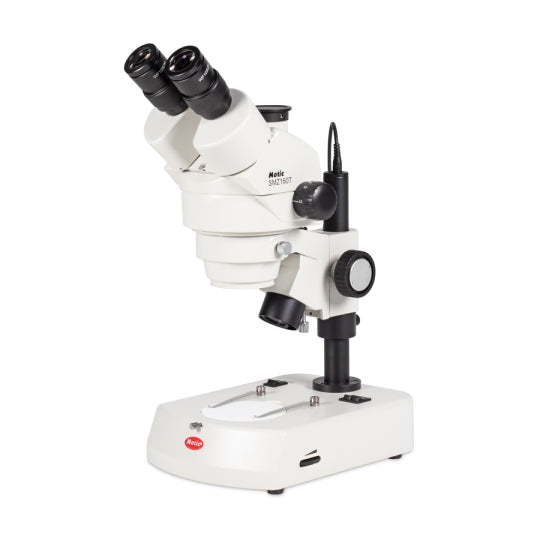

Trinocular stereo microscope for education work in university and High school, but also for documentation in a QC lab. The Greenough optical system delivers clear and distortion-free images in a zoom of 6:1, giving a magnification range of 7.5x-45x in standard outfit. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software. Students and lab technician benefit from the package solution with integrated transmitted/incident LED illumination, ready to start.
| Observation tube |
Trinocular head |
| Optical system |
Greenough |
| Inclination |
45º inclined |
| Trinocular light split |
Fixed 50:50 |
| Interpupillary distance |
50-75mm |
| Diopter adjustment |
On both tubes, +/- 5 diopter |
| Eyepieces |
Widefield WF10X/20mm |

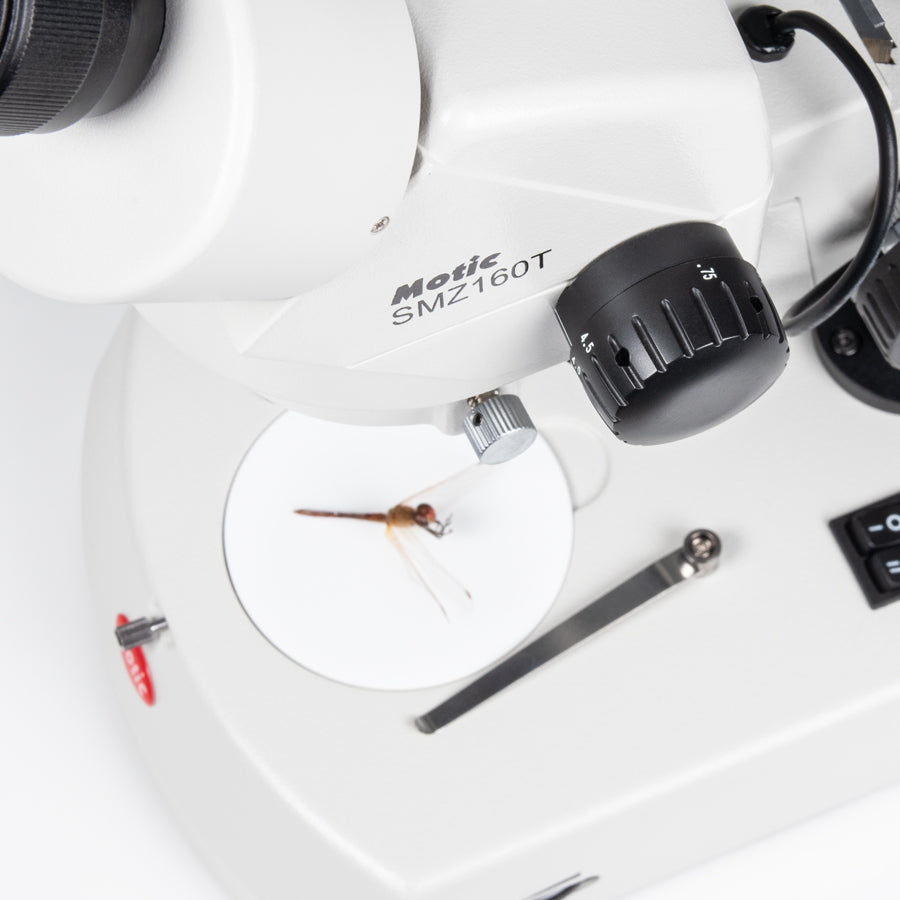

| Objectives system |
Zoom, ratio 6:1 |
| Objectives |
0.75X~4.5X |
| Working distance |
100mm |
| Stand type |
Pole type stand with transmitted illumination |
| Head holder |
For Ø 25mm column and Ø76mm head with incident illumination |
| Focus mechanism |
Coarse focusing system with tension adjustment |
| Focusing stroke |
43mm |

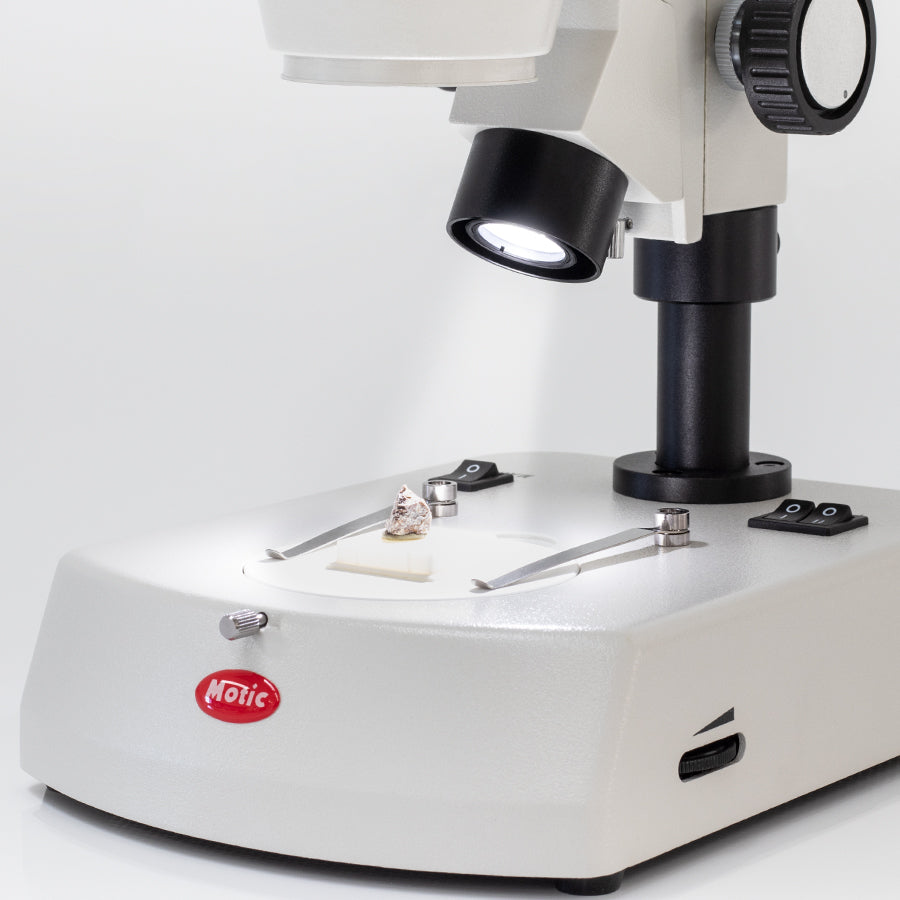

| Incident illumination |
LED 3W with intensity control |
| Transmitted illumination |
LED 3W with intensity control |
| Transformer |
External |
| Power supply |
100-240V (CE) |
| Accessories included |
Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH |
237x170x398mm |
| Base |
237x170mm |
| Column/Arm |
Height 205mm, Ø25mm |
| Weight Net |
3.7kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
| Polarization |
Optional add-on |
| Darkfield |
Optional add-on |
