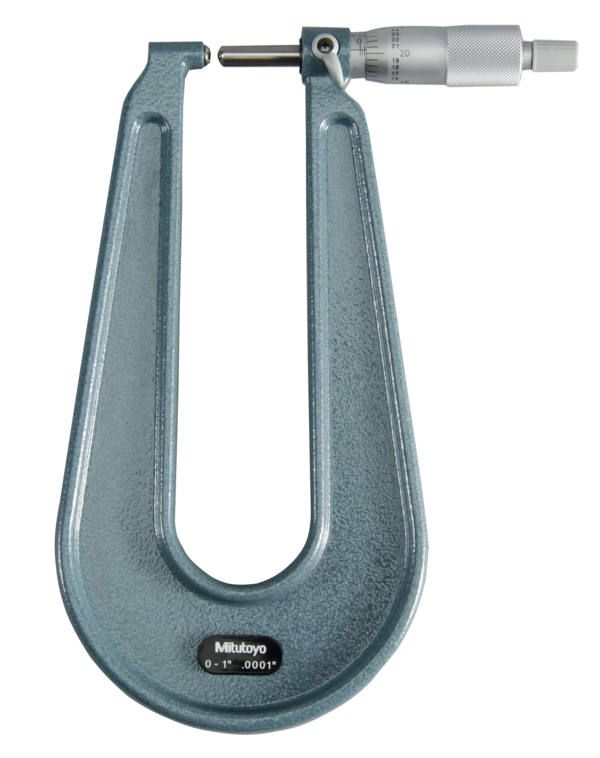

Sheet Metal Micrometer 0-1", Spherical Anvil/Spindle, 6" Throat 118-120 Type C (S -S )

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 0-1", Spherical Anvil/Spindle, 6" Throat 118-120 Type C (S -S )

Name: Sheet Metal Micrometer 0-1", Spherical Anvil/Spindle, 6" Throat 118-120 Type C (S -S )
Brand: Mitutoyo
SKU: 118-120
Price: 220.83 EUR
Availability: InStock

MitutoyoSKU: 118-120

Price:

€220.83 €302.50

Quantity:

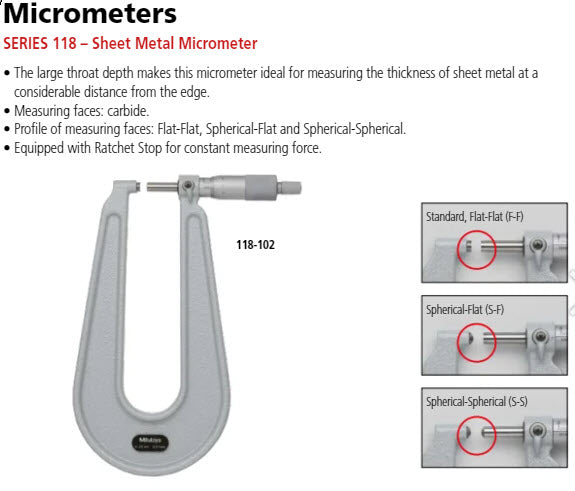

A Mitutoyo non-digital micrometer provided with spherically radiused spindle-end and anvil and a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Product Information
Part Number	118-120
Measuring Range	0-1"
Accuracy	["±.0002\""]
Graduation	.0001"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Measuring Force	8+/-0.8N
Type	Sheet Metal
Constant Force Device	Ratchet Stop
Flatness	.000024"
Parallelism	.00012"

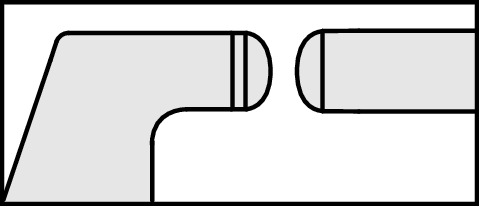

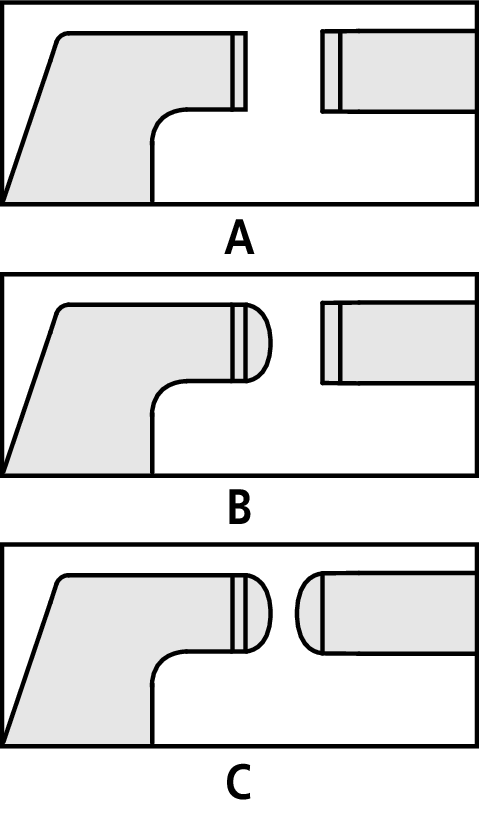

Anvils & Spindle Design	Spherical Anvil & Spherical Spindle Type C (S-S)
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,0001"
Max. Permissible Error J MPE:	±0,0002"
Parallelism:	0,00012"
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type C, spherical/spherical
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	740 g
