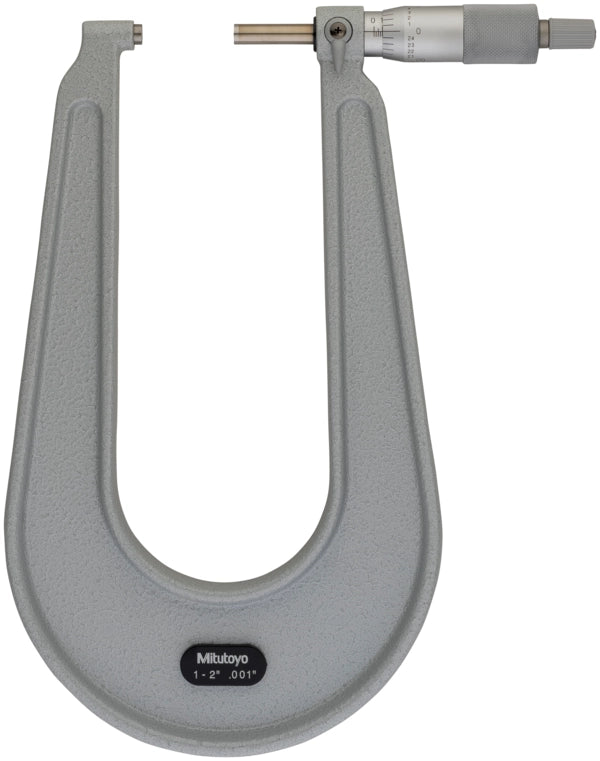

Sheet Metal Micrometer 1-2", Flat Anvil & Spindle, 6"Throat 118-112 Type A (F-F)

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 1-2", Flat Anvil & Spindle, 6"Throat 118-112 Type A (F-F)

Name: Sheet Metal Micrometer 1-2", Flat Anvil & Spindle, 6"Throat 118-112 Type A (F-F)
Brand: Mitutoyo
SKU: 118-112
Price: 230.0 EUR
Availability: InStock

Mitutoyo SKU: 118-112

List price: €296.00 Offer price: €230.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +€25.00 Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.

Professional Laser Marking by Automator Lasers +€13.00 Add your Gauge ID, asset/serial number, company name, logo or QR code.

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +€51.00 Part number: 156-101-10 → View product

Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +€39.00 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +€744.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +€619.00 Part number: MMi-8 → View product

Gauge Block Set, Metric, JCSS Cert., ISO +€458.00 Part number: 516-106-10 → View product

Overview Technical Information Applications Videos & Documents

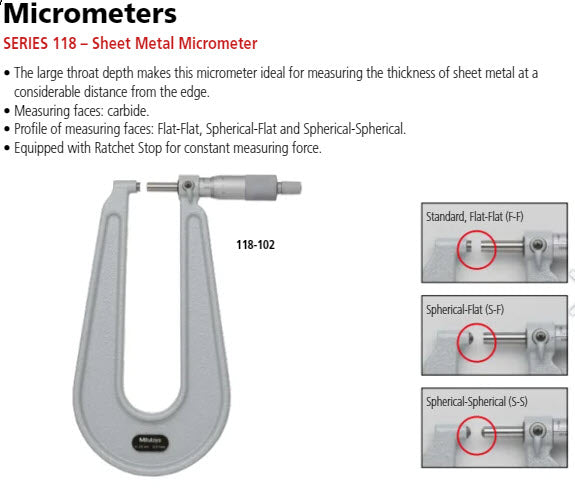

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Sheet Metal Micrometer 1-2", Flat Anvil & Spindle, 6"Throat 118-112 Type A (F-F) Click to open the PDF document

Why Choose Inspection Equipment

Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.

46 Years of Experience Established in 1980 with decades of metrology expertise.

Technical Support Experienced specialists available before and after your purchase.

25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.

Expert Advice We will help you select the right instrument for your application.

Need help choosing the right product?

Call +353 (1) 450 2666 or email sales@inspection.ie

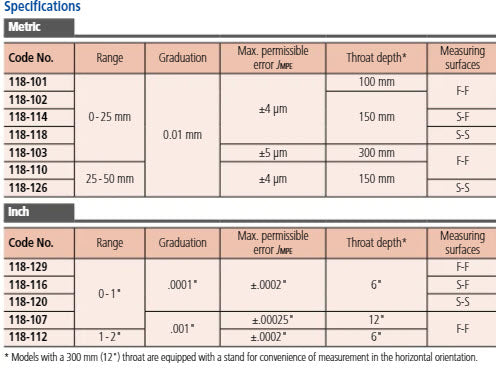

Digital/Analog:	Analog

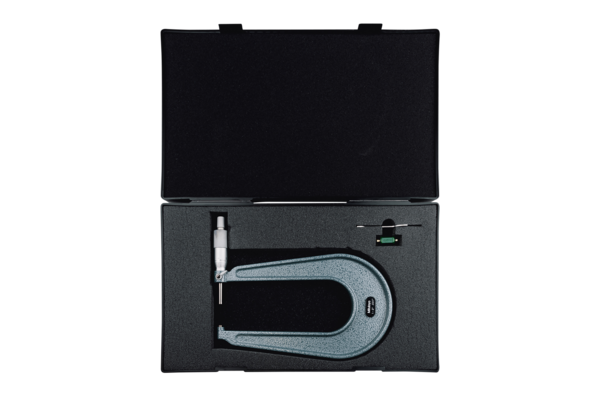

Delivered:	Including box, spanner, setting standard
Inch-Metric:	Inch
Range:	1 - 2 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,0002"
Parallelism:	0,00012"
Measuring face:	Carbide-tipped, micro-lap finish

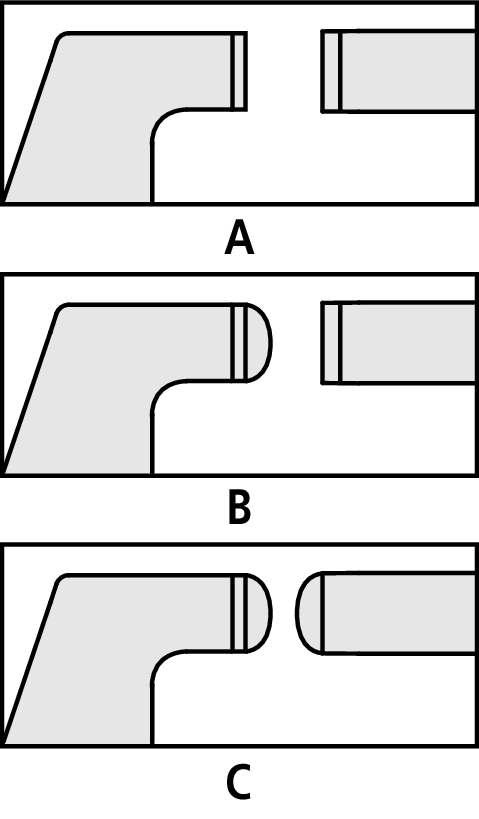

Anvil / Spindle:	Type A, flat/flat
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	820 g
