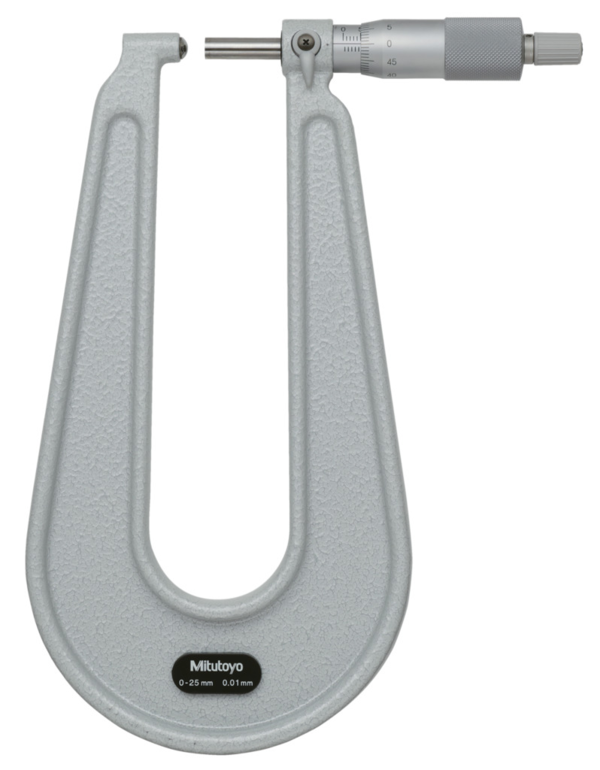

Sheet Metal Micrometer 0-1", Spherical Anvil, 6" Throat 118-114

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 0-1", Spherical Anvil, 6" Throat 118-114

Name: Sheet Metal Micrometer 0-1", Spherical Anvil, 6" Throat 118-114
Brand: Mitutoyo
SKU: 118-114
Price: 211.7 EUR
Availability: InStock

MitutoyoSKU: 118-114

Price:

€211.70 €290.00

Quantity:

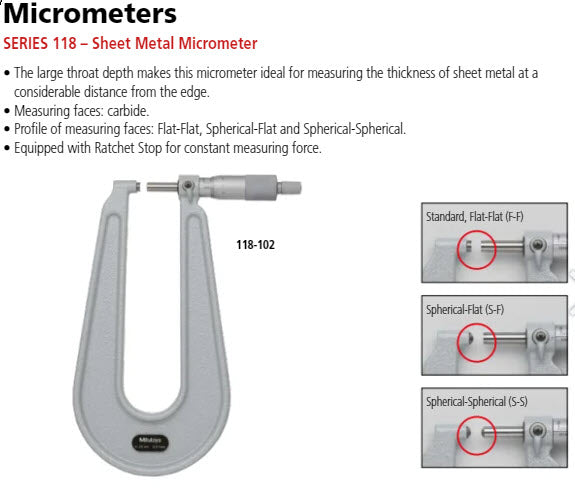

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Product Information
Part Number	118-114
Measuring Range	0-25mm
Accuracy	["±.004mm"]
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Sheet Metal
Constant Force Device	Ratchet Stop
Flatness	.0006mm
Parallelism	3µm

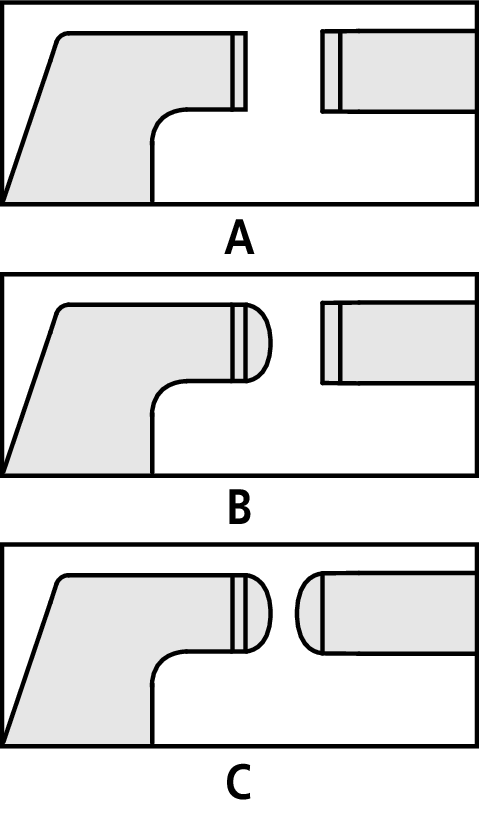

Anvils & Spindle Design	Spherical Anvil & Flat Spindle Type B (S-F)

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	0,6 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type B, spherical/flat
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	740 g
