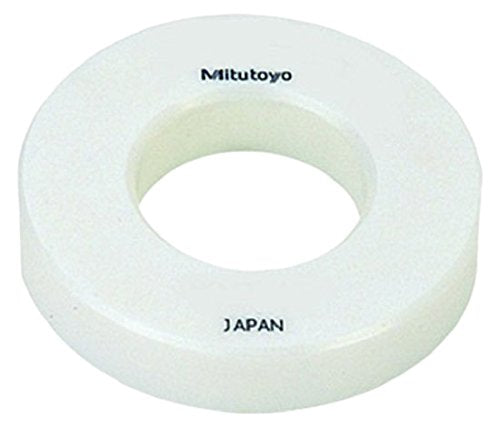

Setting Ring 6mm 177-420 Ceramic

Name: Setting Ring 6mm 177-420 Ceramic
Brand: Mitutoyo
SKU: 177-420
Price: 229.95 EUR
Availability: InStock

MitutoyoSKU: 177-420

Price:

€229.95 €315.00

Quantity:

Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
Nominal diameter is marked in 0,001 mm increments

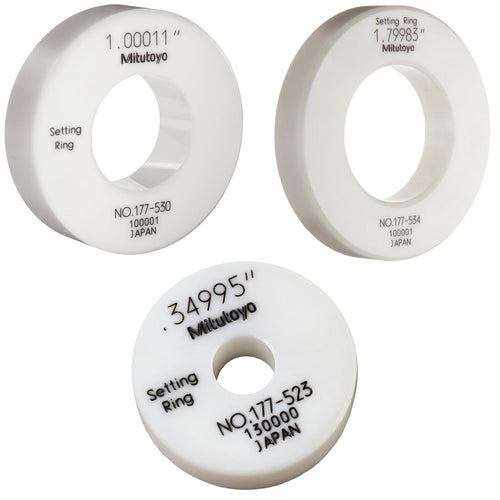

Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	177-420
Measuring Range	6mm
Material	["Ceramic"]
Size	6mm
Roundness	1µm

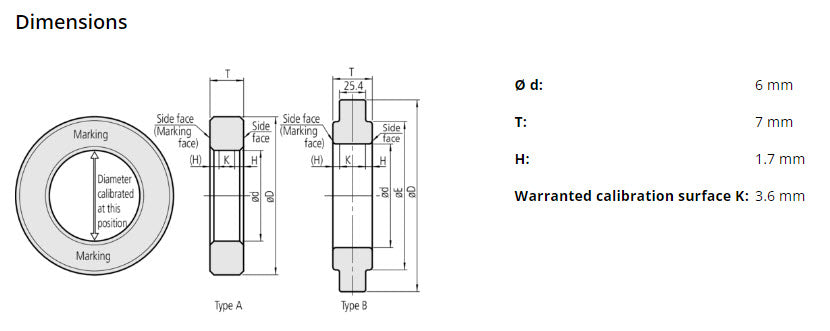

Size Warranted Calibration Surface K(mm)	3.6mm
Distance From the Side Face H	1.7mm
Uncertainty of Marked Diameter Value µm	±1.5µm
Tolerance Between Nominal size and Actual Diameter	±10µm
Thickness	7mm
Calibration Code	CAL37 B2

Inch-Metric:	Metric
Nominal size ød:	6 mm
Type:	A
Material:	Ceramic
Delivered:	Without certificate of inspection
Tolerance nominal size / marked diameter:	±10.0 µm
Uncertainty of marked diameter:	1.5 µm
Roundness / Cylindricity:	1.0 µm
