Setting Ring 4mm 177-418 Ceramic Ring Gauge

Name: Setting Ring 4mm 177-418 Ceramic Ring Gauge
Brand: Mitutoyo
SKU: 177-418
Price: 233.6 EUR
Availability: InStock

MitutoyoSKU: 177-418

Price:

€233.60 €320.00

Quantity:

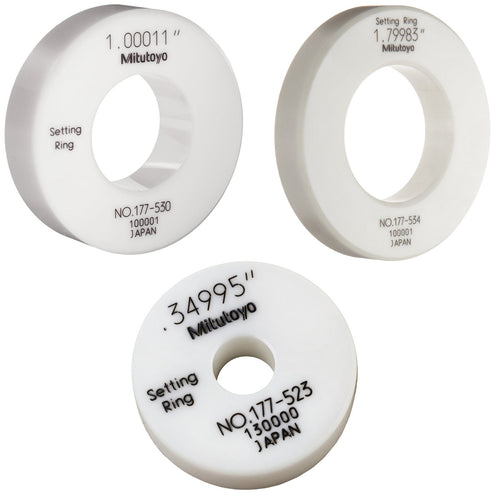

Ceramic Ring Gauge
Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
Nominal diameter is marked in 0,001 mm increments
Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	177-418
Measuring Range	4mm
Material	["Ceramic"]
Size	4mm
Roundness	1µm

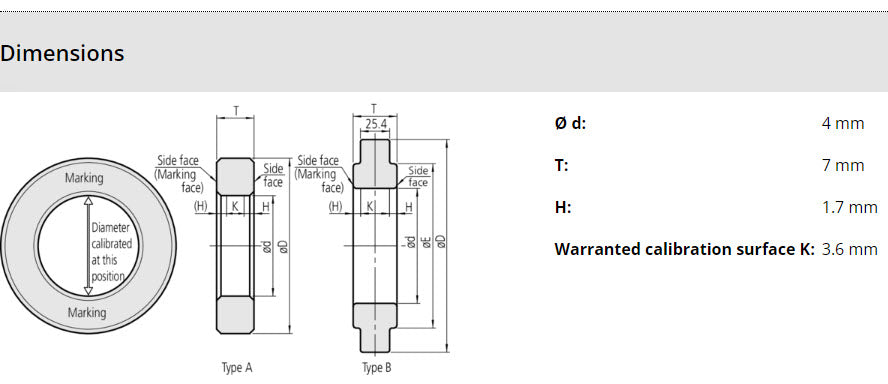

Size Warranted Calibration Surface K(mm)	3.6mm
Distance From the Side Face H	1.7mm
Uncertainty of Marked Diameter Value µm	±1.5µm
Tolerance Between Nominal size and Actual Diameter	±10µm
Thickness	7mm
Calibration Code	CAL37 B2
