177-178 Mitutoyo Steel Setting Ring – 45mm

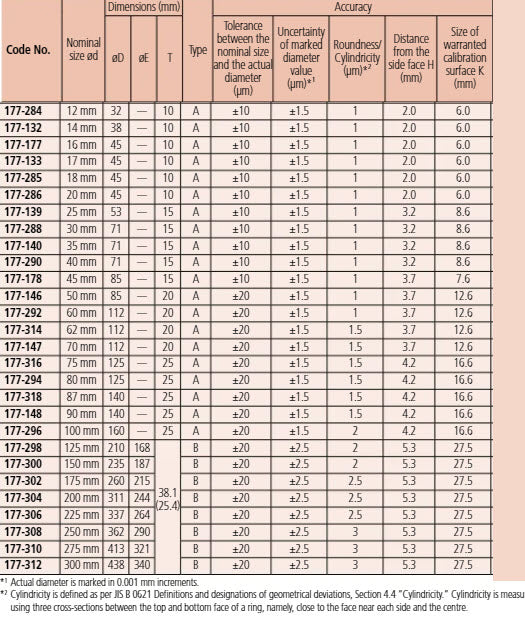

The Mitutoyo 177-178 Steel Setting Ring has the following specifications:
- Nominal Size: 45mm
- Tolerance Between Nominal and Actual Diameter: +/- .010mm
- Uncertainty of Marked Diameter Value: +/- .0015mm
- Roundness/Cylindricity: .001mm

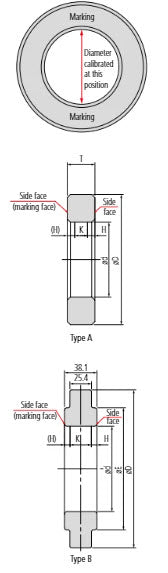

- Distance from the Side Face (H): 3.7mm
- Side of Warranted Calibration Surface (K): 7.6mm
- Outside Diameter: 85mm
- E Dimension for Type B: N/A
- Thickness: 15mm
- Type: A
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
