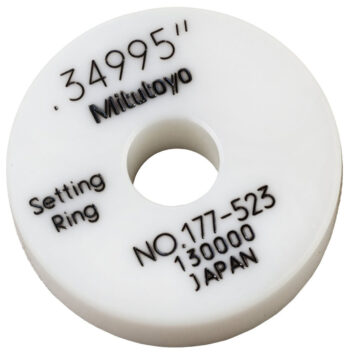

Setting Ring .35" 177-523 Ceramic

Name: Setting Ring .35" 177-523 Ceramic
Brand: Mitutoyo
SKU: 177-523
Price: 250.0 EUR
Availability: InStock

MitutoyoSKU: 177-523

Price:

€250.00 €332.53

Quantity:

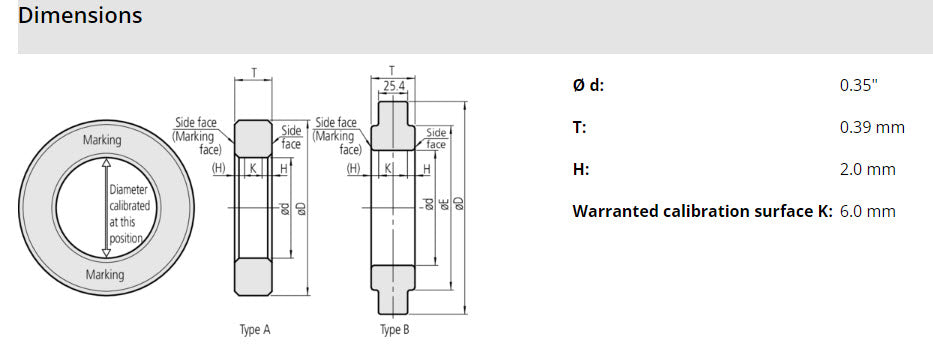

Inch-Metric:	Inch
Nominal size ød:	0.35"
Type:	A
Material:	Ceramic
Delivered:	Without certificate of inspection
Tolerance nominal size / marked diameter:	±0.0004 µm
Uncertainty of marked diameter:	0.00006 µm
Roundness / Cylindricity:	0.00004 µm

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	177-523
Material	["Ceramic"]
Size	.35"
Roundness	.00004"
Size Warranted Calibration Surface K(mm)	.236"
Distance From the Side Face H	.079"
Uncertainty of Marked Diameter Value µm	±.00006"
Tolerance Between Nominal size and Actual Diameter	±.0004"
Thickness	10mm
Calibration Code	CAL37 B2
