Setting Ring 25mm 177-430 Ceramic

Name: Setting Ring 25mm 177-430 Ceramic
Brand: Mitutoyo
SKU: 177-430
Price: 273.75 EUR
Availability: InStock

MitutoyoSKU: 177-430

Price:

€273.75 €375.00

Quantity:

Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
Nominal diameter is marked in 0,001 mm increments
Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	177-430
Measuring Range	25mm
Material	["Ceramic"]
Size	25mm
Roundness	1µm

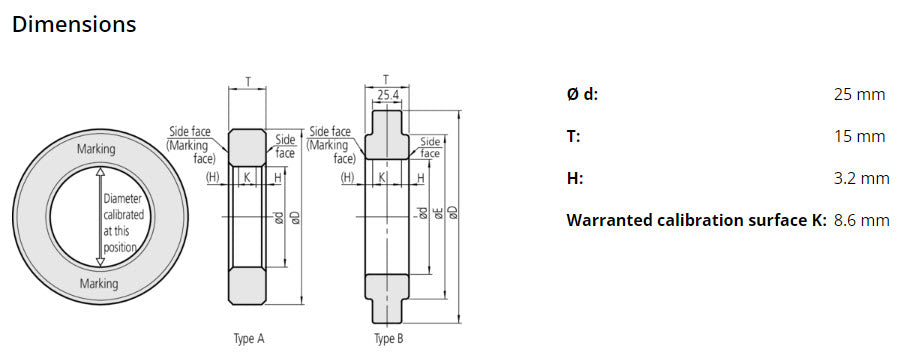

Size Warranted Calibration Surface K(mm)	8.6mm
Distance From the Side Face H	3.2mm
Uncertainty of Marked Diameter Value µm	±1.5µm
Tolerance Between Nominal size and Actual Diameter	±10µm
Thickness	15mm
Calibration Code	CAL37 B2

Inch-Metric:	Metric
Nominal size ød:	25 mm
Type:	A
Material:	Ceramic
Delivered:	Without certificate of inspection
Tolerance nominal size / marked diameter:	±10.0 µm
Uncertainty of marked diameter:	1.5 µm
Roundness / Cylindricity:	1.0 µm
