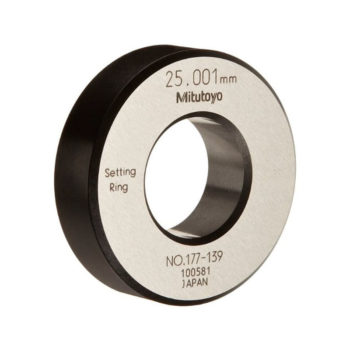

177-139 Mitutoyo Steel Setting Ring – 25mm

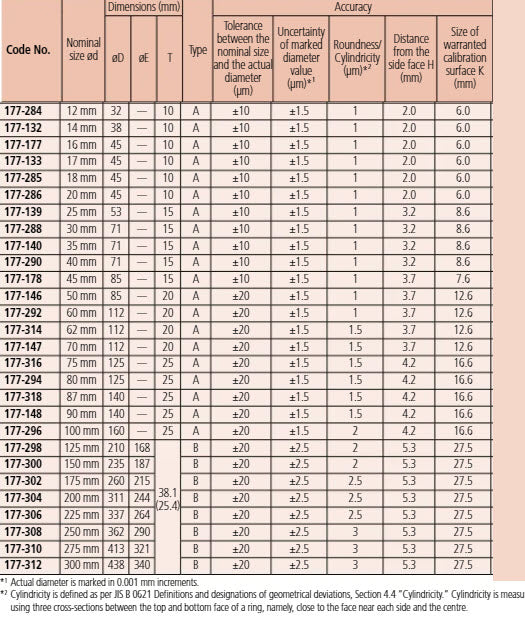

The Mitutoyo 177-139 Steel Setting Ring has the following specifications:
- Nominal Size: 25mm
- Tolerance Between Nominal and Actual Diameter: +/- .010mm
- Uncertainty of Marked Diameter Value: +/- .0015mm
- Roundness/Cylindricity: .001mm

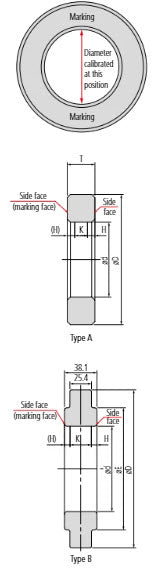

- Distance from the Side Face (H): 3.2mm
- Side of Warranted Calibration Surface (K): 8.6mm
- Outside Diameter: 53mm
- E Dimension for Type B: N/A
- Thickness: 15mm
- Type: A
