Mitutoyo SKU: 177-184
List price: €167.00 Offer price: €129.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

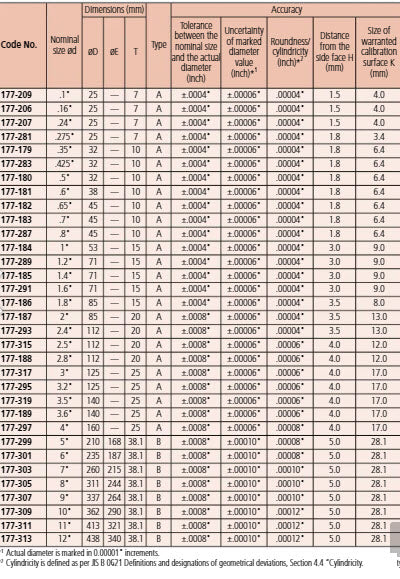

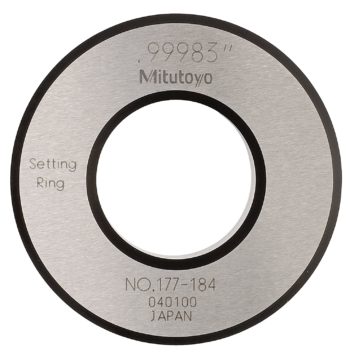

The Mitutoyo 177-184 Steel Setting Ring has the following specifications:

  • Nominal Size: 1.000″
  • Tolerance Between Nominal and Actual Diameter: +/- .0004″
  • Uncertainty of Marked Diameter Value: +/- .00006″
  • Roundness/Cylindricity: .00004″

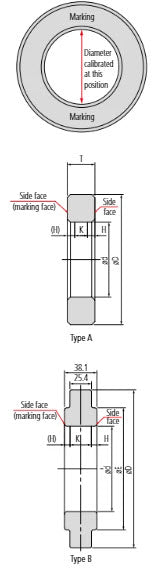

  • Distance from the Side Face (H): 3mm
  • Side of Warranted Calibration Surface (K): 9mm
  • Outside Diameter: 53mm
  • Thickness: 15mm
  • Type: A
