Series TT01 Cap Torque Tester

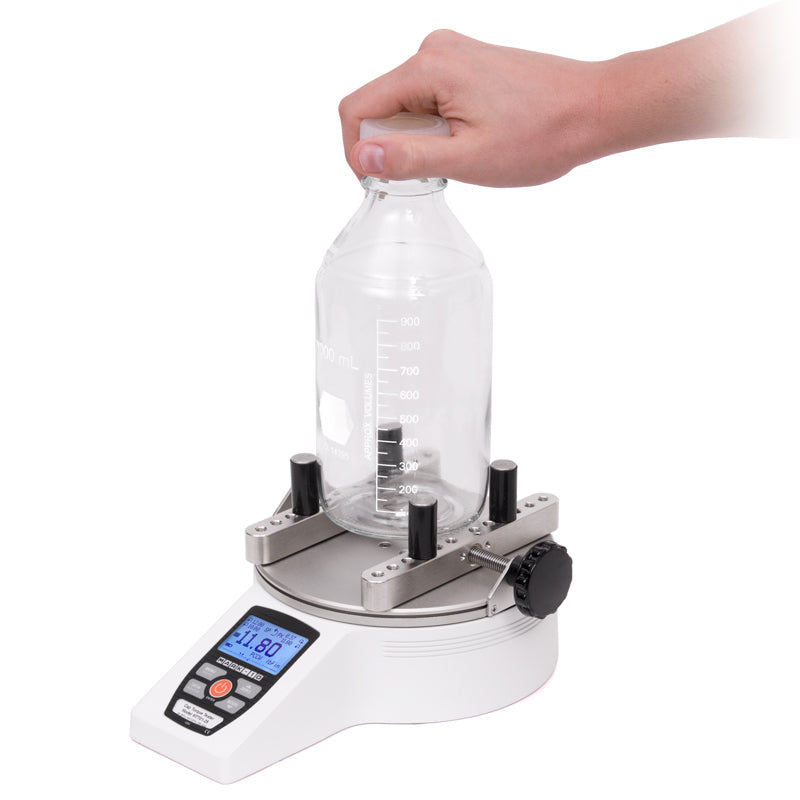

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments. Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration. The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures. Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Specifications
- Accuracy: ±0.3% of full scale
- Sampling rate: 7,000 Hz
- Bottle diameter range: Ø0.5 – 7.5 in [12.7 – 189.4 mm]
- With CT001 optional jaws: Ø0 – 5.9 in [0 – 149.9 mm]

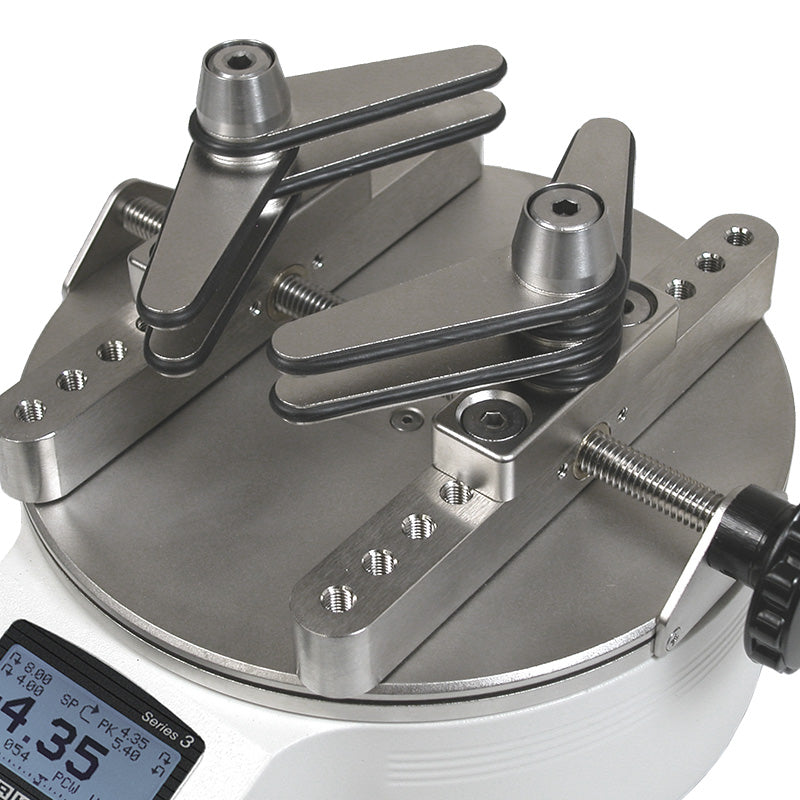

- With CT003 optional jaws: Ø0 – 4.6 in [116.8 mm]
- Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
- Battery life: Backlight on: up to 7 hours of continuous use
- Backlight off: up to 24 hours of continuous use
- Measurement units: ozFin, lbFin, kgFcm, Nm, Ncm

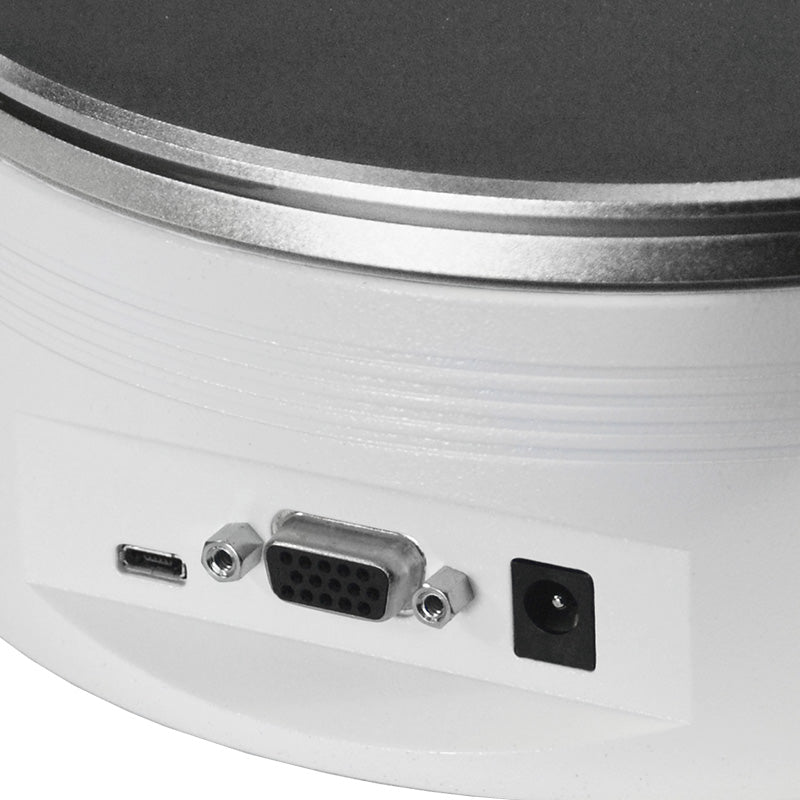

- Output: USB / RS-232: Configurable up to 115,200 baud.
- Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
- Analog: ±1 VDC, ±0.25% of full scale at capacity,
- General purpose: Three open drain outputs, one input.
- Set points: Three open drain lines.
- Configurable settings: Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
- Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
- Weight: 8.4 lb [3.8 kg]
- Shipping weight: 10.2 lb [4.6 kg]
- Environmental requirements: 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
- Warranty: 3 years (see individual statement for further details)
In the Box
- Series TT01 torque testers are shipped include the following accessories:

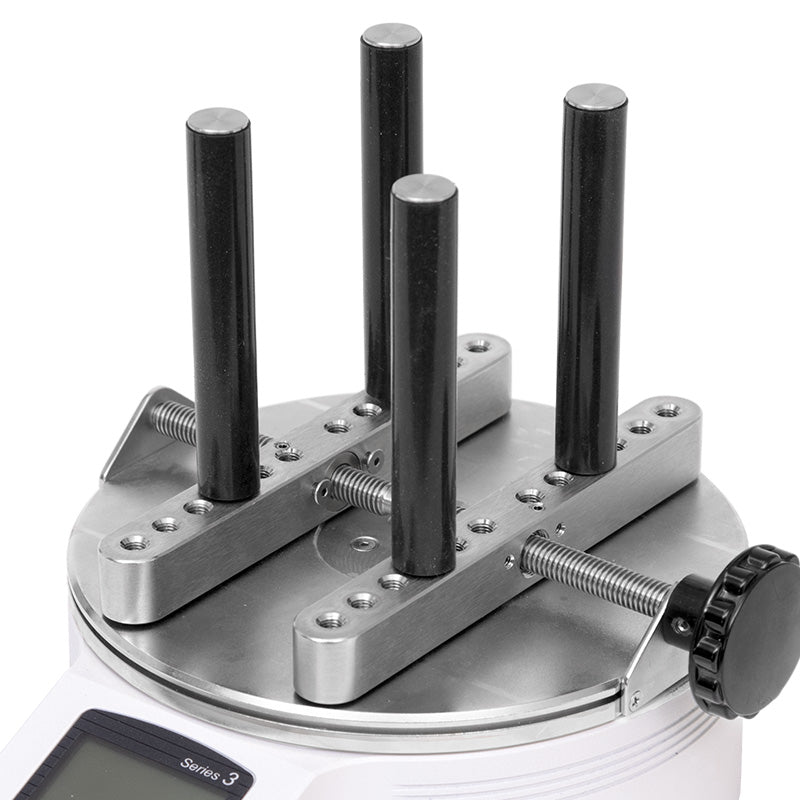

- (4) Sample gripping posts
- (1) USB cable
- (1) AC adapter
- (1) Battery
- (1) Certificate of calibration without data
All images are for representation only.
