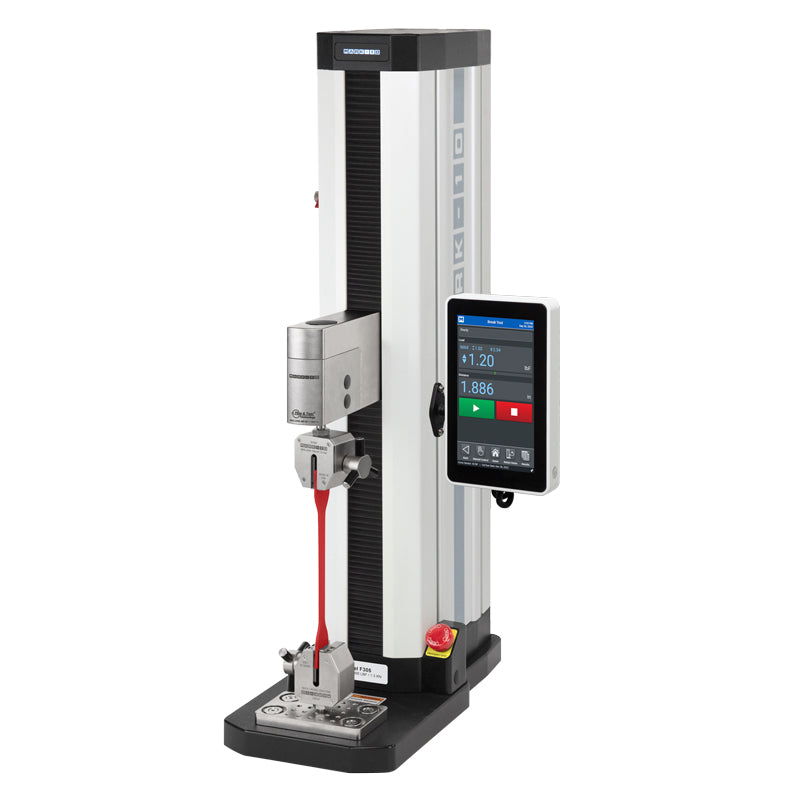

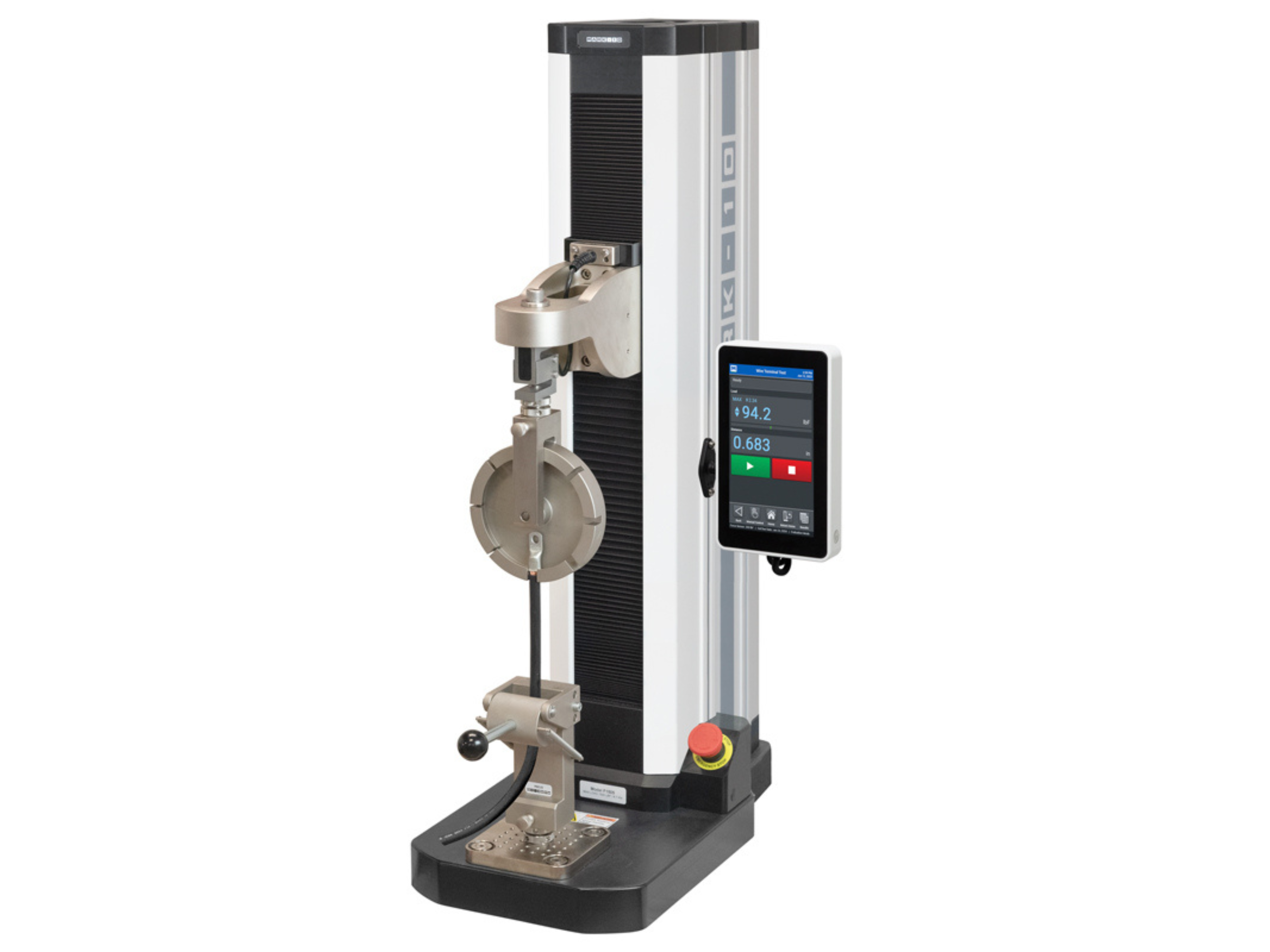

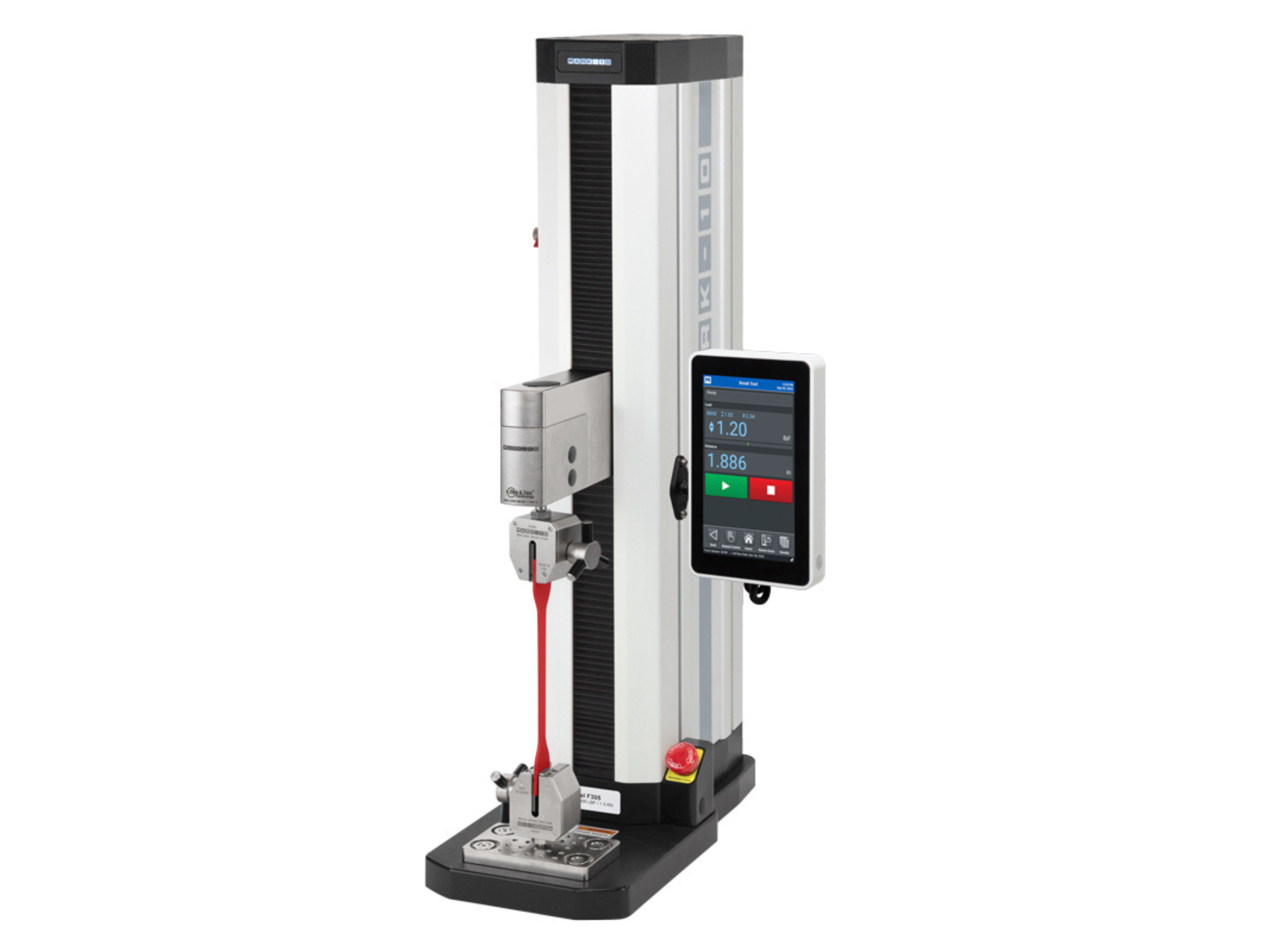

Series F + EasyMESUR® Tension / Compression Force Tester 1500lbF / 6.7 kN F1505S-EMU



Series F + EasyMESUR® Tension / Compression Force Testers

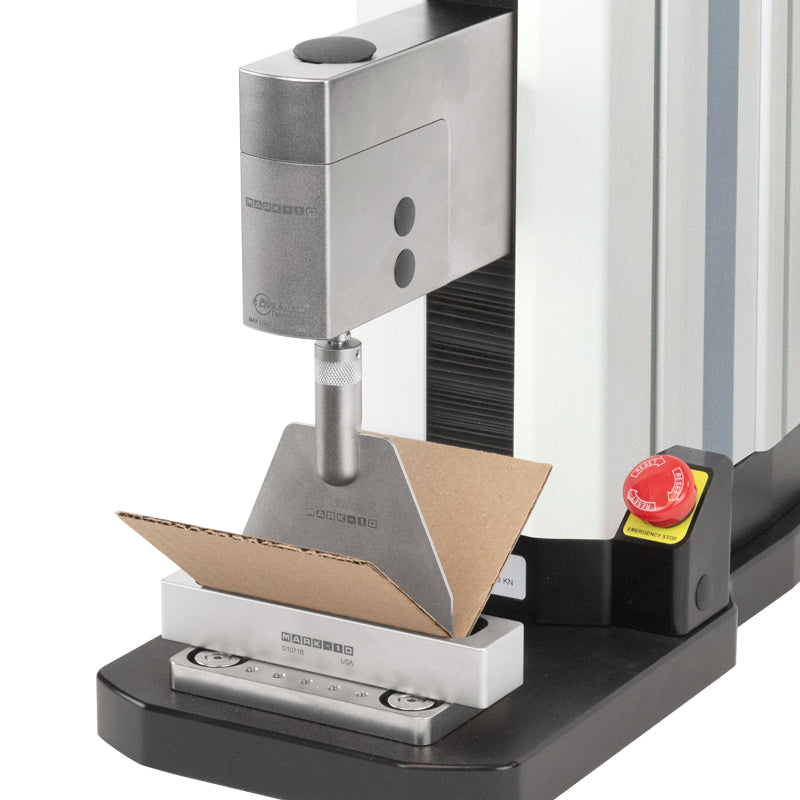

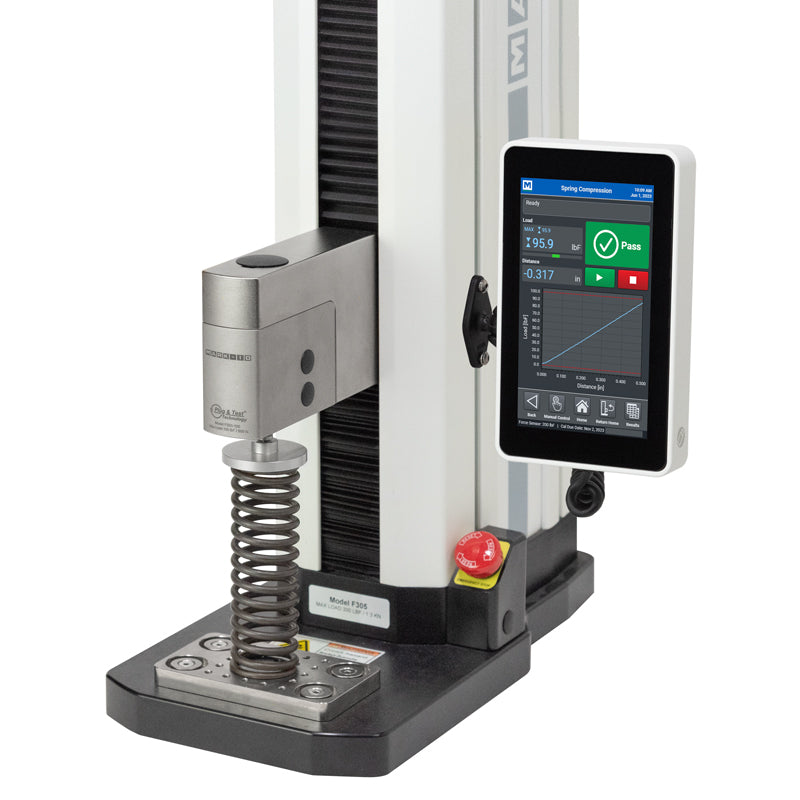

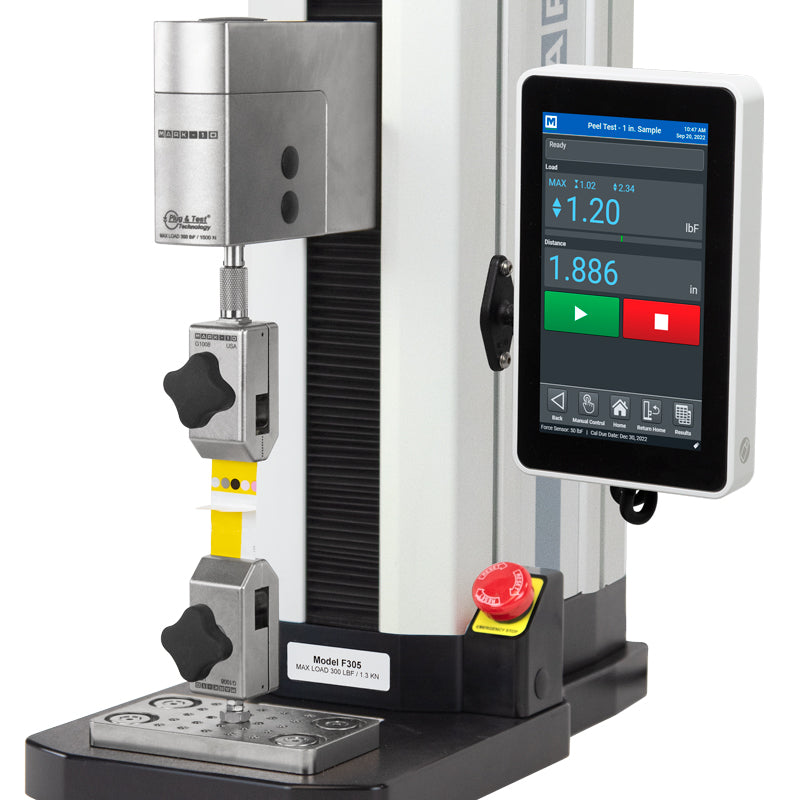

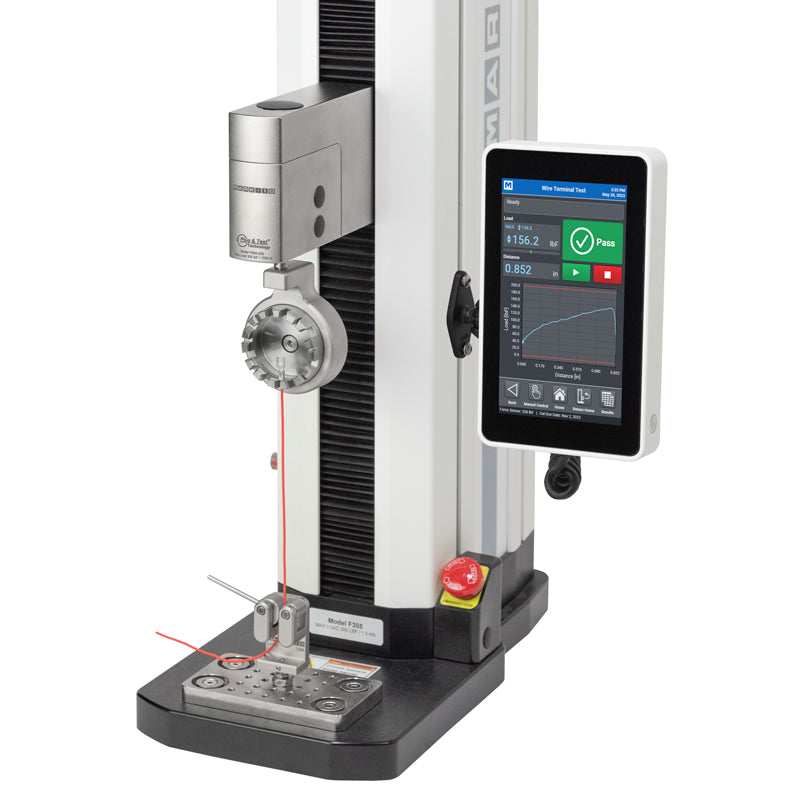

Series F test frames with EasyMESUR® are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.

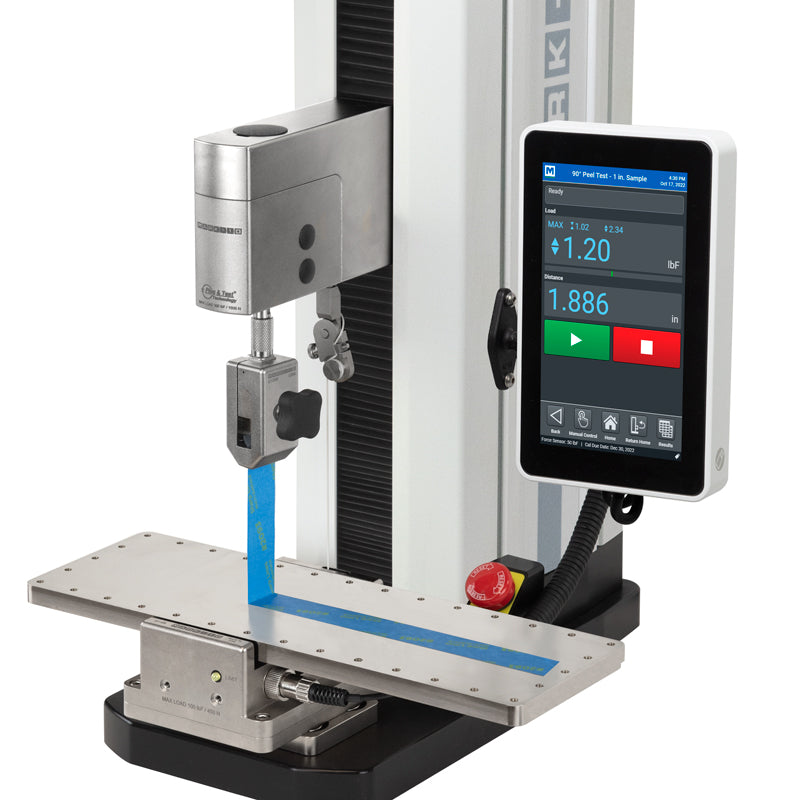

Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface – no PC or force gauge required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®’s serial command library.

Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

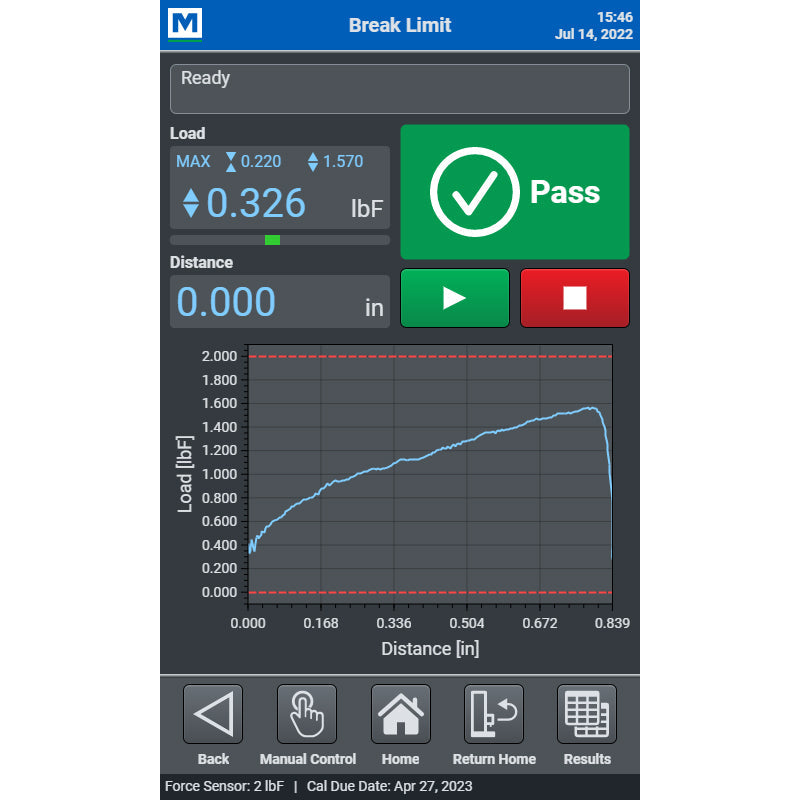

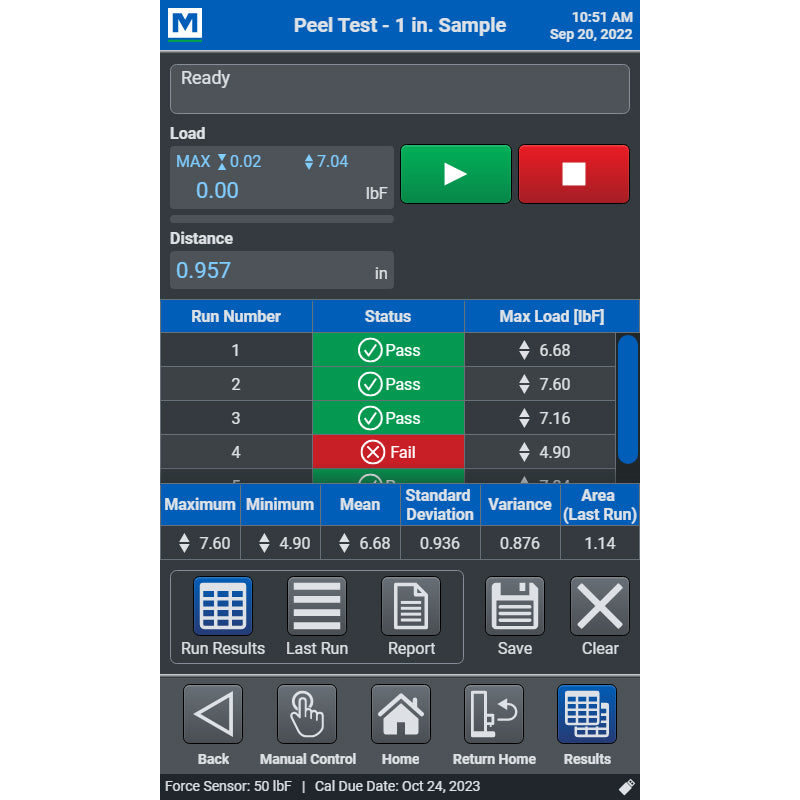

Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.

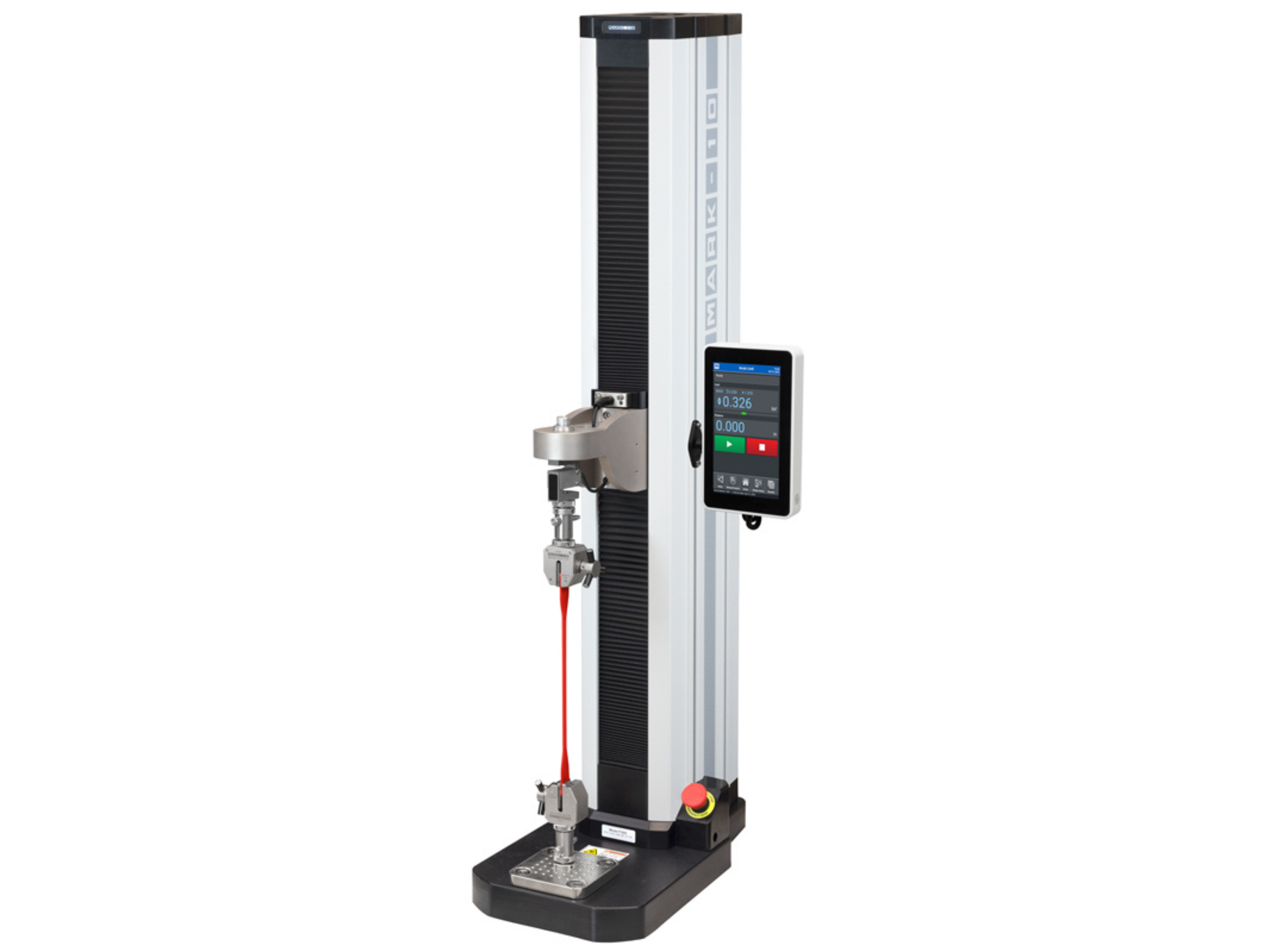

Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.

Click to View Product Brochure

Click for Series ESM / EasyMESUR® Comparison Chart

Click for IntelliMESUR® / EasyMESUR® Comparison Chart

*Please note this item is the base unit only and may require additional modules and accessories dependant on the exact measurement requirement. Please see related items or contact our sales team who will assist you with selecting the correct modules and accessories required.

Included with base system.

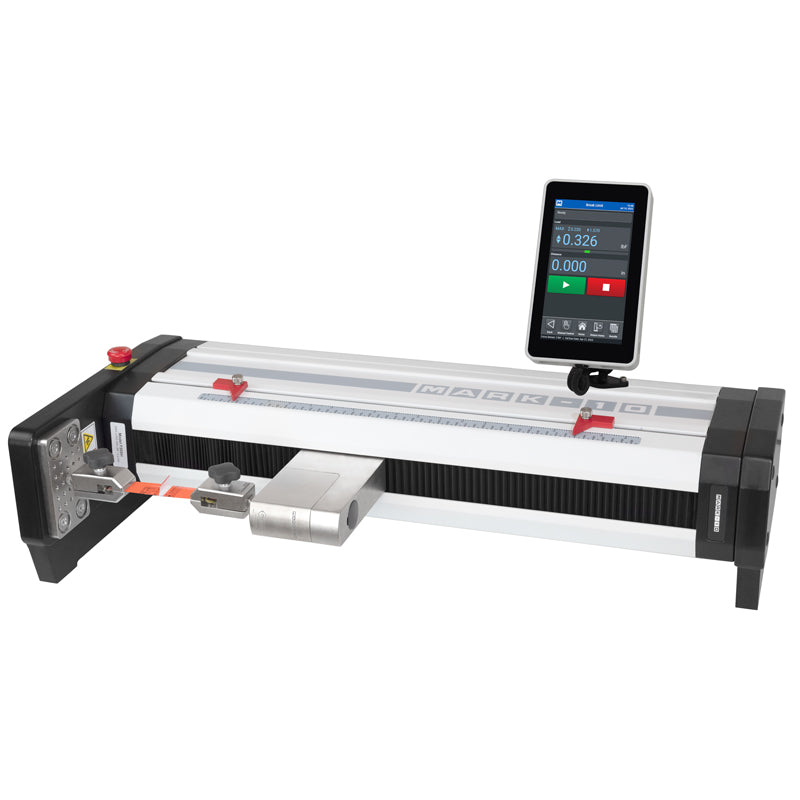

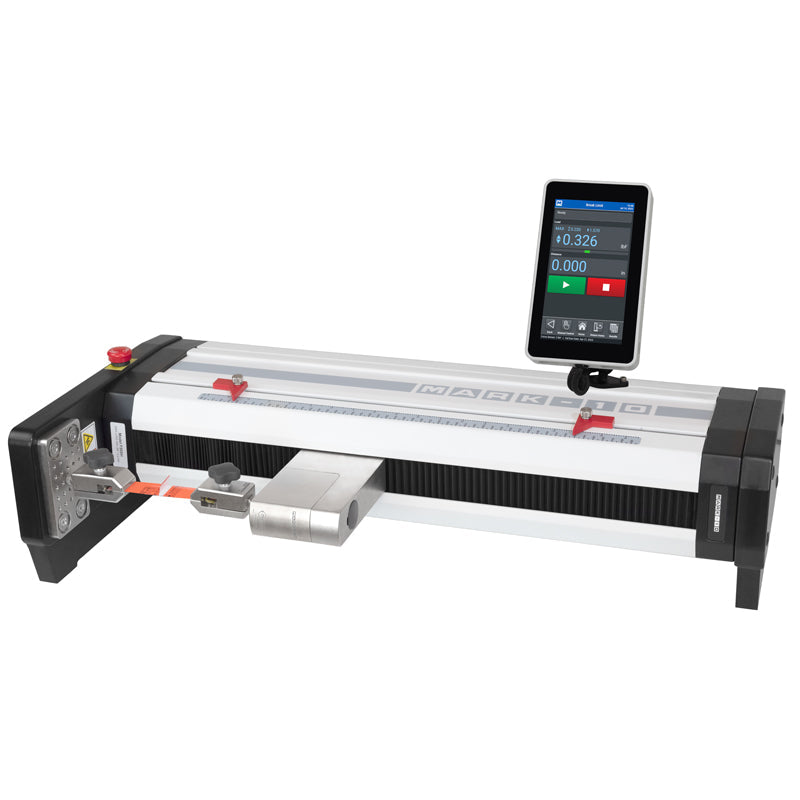

F105 / F305 / F505 / F505H

• Control panel with mounting hardware
• #10-32M medium hook
• 5/16-18M large hook
• #10-32F 2" diameter compression plate
• #10-32 F/F coupler
• Adapter, 5/16-18M to #10-32F
• Set screw, #10-32 x 3/4"
• Hex nut, #10-32 (2)
• Power cord
• Allen wrench set

F755 / F755S / F1505 / F1505S

• Control panel with mounting hardware
• Eye end kit for base
• Lock ring for eye end (2)
• Spanner wrench (2)
• Power cord
• Allen wrench set
