A gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.
Series 516-984-10 Metric 1mm Base Steel Gauge Block Sets 1.001mm-1.009mm x .001mm
| Inch-Metric: |
Metric
|
| Type of Certificate: |
Inspection certificate
|
| Delivered: |

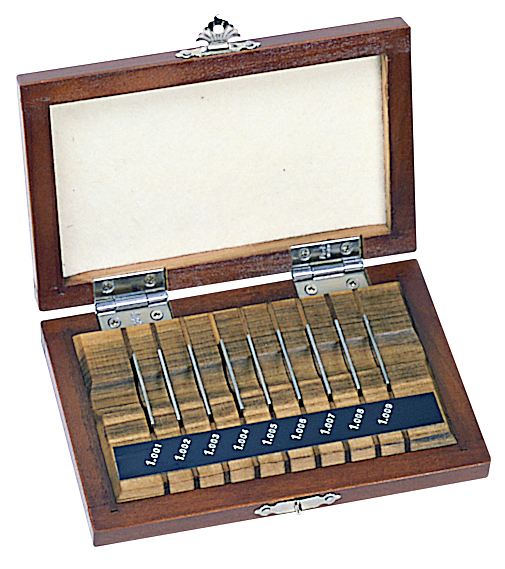

In a wooden case with certificate of inspection
|
| Accuracy: |

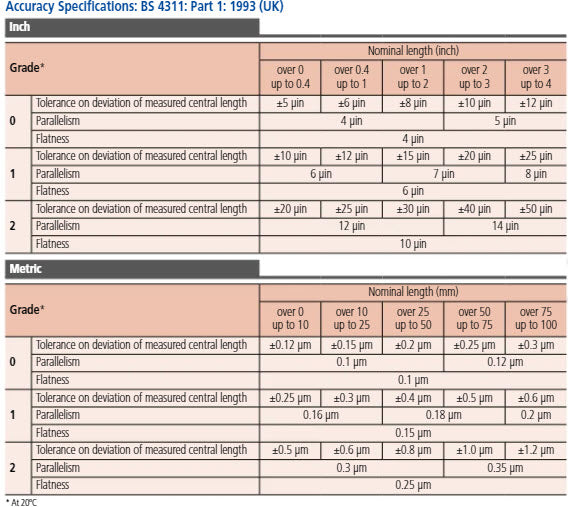

EN ISO 3650
|
| Grade: |
2
|
| Material: |
Steel
|
| Set configuration: |
1,001-1,009 mm (0,001 mm step / 9 blocks)
|
| Delivered: |
In a wooden case
|
| Mass: |
200 g
|
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
