Mitutoyo SKU: 126-141
List price: €511.00 Offer price: €396.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Mitutoyo; Thread Micrometer

This Screw Thread Micrometer has a fixed anvil, offering the following benefits:

  • Fixed anvil type.
  • It directly indicates screw pitch diameter, meaning no need for calculation.

All images are for representation only.

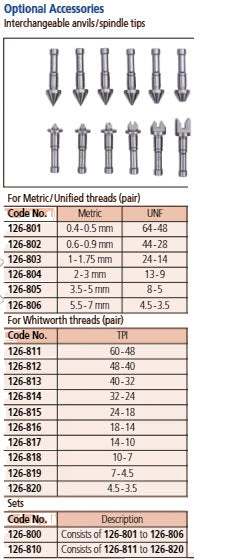

This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

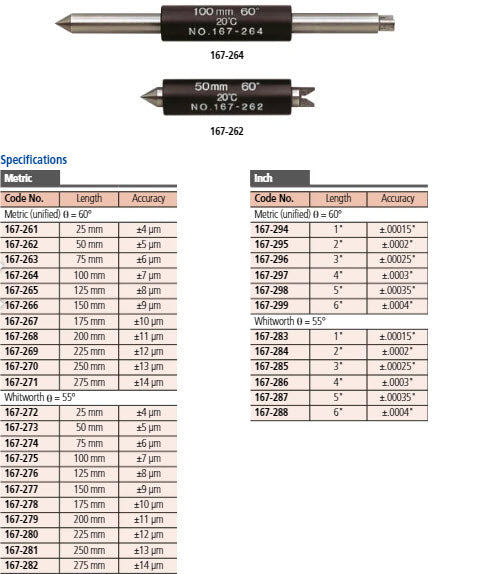

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.
Specification
Digital/Analog:
Analog
Delivered:

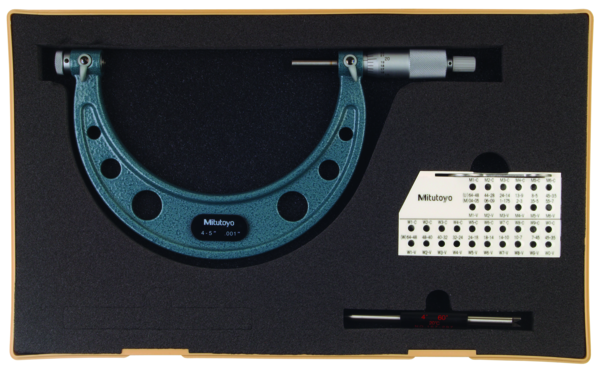

Including box, spanner, setting standard 60° (inch)
Inch-Metric:
Inch
Range:
4 - 5 "
Graduation:
0,001"
Spindle feed error:
0.00015 inch
Measuring face:
Interchangeable anvil/spindle inserts (optional)
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
530 g
