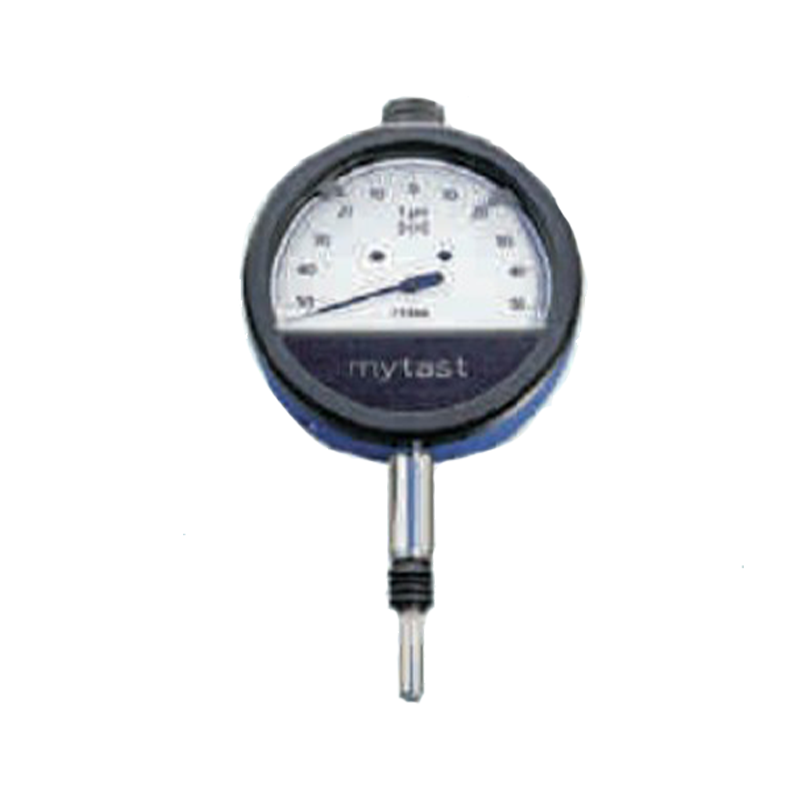

Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000
Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000
Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000
Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000
Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000
Roll over image to zoom in Click on image to zoom
Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000

Schwenk Precision pointer mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 610 00000

Schwenk SKU: 61000000
Price: €200.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Brand: SCHWENK
Length measuring range: 0,1 mm
Type: mytast
Scale value: 0,001 mm
Free stroke: 3,0 mm
DIN: 879

Application
For measuring lengths. Ideal for comparative measuring instruments and flatness and straightness measurements.

Execution

  • Impact-protected thanks to mechanically decoupled measuring mechanism
  • Compact dimensions, only 18.6 mm high
  • 7 bearing jewels for highest accuracy
  • Ball-guided probe rod with bellows for protection against oil and other contaminants
  • Clamping shank diameter 8 mm h6
  • Adjustable tolerance marks

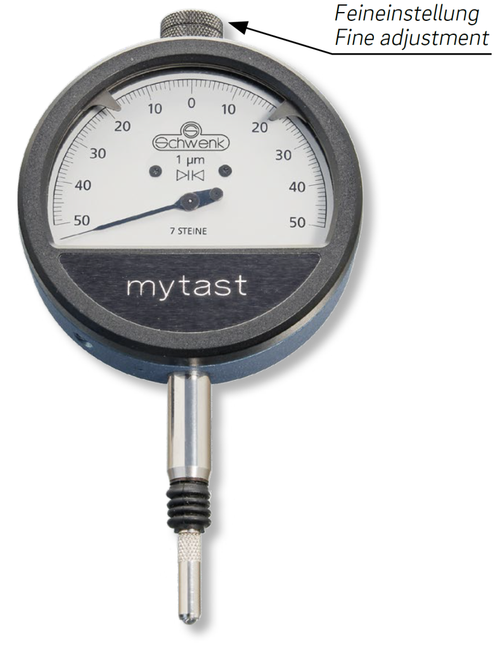

  • Fine adjustment screw accessible from above, lockable
  • Accuracy according to DIN 879-1

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
