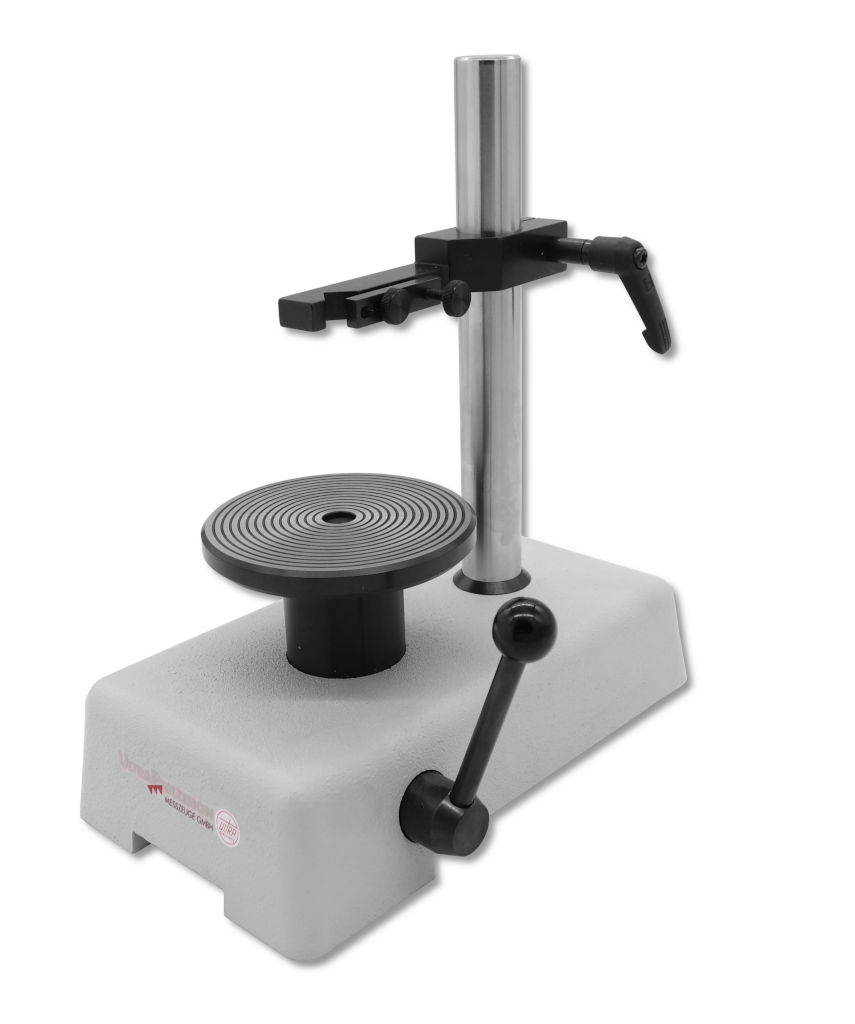

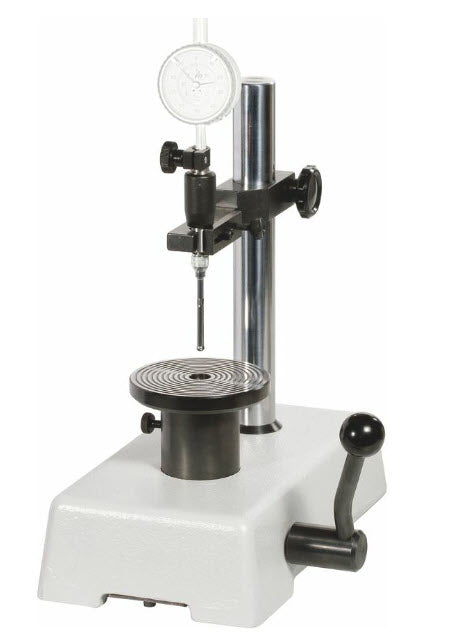

Schwenk OSIMESS 62900016 MEASURING STAND OSM 6 Height continuously adjustable up to 130 mm. Working stroke of the table max. 40 mm, suitable for workpieces up to Ø 144 mm, maximum working stroke 40 mm, Length 231 mm, Width 120 mm, Height 265 mm

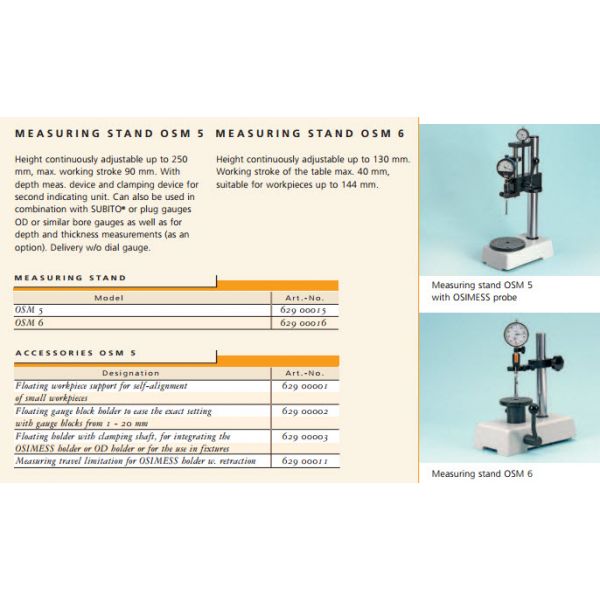

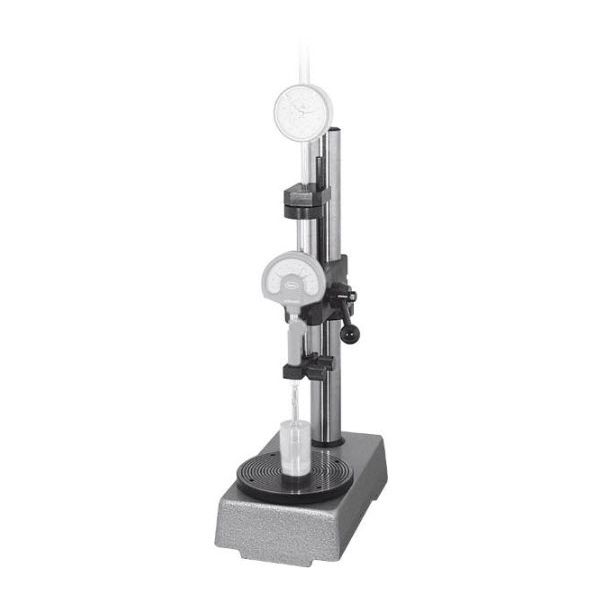

Measuring stands OSM for internal precision measuring instruments General characteristics In combination with the OSIMESS, SUBITO® or OD plug gauge internal precision measuring instruments, the measuring stands OSM 5 and OSM 6 ease the checking of series of similar work pieces, especially with bores with tight tolerances. Advantages - Fast and accurate measuring, since it is not necessary to search for the reversal point - High accuracy through a precise rack guidance - Universal use - Easy handling - Minimal wear and stress for the probe and for the work piece - Centring bore 11H7 in the middle of the table plate for floating work piece support and for floating gauge block holder The OSM 5 has a larger table plate and a larger lift, so that larger work pieces can also be measured. The OSM 5 can also be used to measure depth and thickness. Accessories OSM 5 - floating holder - clamping unit OSM 5 to clamp SUBITO® and OD holders - measuring travel limitation for the OSIMESS holder with retraction in order to minimise wear and stress for the probe and for the work piece Further accessories OSM 5 and OSM 6 Floating work piece support Due to the floating work piece support, the bore axis is aligned automatically to the measuring axis, which is especially useful when measuring small and light work pieces. Floating gauge block holder The floating gauge block holder is useful for setting intermediate diameters.
