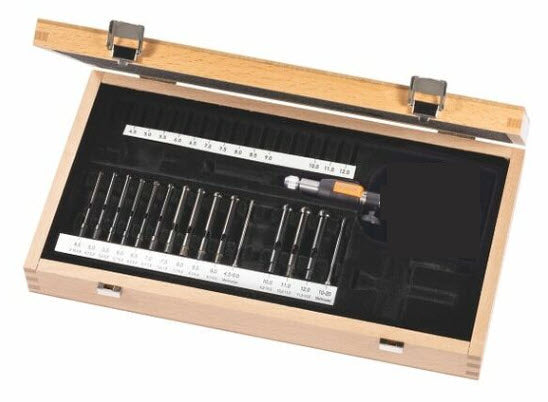

Schwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not supplied
Schwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not supplied
Schwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not supplied
Roll over image to zoom in Click on image to zoom
Schwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not suppliedSchwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not suppliedSchwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not supplied

Schwenk OSIMESS 628 00003 Split Ball Bore Gauge Sets for Blind Bores Nominal range 13-20mm effective range 12,20 - 20,60mm number of probes 8, Holder with retraction Model OS, Hard Chromed, Indicator or Rings not supplied

Schwenk SKU: 628 00003
Price: €813.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

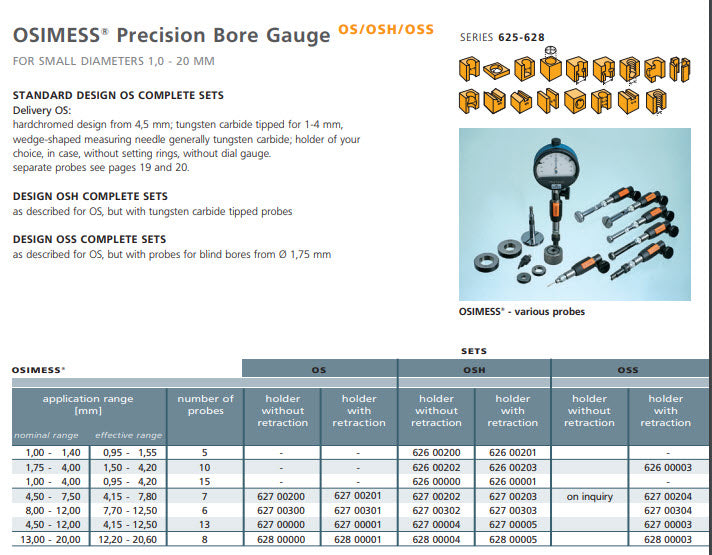

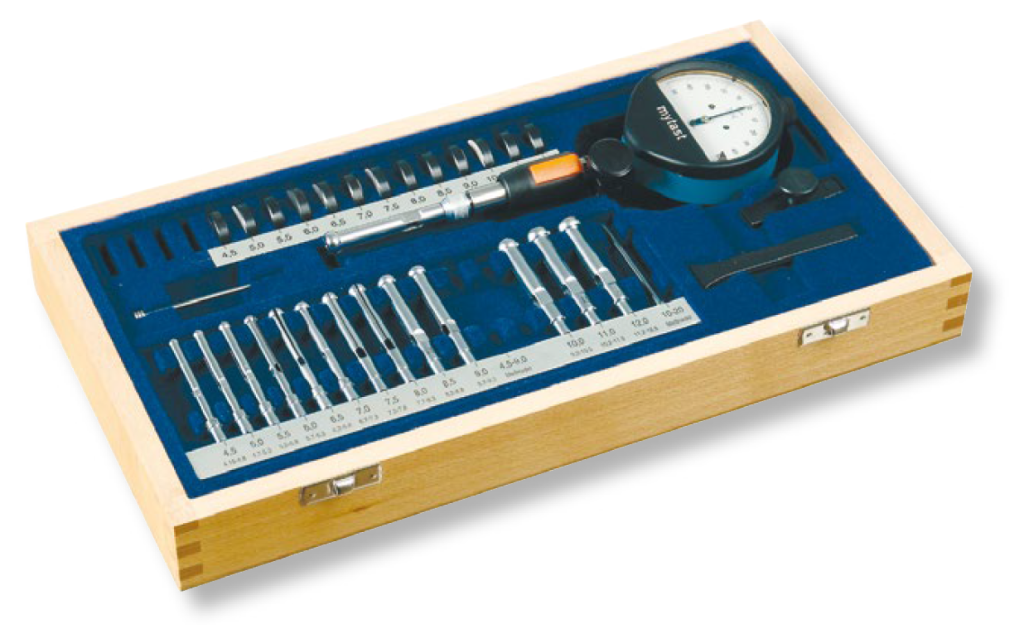

Split-ball probes OSIMESS For fast manual measuring of bores with Ø from 1,0 to 40 mm. Modular system with one instrument holder which can quickly be adapted to the diameter range required with exchangeable split-ball probes and measuring needles. The deviation of the measuring travel is via a precisely manufactured wedge needle out of tungsten carbide. The three basic designs are hard chromed, alternatively carbide-tipped or for blind bores. Cost-effective measuring instrument for small diameters Various accessories Customized designs available
Schwenk OS hard chrome design Holder with retraction button 628 00003 (Blind Holes) Split Ball Bore Gauge Sets Nominal range 13,00 - 20,00mm effective range 12,20 - 20,60mm number of probes 8, without indicator or ring gauges

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
