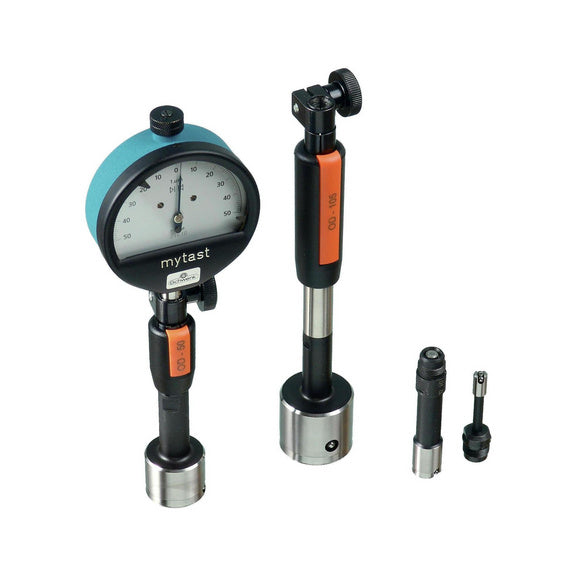

Schwenk 31700500 Indicating plug Gauge OD Range 190.1-200 mm h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version

Application

For quick comparison measurements of bores during series inspections.

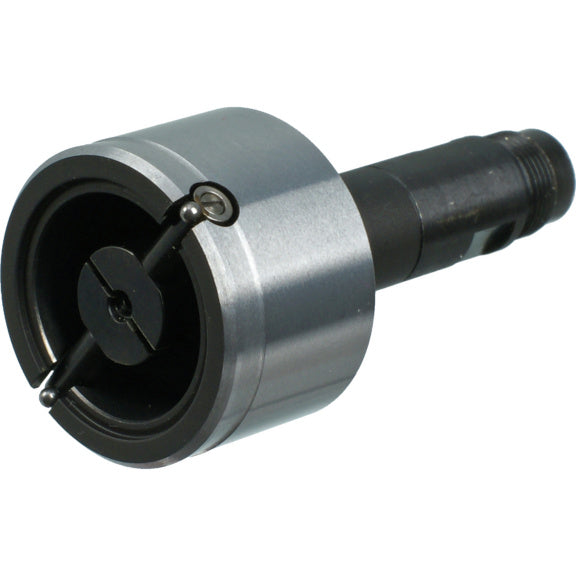

The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

• Cemented carbide measuring contacts and measuring needles (wear-resistant)
• Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
• Standard version

Advantage

• Easy to use
• Minimum measuring times
• Maximum measuring accuracy
• Robust and reliable
• Adapted to the desired bore diameter and tolerance

Please let us know the exact bore tolerance with your order:

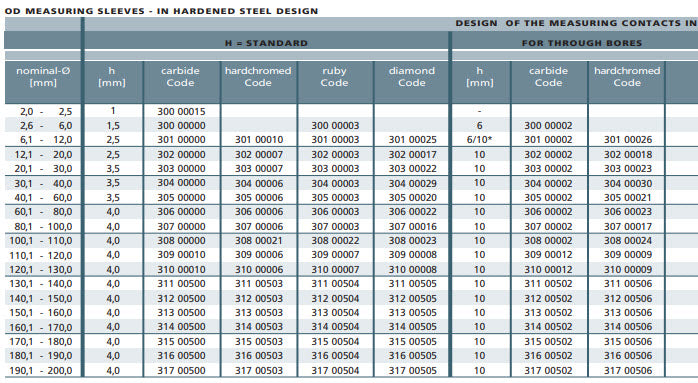

Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
