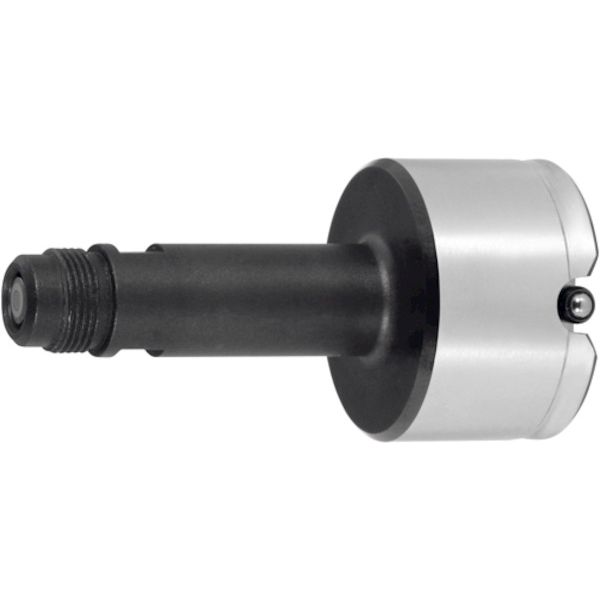

Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version
Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version
Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version
Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version
Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version
Roll over image to zoom in Click on image to zoom
Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole VersionSchwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole VersionSchwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole VersionSchwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole VersionSchwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version

Schwenk 31500501 Indicating plug Gauge OD Range 170.1-180 mm mm h=1.2 Ø, Sleeve Dimension H=55.00mm, Blind Hole Version

Schwenk SKU: 31500501
Price: €1,250.00 Excluding VAT

Application

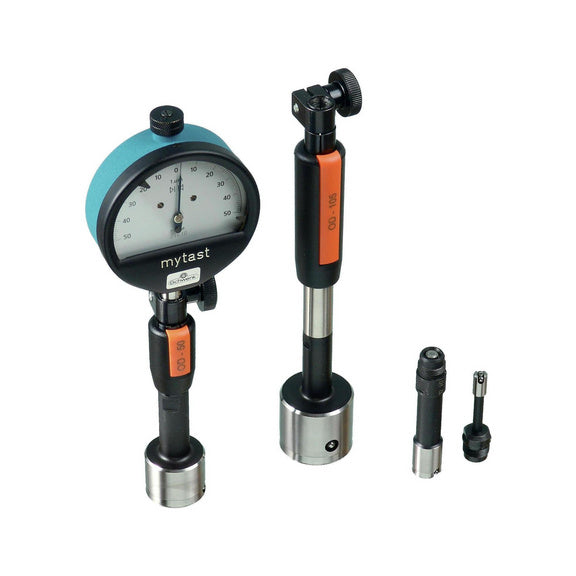

For quick comparison measurements of bores during series inspections.

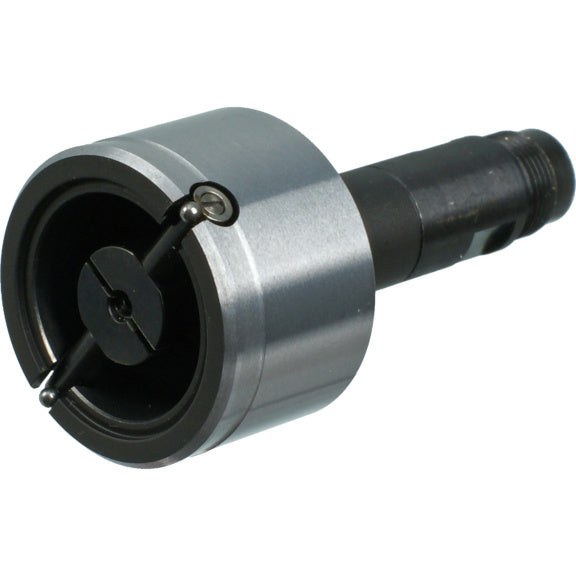

The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

  • Cemented carbide measuring contacts and measuring needles (wear-resistant)

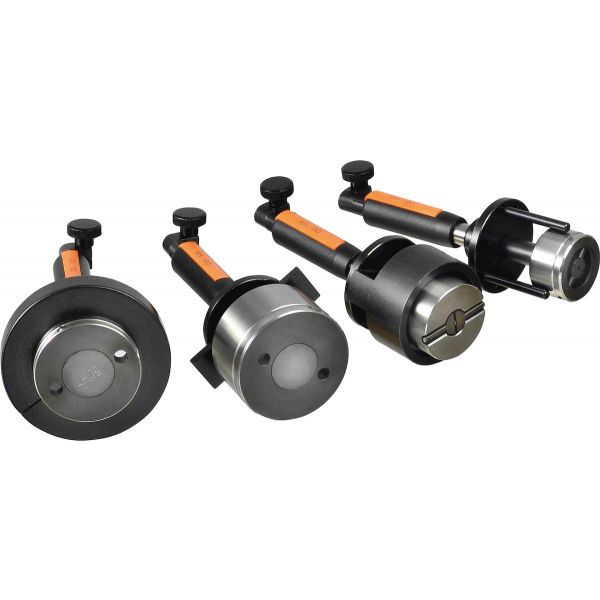

  • Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
  • Version for blind holes with reduced face size

Advantage

  • Easy to use
  • Minimum measuring times
  • Maximum measuring accuracy
  • Robust and reliable
  • Adapted to the desired bore diameter and tolerance

Brand

SCHWENK

Manufacturer Part Number

31500501

Design of measuring contact

Carbide

Min./max. diameter of measuring range

170.1-180 mm

Measurement travel

0.2 mm

Front size

1.2 mm

Repeat accuracy

2 µm

Sleeve length

55 mm

Connection thread

M11 x 0.75

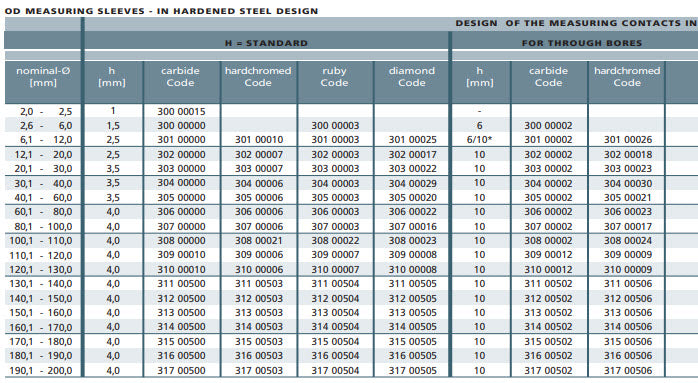

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
