Application
For quick comparison measurements of bores during series inspections.

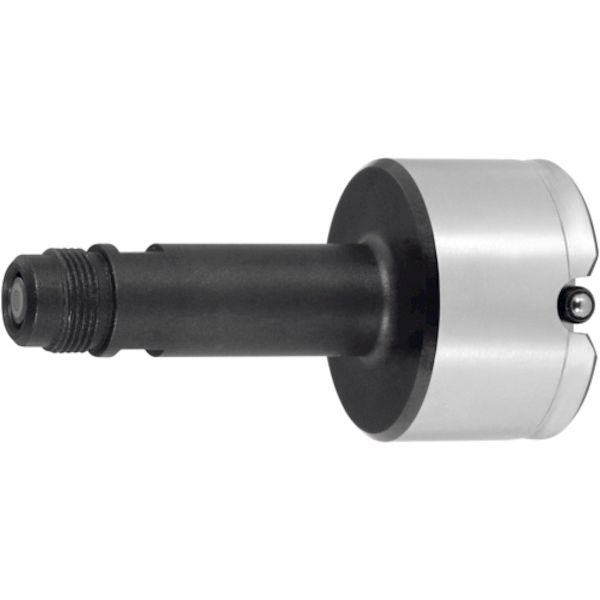

The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.
Execution
- Cemented carbide measuring contacts and measuring needles (wear-resistant)

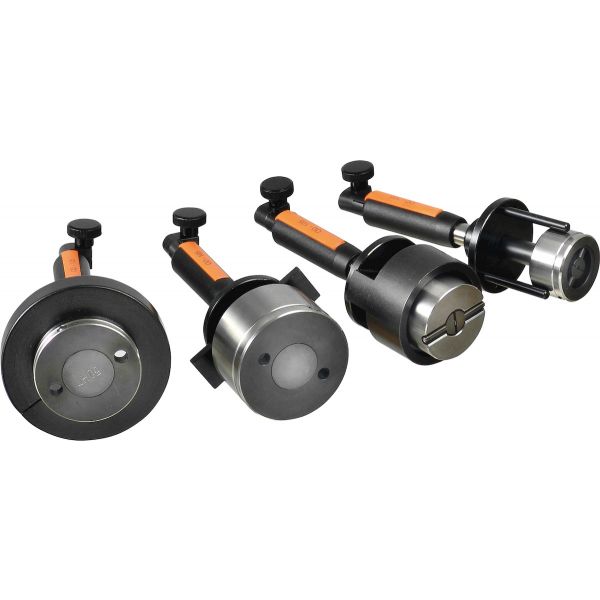

- Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids

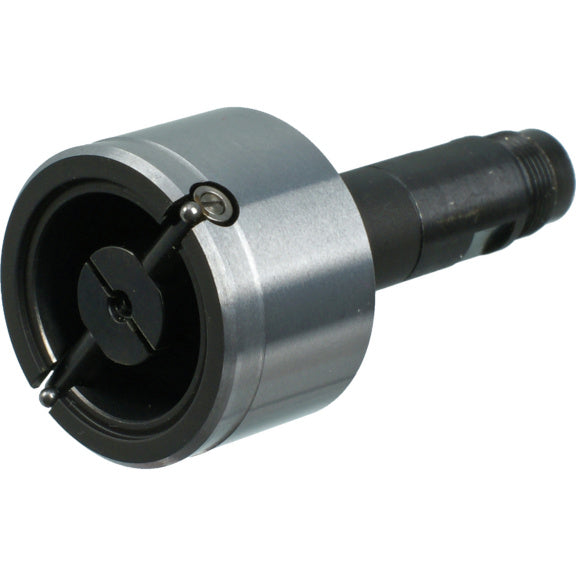

- Version for blind holes with reduced face size
Advantage
- Easy to use
- Minimum measuring times
- Maximum measuring accuracy
- Robust and reliable
- Adapted to the desired bore diameter and tolerance
|
Brand
|
SCHWENK
|
|
Manufacturer Part Number
|
31300501
|
|
Design of measuring contact
|
Carbide
|
|
Min./max. diameter of measuring range
|
150.1-160 mm
|
|
Measurement travel
|
0.2 mm
|
|
Front size
|
1.2 mm
|
|
Repeat accuracy
|
2 µm
|
|
Sleeve length
|
55 mm
|
|
Connection thread
|
M11 x 0.75
|

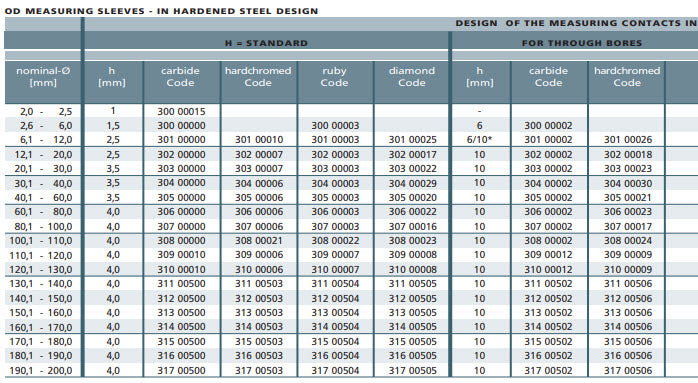

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm

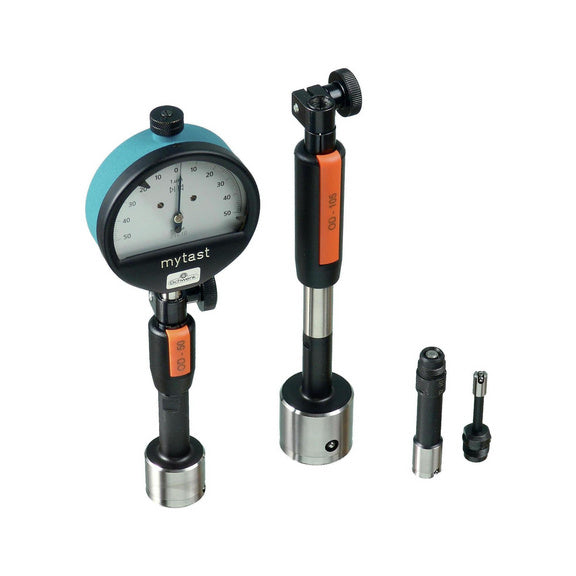

Schwenk 30100001 Indicating plug Gauge OD Range 6.1-12 mm h=1.0 Ø, Sleeve Dimension H=13.5mm, Blind Hole Version
