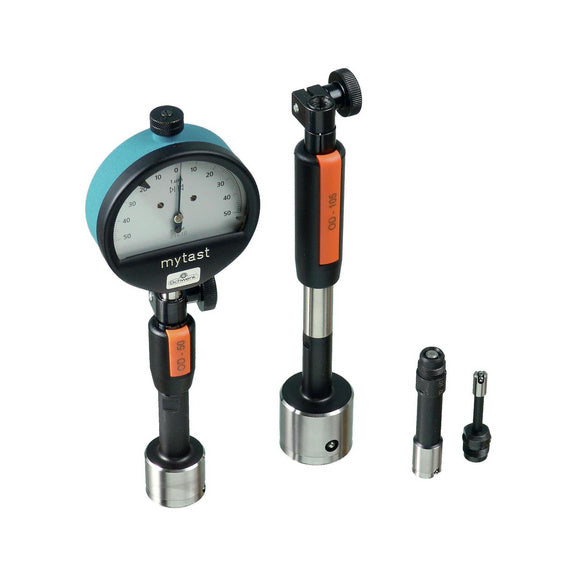

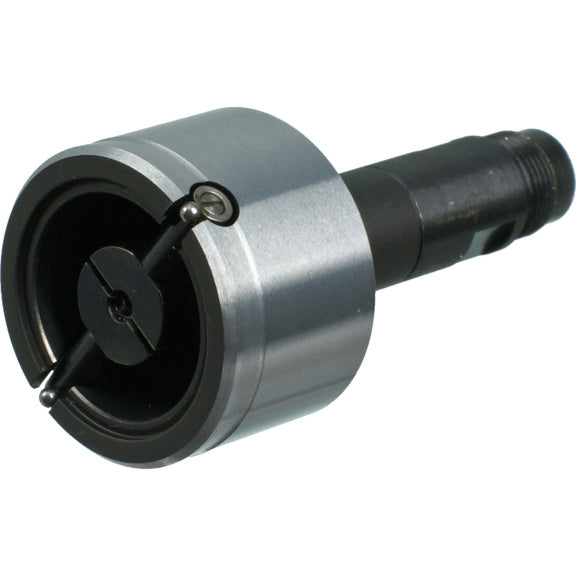

Schwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version
Schwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version
Schwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version
Roll over image to zoom in Click on image to zoom
Schwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard VersionSchwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard VersionSchwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version

Schwenk 313 00500 Indicating plug Gauge OD Range 150,1 - 160,0 h=4 Ø, Sleeve Dimension H=55mm Accuracy=.002mm, Standard Version

Schwenk SKU: 31300500
Price: €880.00 Excluding VAT

Application

For quick comparison measurements of bores during series inspections.
The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

  • Cemented carbide measuring contacts and measuring needles (wear-resistant)
  • Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
  • Standard version

Advantage

  • Easy to use
  • Minimum measuring times
  • Maximum measuring accuracy
  • Robust and reliable
  • Adapted to the desired bore diameter and tolerance

Brand

SCHWENK

Manufacturer Part Number

31300500

Design of measuring contact

Carbide

Min./max. diameter of measuring range

150.1-160 mm

Measurement travel

0.2 mm

Front size

4 mm

Repeat accuracy

2 µm

Sleeve length

55 mm

Connection thread

M11 x 0.75

Please let us know the exact bore tolerance with your order:

Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005

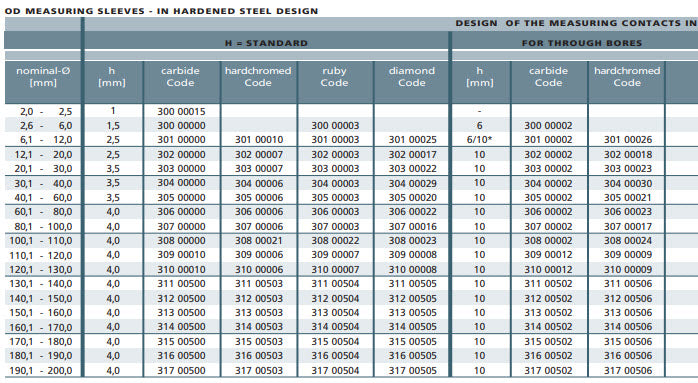

* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
