Schwenk SKU: 30700001
Price: €695.00 Excluding VAT

Application

For quick comparison measurements of bores during series inspections.

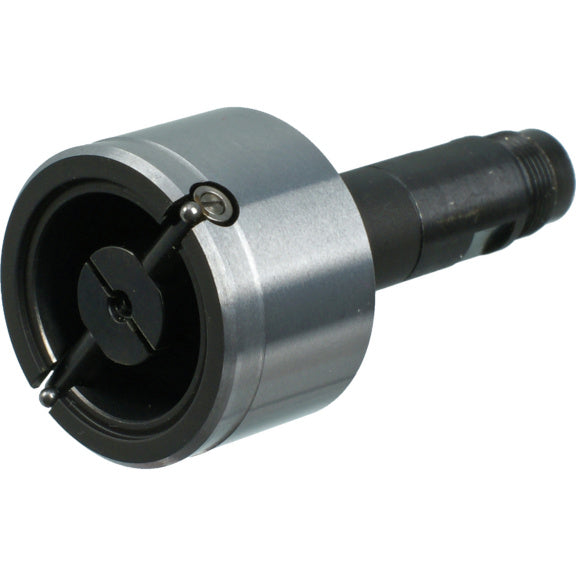

The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

  • Cemented carbide measuring contacts and measuring needles (wear-resistant)
  • Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
  • Version for blind holes with reduced face size

Advantage

  • Easy to use
  • Minimum measuring times
  • Maximum measuring accuracy
  • Robust and reliable
  • Adapted to the desired bore diameter and tolerance

Brand

SCHWENK

Manufacturer Part Number

30700001

Design of measuring contact

Carbide

Min./max. diameter of measuring range

80.1-100 mm

Measurement travel

0.2 mm

Front size

1.2 mm

Repeat accuracy

1 µm

Sleeve length

33 mm

Connection thread

M11 x 0.75

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
