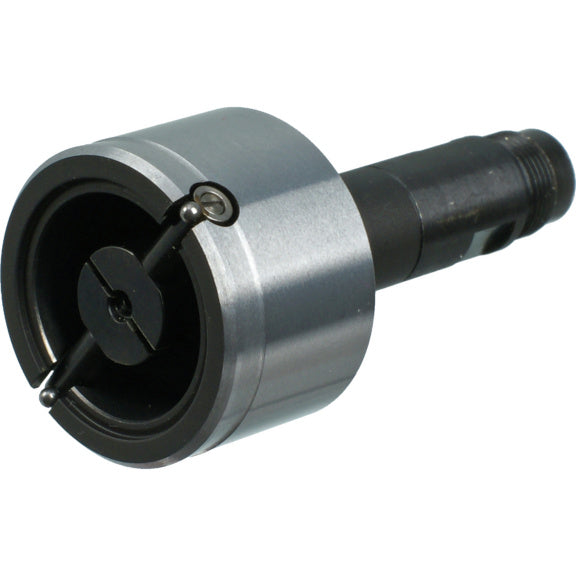

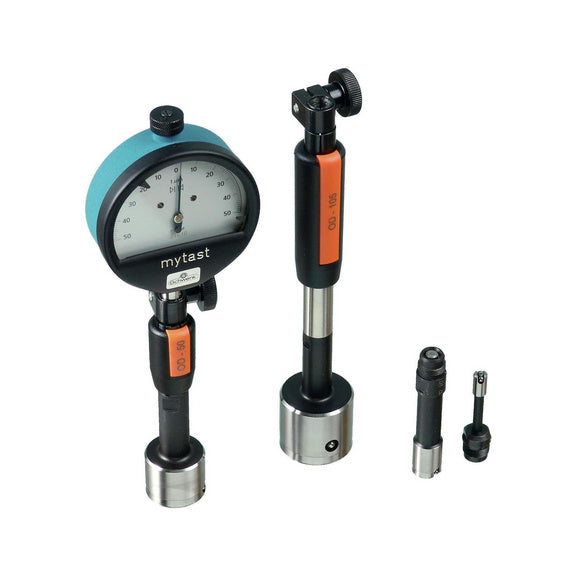

Schwenk SKU: 30600000
Price: €440.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Application

For quick comparison measurements of bores during series inspections.
The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

  • Cemented carbide measuring contacts and measuring needles (wear-resistant)
  • Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
  • Standard version

Advantage

  • Easy to use
  • Minimum measuring times
  • Maximum measuring accuracy
  • Robust and reliable
  • Adapted to the desired bore diameter and tolerance

Brand

SCHWENK

Manufacturer Part Number

30600000

Design of measuring contact

Carbide

Min./max. diameter of measuring range

60.1-80 mm

Measurement travel

0.2 mm

Front size

4 mm

Repeat accuracy

1 µm

Sleeve length

33 mm

Connection thread

M11 x 0.75



Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005

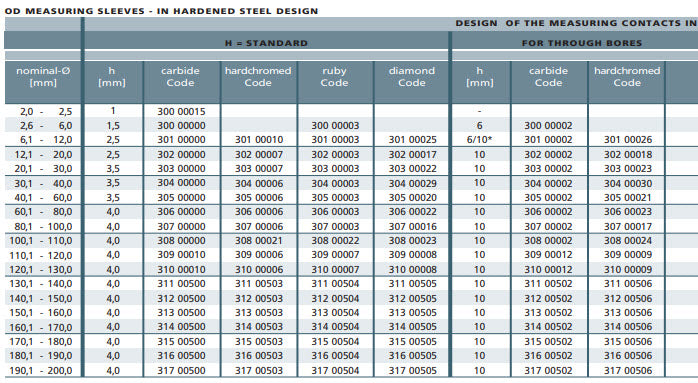

* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
Schwenk 30200000 Indicating plug Gauge OD Range 12,1 - 20mm. h=2.5 Ø, Sleeve Dimension H=15mm Accuracy=.001-.002mm, Standard Version

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
