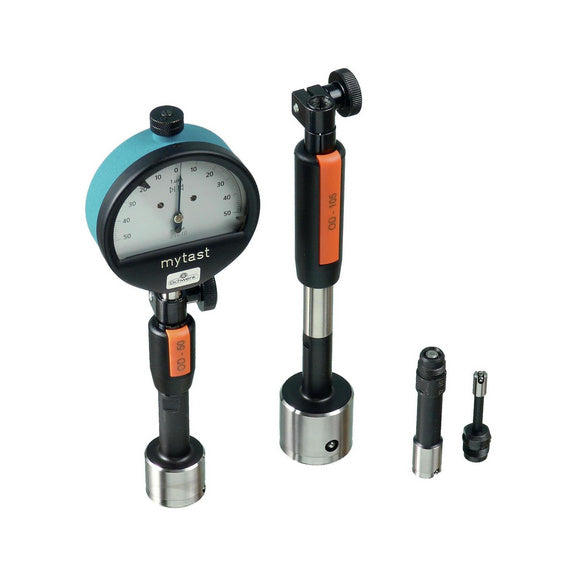

Schwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard Version
Schwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard Version
Roll over image to zoom in Click on image to zoom
Schwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard VersionSchwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard Version

Schwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard Version

Schwenk SKU: 30000015
Price: €610.00 Excluding VAT
Assembly complete set:
Measuring sleeve with two radially movable contact pins, offset by 180° + OD holder + indication unit of choice. Standard measuring range s: 0,2 mm for Ø > 6 mm.
Standard design of the measuring sleeve: hardened steel, alternatively hard chromed, measuring contacts tungsten carbide.
Indicating Plug Gauge OD
FOR MEASURING INTERNAL DIAMETERS, APPLICATION RANGE 2,0 - 800 MM

Brand

SCHWENK

Manufacturer Part Number

30000015

Design of measuring contact

Carbide

Min./max. diameter of measuring range

2.0-2.5 mm

Measurement travel

0.15 mm

Front size

1 mm

Repeat accuracy

1 µm

Sleeve length

17.5 mm

Connection thread

M11 x 0.75

Measuring depth max.

17.5 mm

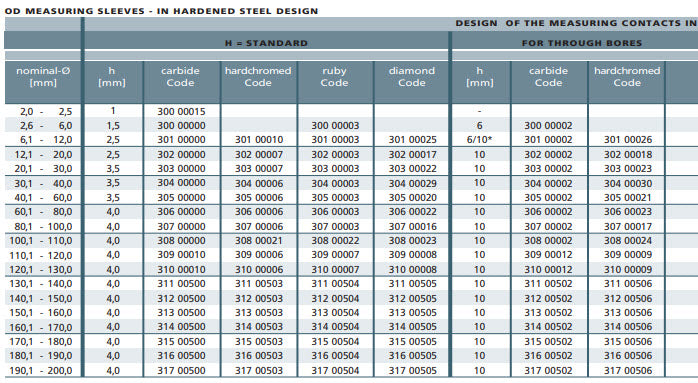

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
Schwenk 30000015 Indicating plug Gauge OD Range 2-3 mm h=1.0 Ø, Standard Version

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
