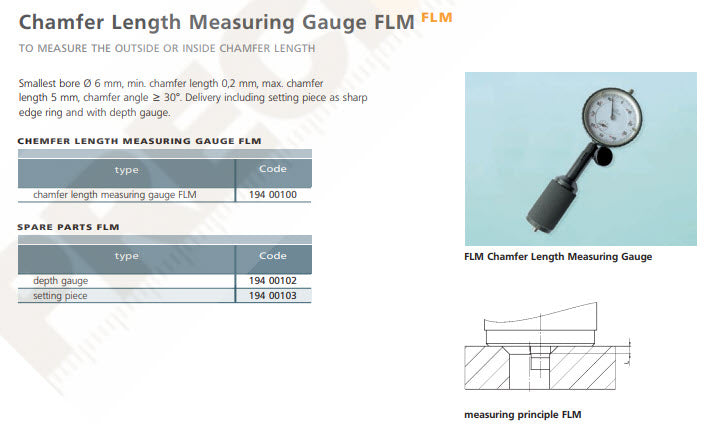

FLM chamfer measuring devices in box including setting gauge and dial gauge
- Works standard
- To measure chamfer length of bore holes and outer diameters
- Measuring faces hardened steel
- For chamfer angle ≥ 30° and bore diameter ≥ 6mm
Delivered in a case including setting gauge and dial gauge
Operation:
- Beginning from the flat surface of the chamfer to be measured, the two-step measuring contact refers to the bore below the chamfer. The larger diameter of the measuring contact (+0.2mm) touches the chamfer – for 45° chamfer this corresponds to a preset of 0.1mm chamfer length.
| Reading: | 0,01mm |
|---|---|
| Measuring range: | 0,2-5mm |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
