Schwenk SU Precision bore gauge.
Self-centring two-point dial bore gauge with spring-loaded centering disc.
Transmission of the contact point travel is via a ring segment.
Fixed, exchangeable measuring pins can be set to different Diameters.
Carbide-tipped point. Gauge holder with hand and ambient temperature protection.
Fixed measuring pins of steel.
Application:
For precise measuring of bores Diameters also can measure roundness, and cylindricity as well as internal profiles
Self-centring two-point dial bore gauge with spring-loaded centering disc.
Transmission of the contact point travel is via a ring segment.
Fixed, exchangeable measuring pins can be set to different Diameters.
Carbide-tipped point. Gauge holder with hand and ambient temperature protection.
Fixed measuring pins of steel.
Application:
For precise measuring of bores Diameters also can measure roundness, and cylindricity as well as internal profiles

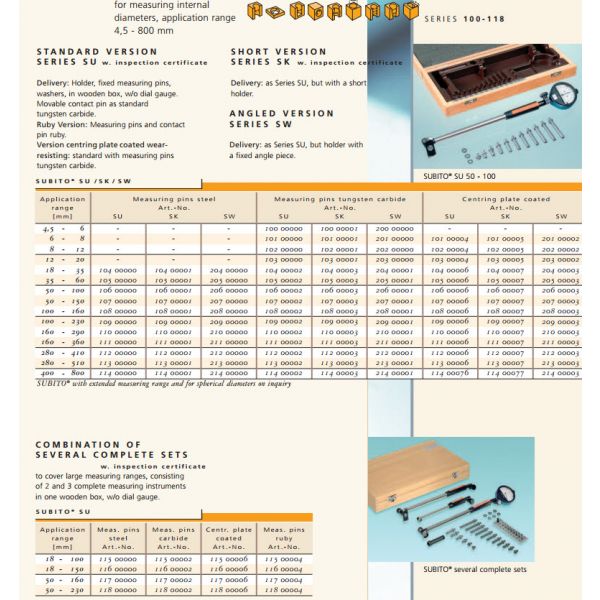

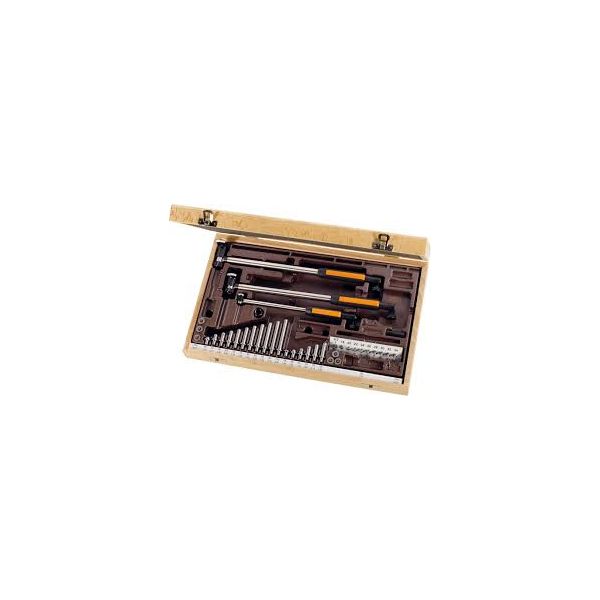

Schwenk 11500000 Dial Bore Gauge sets type SU Metric Range 18-100mm with steel pins, Without Indicator. Measuring depth 110-180mm, 27 anvils
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
