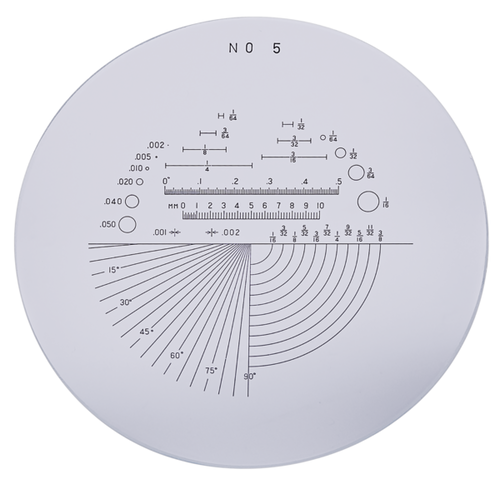

Reticle No. 5 183-145

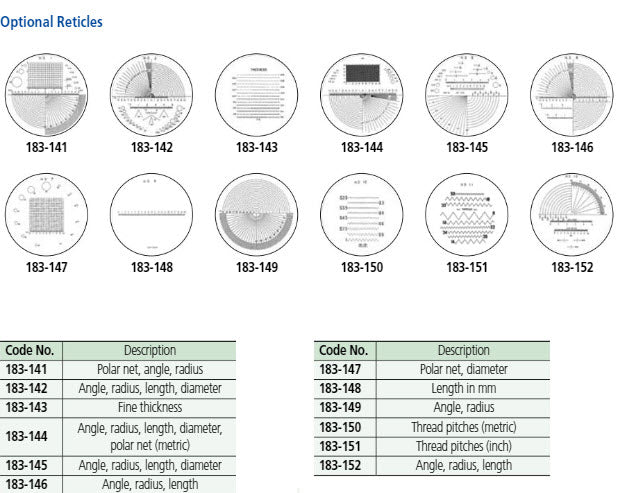

Mitutoyo; Recticle for use with Pocket Comparator - 183-145

Angle: 0.0° - 90.0°, pitch = 5.0°; Scale: 0.0 -10.0 mm (pitch = 0.2 mm); 0.0 - 0.5" (pitch = 5.0"); 1.0/64.0"; 1.0/32.0"; 3.0/64.0"; 3.0/32.0"; 1.0/8.0"; 1.0/4.0"; 3.0/16.0"

Radius: 1/16"; 3/32"; 1/8"; 5/32"; 3/16"; 7/32" 1/4"; 9/32"; 5/16"; 11/32"; 3/8"

Diameter: 2"; 5"; 0.01"; 0.02"; 0.04"; 0.05"; 1/64"; 1/32"; 3/64"; 1/16"

All images are for representation only.
