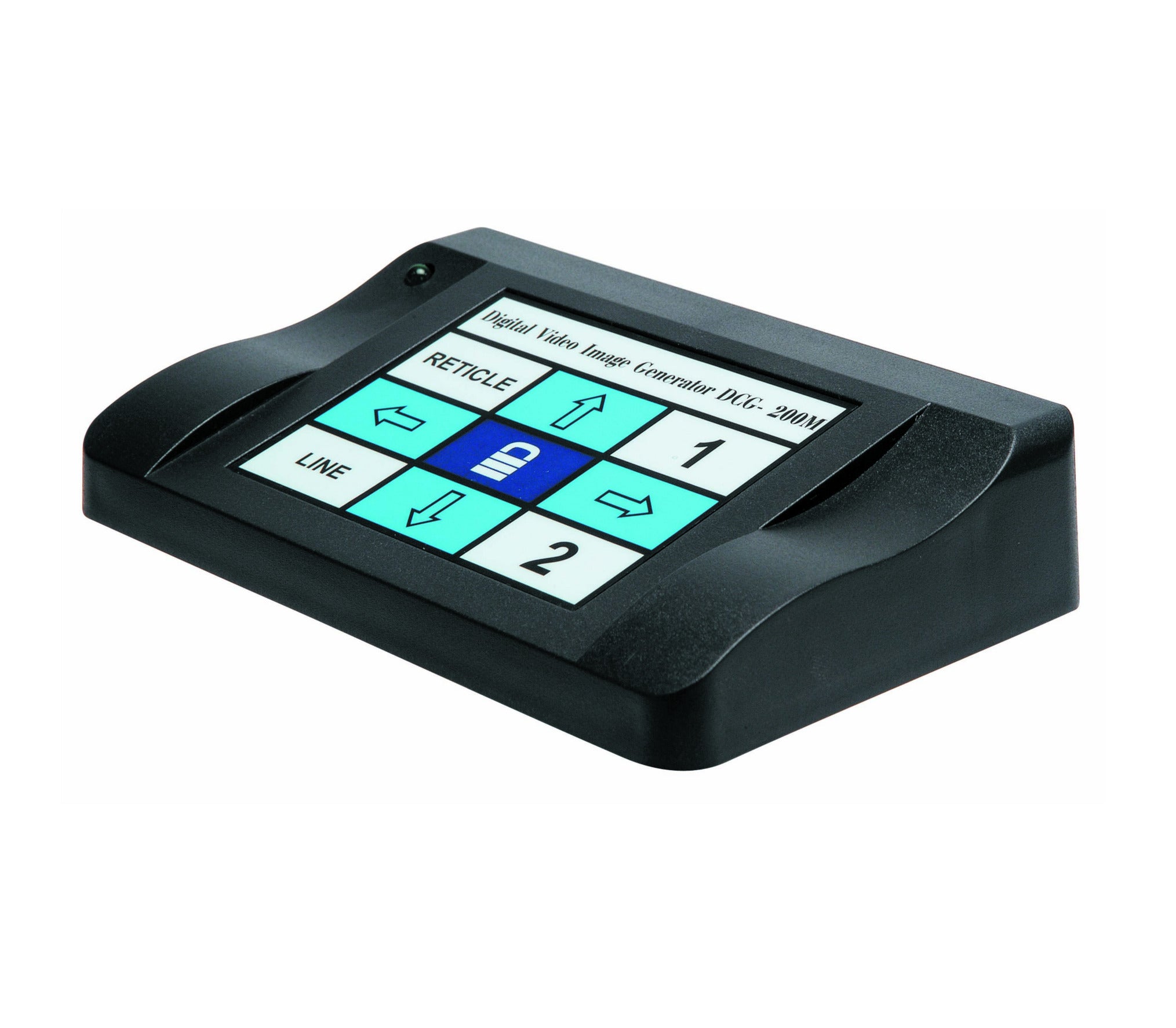

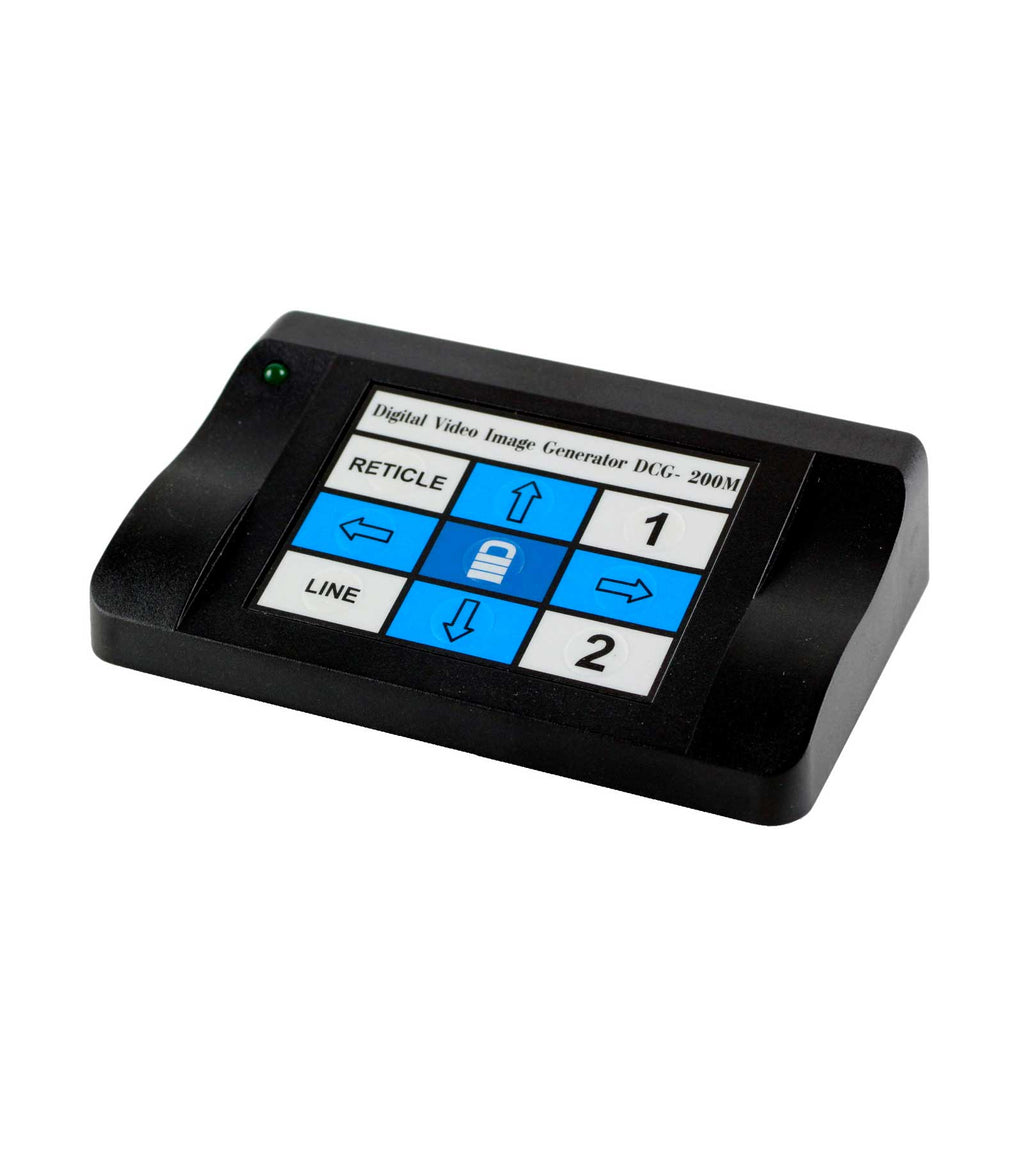

The Techniquip DCG-200M crosshair generator is a digital means of superimposing reticule reference projection, over a live video image. Ideally suited for use in alignment, measurement, and verification. Compatible with NTSC, PAL, EIA, CCIR, S-Video and composite. Video Crosshair Generators are widely used for a variety of inspection and alignment tasks. They provide a means of precisely determining if items too small to easily view with the naked eye are of the correct size or are in the correct location. TechniQuip’s DCG and DVPG products are very popular with industry due to their ease of use and reliability.
- 7 Different reticule patterns
- Single Fixed Crosshairs
- Single Crosshair/Concentric Circle
- Single Crosshair/Dual Concentric Circles
- Single Crosshair/Concentric Square
- Single Crosshair/Dual Concentric Squares
- Dual Moveable Crosshairs
- Sizeable Rectangle
- 4 built in line types, select solid or dashed lines.
- Moveable Cross-hairs lines circles and squares.
- Stores settings when power is removed.
- Active “Hold” lock to prevent movement.

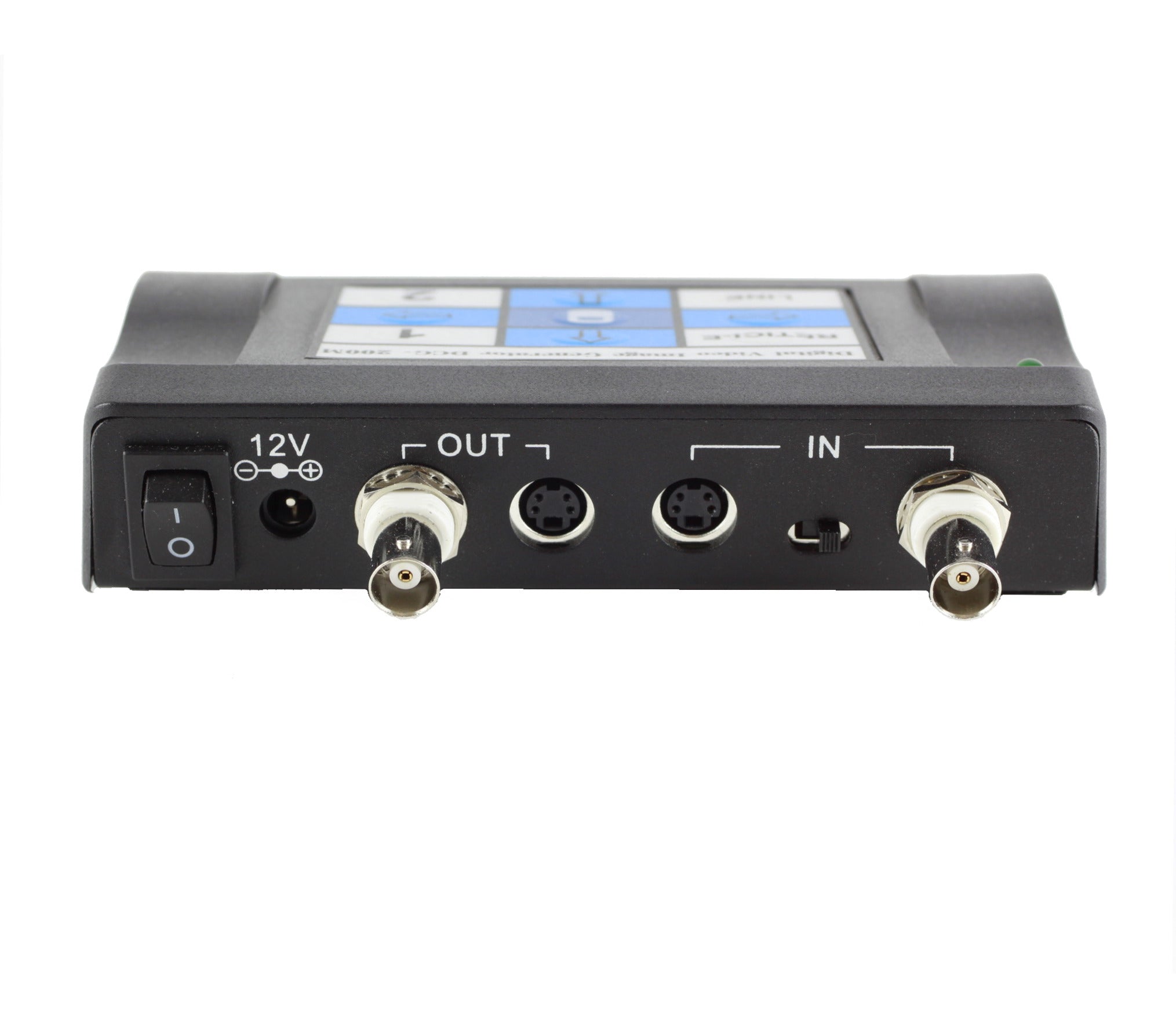

- 12V DC power supply included. Region Specific.
- 2 Number BNC cables included – 1.5M long
- Manual included
- Usually in Stock
- Please see the attached data sheet for more info.
