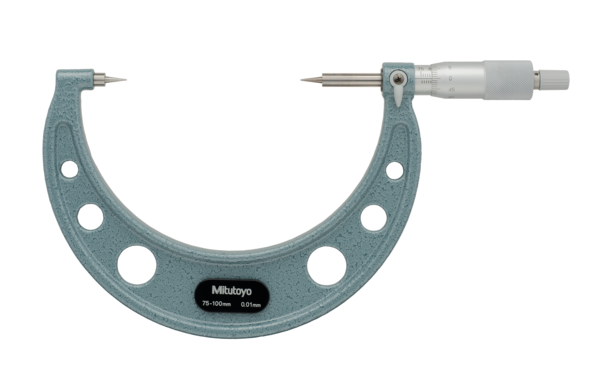

Point Micrometer with Hardened Tip 75-100mm, 15° Tip 112-156

Roll over image to zoom in Click on image to zoom

Point Micrometer with Hardened Tip 75-100mm, 15° Tip 112-156

Name: Point Micrometer with Hardened Tip 75-100mm, 15° Tip 112-156
Brand: Mitutoyo
SKU: 112-156
Price: 284.7 EUR
Availability: InStock

MitutoyoSKU: 112-156

Price:

€284.70 €390.00

Quantity:

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	112-156
Measuring Range	75-100mm
Accuracy	["±.004mm"]
Accuracy	+/-.004mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	3-8N
Type	Point
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Both anvil and spindle Pointed 15°
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Measuring face:	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm

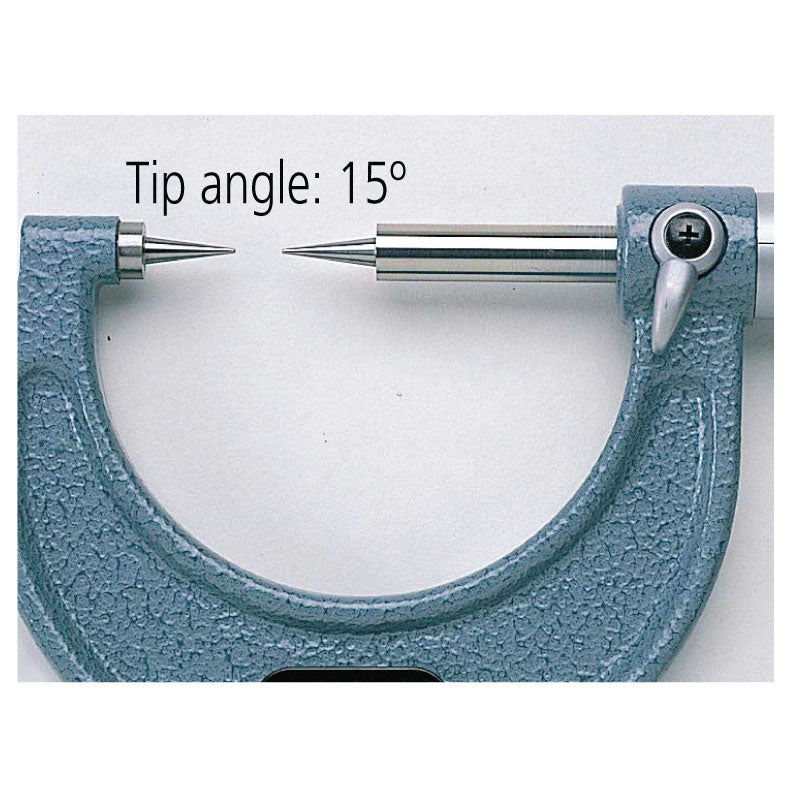

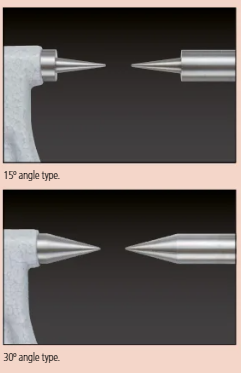

Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	500 g
