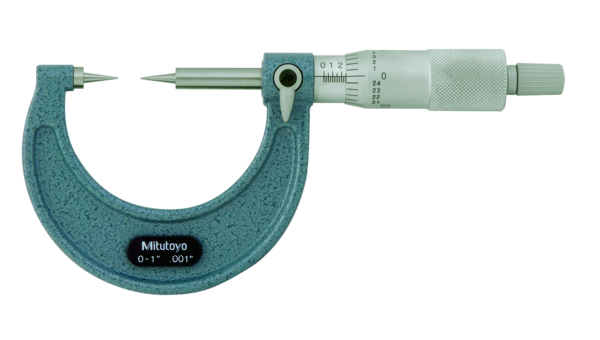

Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177
Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177
Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177
Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177
Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177
Roll over image to zoom in Click on image to zoom
Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177

Point Micrometer with Hardened Tip 0-1", 15° Tip 112-177

Mitutoyo SKU: 112-177
List price: €182.00 Offer price: €141.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Gauge Block Set, Metric, JCSS Cert., ISO
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product

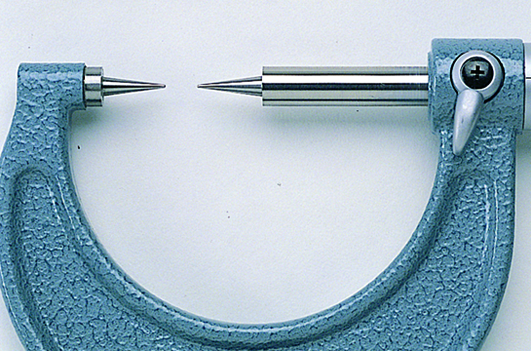

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Inch
Range:
0 - 1 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,00015"
Measuring face:
Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:
15°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
205 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
