PEC Metric Electronic Edge Finder: Code 4200-125

Manufactured in USA by PEC

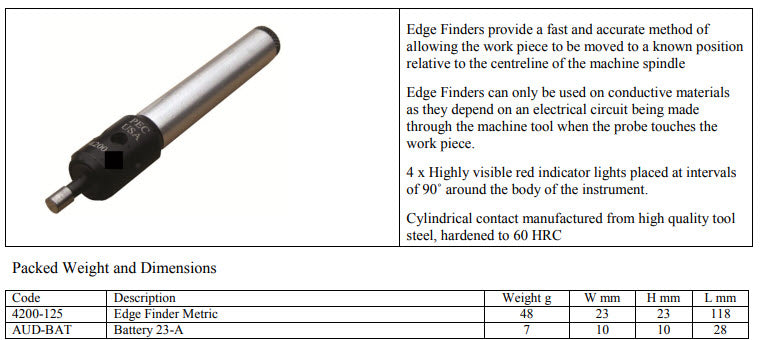

Edge Finders provide a fast and accurate method of
allowing the work piece to be moved to a known position
relative to the centreline of the machine spindle
Edge Finders can only be used on conductive materials
as they depend on an electrical circuit being made
through the machine tool when the probe touches the
work piece.
4 x Highly visible red indicator lights placed at intervals
of 90˚ around the body of the instrument.
Cylindrical contact manufactured from high quality tool
steel, hardened to 60 HRC

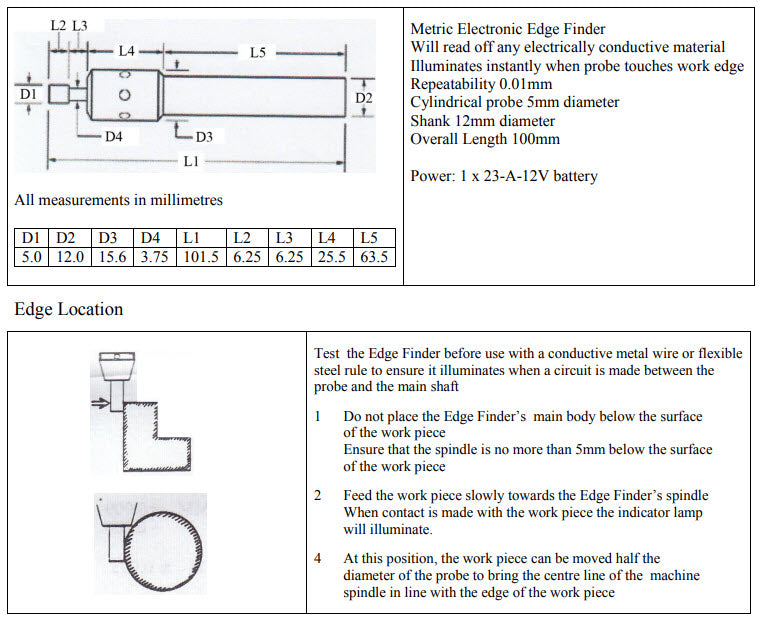

• 6 light ports visible at any angle
• Read off of any electrically conductive material
• Edge finder lights instantly when probe touches work edge
• Repeatability: Within 0.005mm
• Probe Diameter: 5mm
• Shank Diameter: 12mm
• Overall length: 100mm/4”
