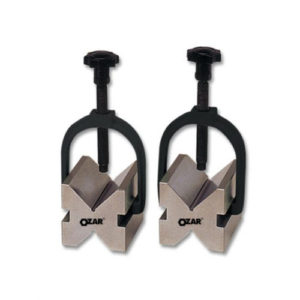

Ozar 70 x 45 x 40 mm Precision V-Block & Clamp Set (Pack of 2 Pcs), AVB-0537 (181-901)

Roll over image to zoom in Click on image to zoom

Ozar 70 x 45 x 40 mm Precision V-Block & Clamp Set (Pack of 2 Pcs), AVB-0537 (181-901)

Name: Ozar 70 x 45 x 40 mm Precision V-Block & Clamp Set (Pack of 2 Pcs), AVB-0537 (181-901)
Brand: OZAR
SKU: AVB-0537
Price: 48.78 EUR
Availability: InStock

OZARSKU: AVB-0537

Price:

€48.78

Quantity:

All sides are ground square and parallel to each other
V’s are central, parallel and square and are matched in pairs
Made of properly heat-treated and hardened tool steel
Precision made for machinist’s and tool-makers use
AVB 0538 & 39 are sturdy V-Blocks designed so that clamps do not protrude over the sides
Supplied in pairs with two clamps
Replacement clamps include pair of clamps and bolts
Geometrical Accuracy as per BS 3731/DIN 2274 Grade 2
Permissible height difference for matched pair within 8 microns
Parallelism tolerance of Vee axis to base within or (10+L/50) microns
Perpendicularity tolerance of end and side faces to base within or (10+H/25) microns

SKU HA.MA.VB.00032

Product Type 'V’ Blocks With Clamps

Model No AVB0537

Length (mm) 70 mm

Width (mm) 45 mm

Height (mm) 40 mm

Accuracy BS3731

Clamping Capacity 38 mm

Grade 2 Yes

Ozar 70 x 45 x 40 mm Precision V-Block & Clamp Set (Pack of 2 Pcs), AVB-0537 (181-901)

Description

Related Products

Recently viewed

SKU	HA.MA.VB.00032
Product Type	'V’ Blocks With Clamps
Model No	AVB0537
Length (mm)	70 mm
Width (mm)	45 mm
Height (mm)	40 mm
Accuracy	BS3731
Clamping Capacity	38 mm
Grade 2	Yes
