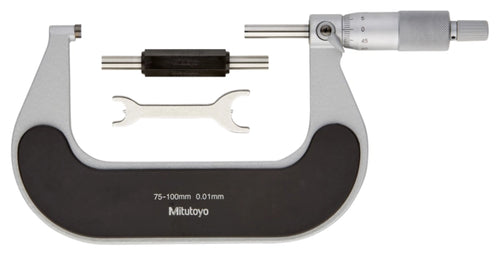

Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304
Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304
Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304
Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304
Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304
Roll over image to zoom in Click on image to zoom
Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304

Mitutoyo Outside Micrometer with Heat Ins. Plate 75-100mm, 0,01mm 102-304

Mitutoyo SKU: 102-304
List price: €158.00 Offer price: €122.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu
A Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:

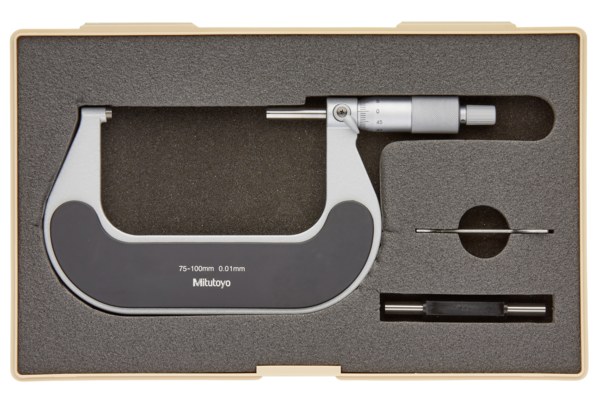

Including box, key setting standard
Inch-Metric:
Metric
Range:
75 - 100 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,6 µm
Parallelism:
3 µm
Remarks:
Ratched Stop
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
490 g
