Welcome to Inspection Equipment, your one-stop online store for metrology products. Phone (353) 1-4502666, sales @inspection.ie

Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311

Roll over image to zoom in Click on image to zoom

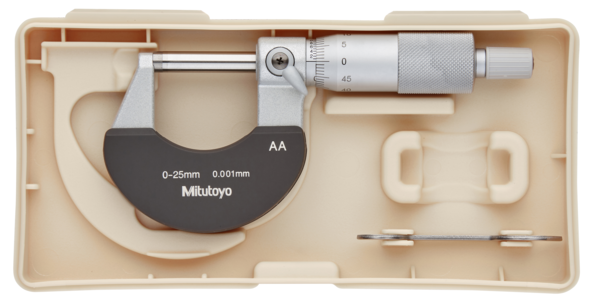

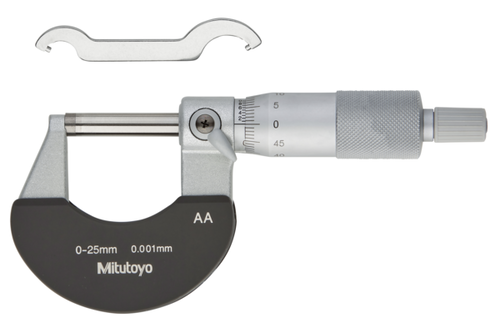

Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311

Name: Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311
Brand: Mitutoyo
SKU: 102-311
Price: 131.0 EUR
Availability: InStock

MitutoyoSKU: 102-311

Price:

€131.00 €175.00

Quantity:

Cut-away frame behind anvil for measuring in hard to reach places. A ratchet stop or friction thimble guarantees repeatable measurement.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	102-311
Measuring Range	0-25mm
Accuracy	["+/-.001mm"]
Graduation	.001mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	.0006mm
Parallelism	.002mm
Calibration Code	CAL1 B1

Digital/Analog:	Analog
Delivered:	Including box, key, certificate of inspection
Inch-Metric:	Metric
Range:	0 - 25 mm
Max. Permissible Error J MPE:	±1 µm
Flatness:	0,3 µm
Parallelism:	2 μm
Remarks:	Ratched Stop
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Mass:	180 g

Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311
