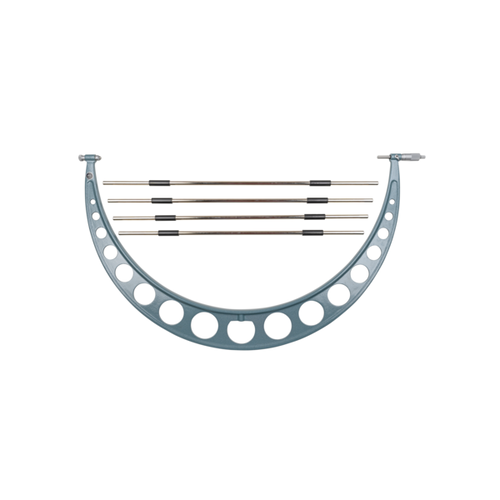

Mitutoyo; Micrometer with Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 36-40″
- Resolution: 0.001″
- Parallelism: 0.00048″
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.00015″
- Scale: Thimble and sleeve satin chrome finish, ø21 mm
- Measuring force: 10-14N
- Interchangeable anvils: 4
- Setting standard: 4 (36, 37, 38, 39″)
- Ratchet stop
