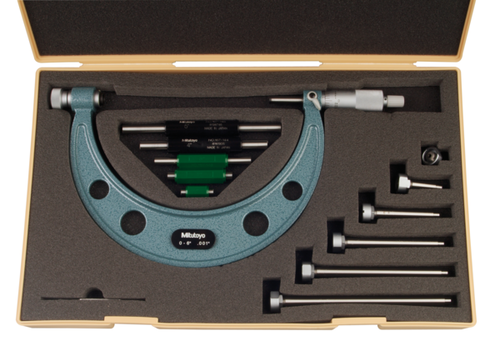

Mitutoyo; Micrometer Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 0-6″
- Resolution: 0.001″
- Parallelism: 0.00012″
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.00015″
- Interchangeable anvils: 5
- Setting standard: 5 (1, 2, 3, 4, 5″)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
