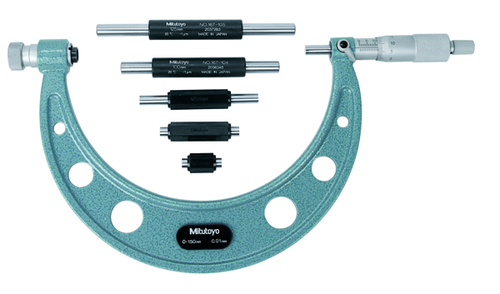

Mitutoyo; Micrometer with Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 0-150mm
- Resolution: 0.01mm
- Parallelism: 0.003mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 6
- Setting standard: 5 (25, 50, 75, 100, 125mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
