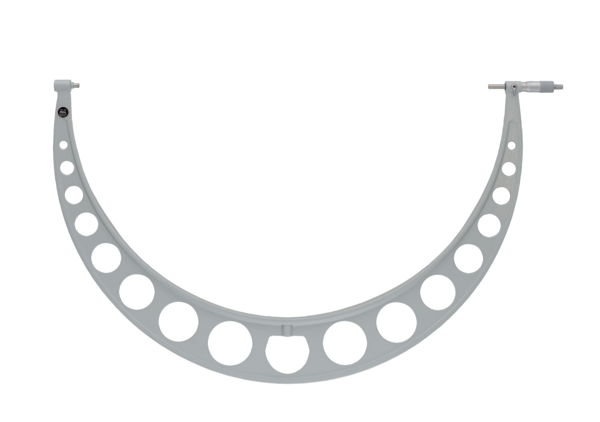

Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166
Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166
Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166
Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166
Roll over image to zoom in Click on image to zoom
Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166

Metric Analogue Outside Micrometer 725-750mm, Ratchet Stop 103-166

Mitutoyo SKU: 103-166
List price: €1,068.00 Offer price: €828.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Metric Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

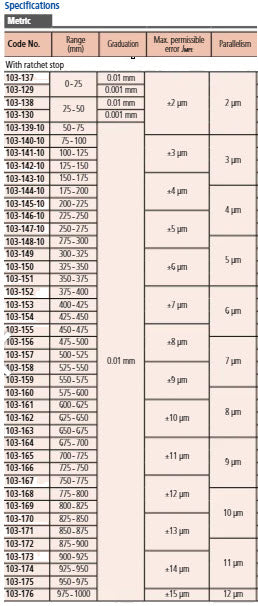

    Specifications

    • Digital/Analog: Analog
    • Inch-Metric: Metric
    • Graduation: 0,01 mm
    • Maximum Permissible Error J MPE: ±2 µm
    • Accuracy: ±2 µm
    • Flatness: 0,6 µm
    • Parallelism: 2 µm
    • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
    • Scale: Thimble and sleeve satin chrome finish, ø18 mm
    • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
    • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
    • Mass: 175 g

      All images are for representation only.
