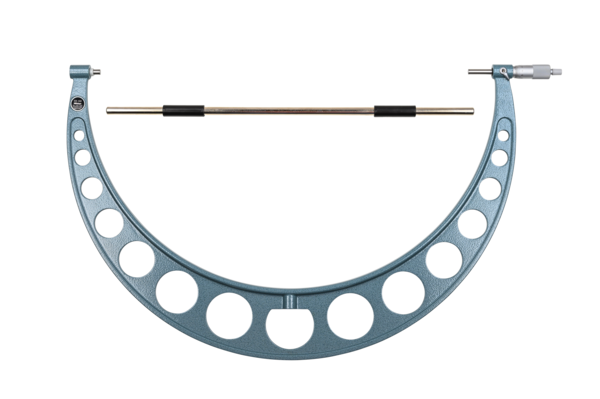

Metric Analogue Outside Micrometer 675-700mm, Ratchet Stop 103-164

Metric Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

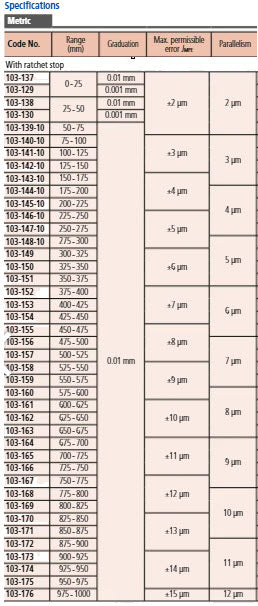

Specifications

• Digital/Analog: Analog
• Inch-Metric: Metric
• Graduation: 0,01 mm
• Maximum Permissible Error J MPE: ±2 µm
• Accuracy: ±2 µm
• Flatness: 0,6 µm
• Parallelism: 2 µm
• Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm
• Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
• Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
• Mass: 175 g

All images are for representation only.
