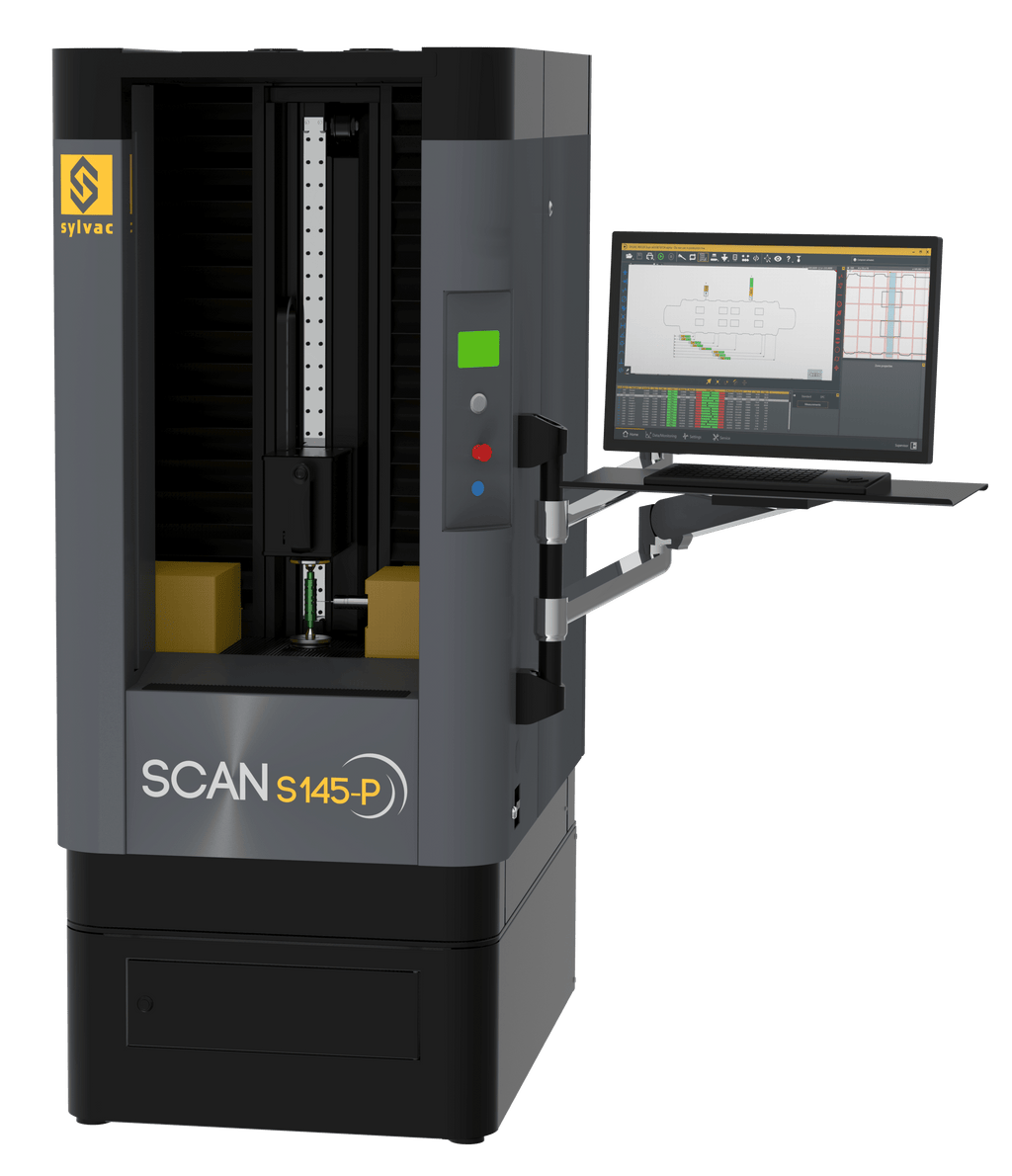

Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145
Roll over image to zoom in Click on image to zoom
Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145

Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145

Sylvac SKU: 902-4145
Price:  POA

Features


  • Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of large cylindrical parts up tp 100kg. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 615mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
  • Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
  • Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.
  • Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

Applications


icon-diameter
Diameter
logicielsDistance
Distance
angle-icon
Angle
logicielsPosition
Localisation
icon-form-deviation
Form deviation

Industries


icon-automotive-sylvac
Automotive
icon-aeronotics-sylvac
Aeronautics
icon-fastening-sylvac
Fastening
icon-oackaging-sylvac
Packaging
icon-machine-tool-sylvac
Machine tool
902-4145
EAN 7640125682687
Diameter Length
Measuring range (mm) 145 615
Resolution up to (mm) 0.0001
Max. error (µm) 1.5 + (D[mm]/100) ¹ 4 + (L[mm]/200) ¹
Repeatability 2δ (µm) 0.5 1.0
Holding capacity (mm) 254 615
Axial positioning speed (mm/s) Up to 160
Headstock Rotary headstock for static and dynamic measurements
Max. weight of part (kg) 100
Machine’s weight (kg) 530
