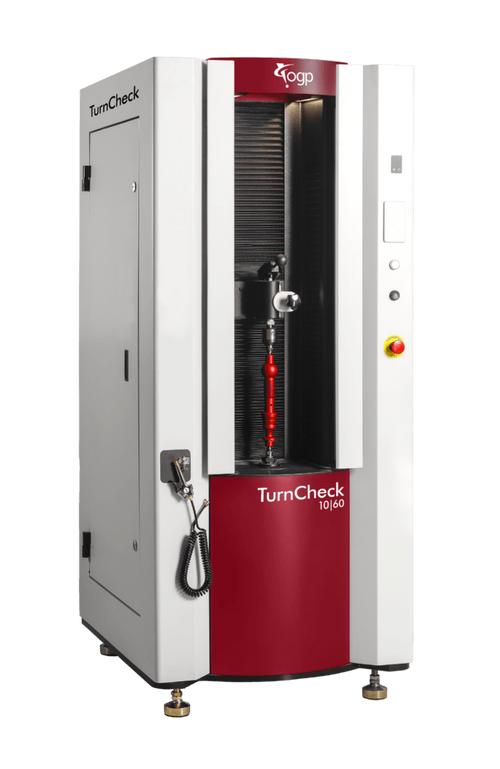

OGP TurnCheck Series-10 Precision Optical Shaft measuring system

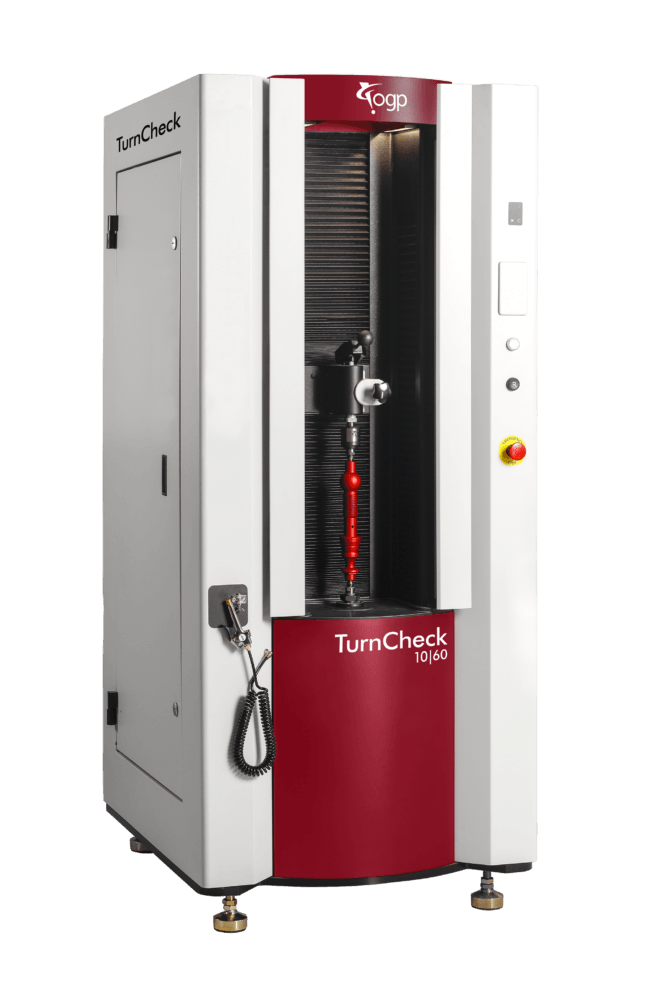

OGP TurnCheck Series-10 systems offer a fast, easy way to measure shafts, cylinders and other turned, ground or extruded parts. Just place the part and press GO.

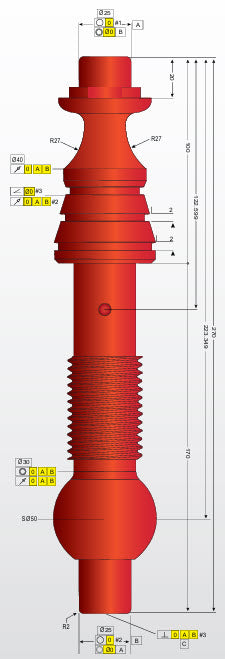

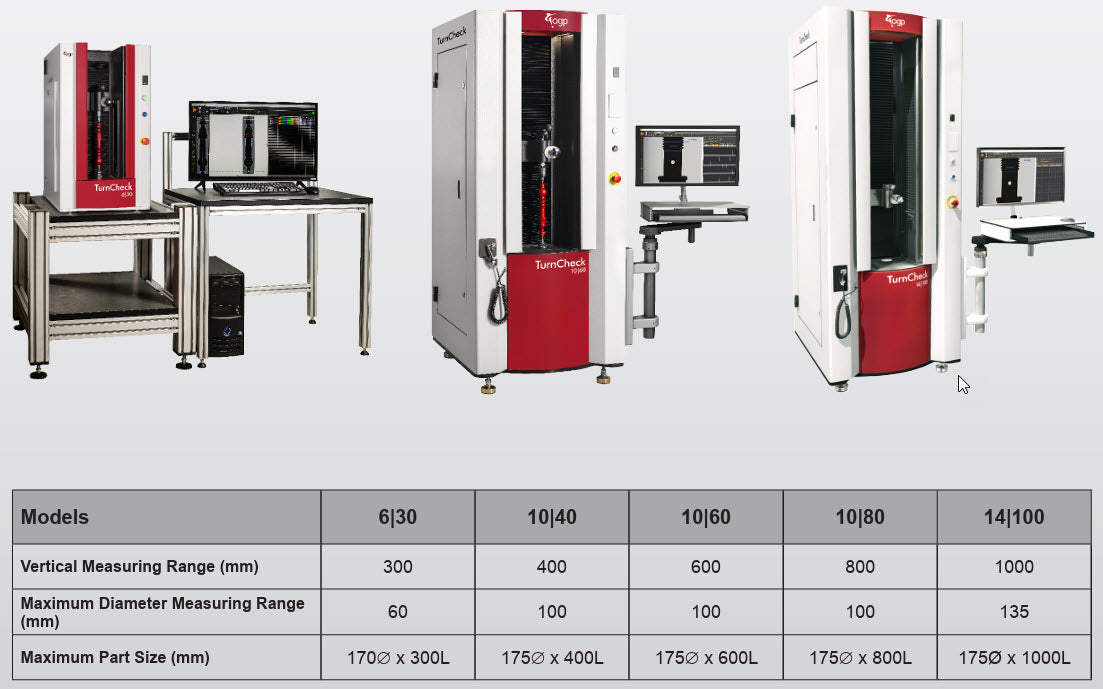

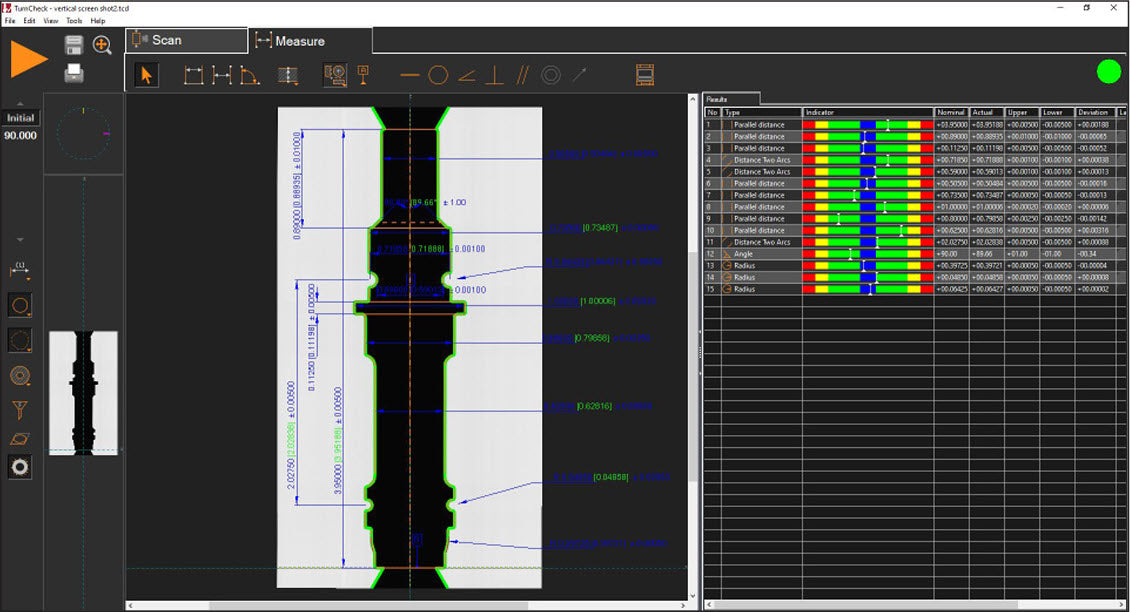

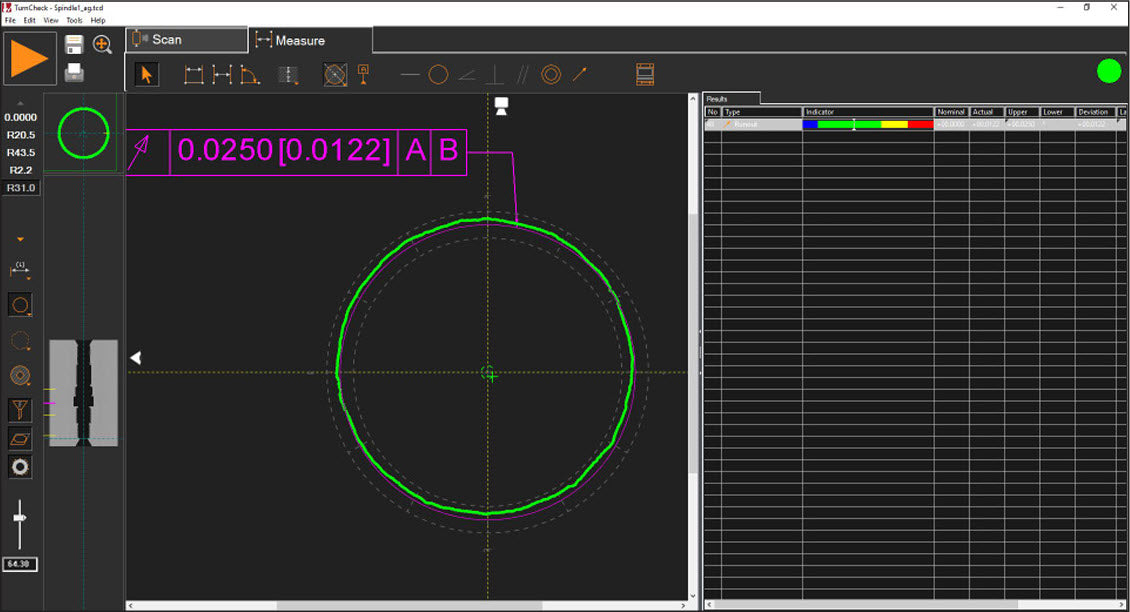

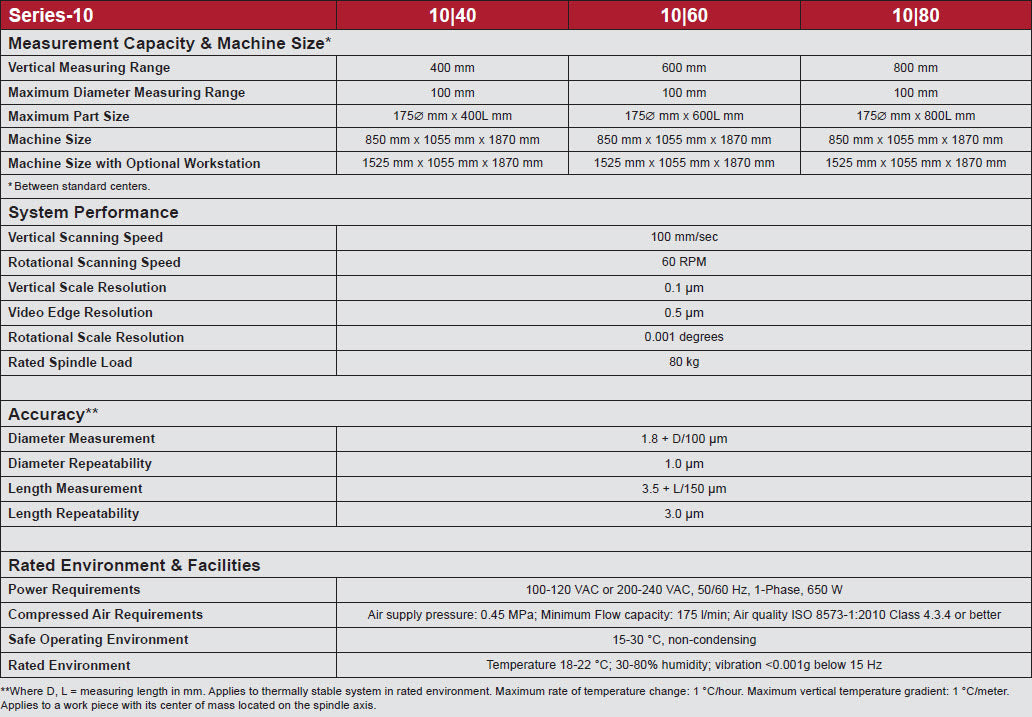

TurnCheck Series-10 systems are precision optical measuring instruments designed for shop floor environments. TurnCheck systems are rugged and reliable, accommodating parts up to 175 mm diameter by 800 mm in length. TurnCheck will scan and measure a part in seconds using its telecentric, large field of view optical system. With 100 mm wide field of view and vertical range of 400, 600 or 800 mm, TurnCheck Series-10 systems can handle just about any turned or ground part. TurnCheck software allows easy measurement of diameters, lengths, distances, angles, radii, form, position, cylindricity, and runout – and can output point data for external analysis.

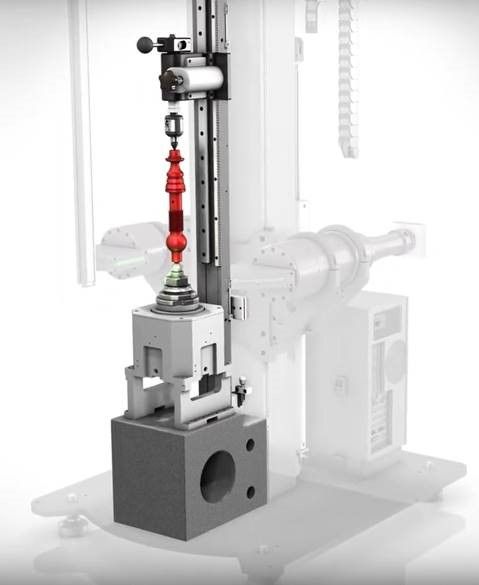

The movable tailstock assembly is designed to be easily operated with one hand for precision mechanical alignment of the workpiece. Additional optional workholding kits that fit into the spindle accommodate workpieces that do not have centers.  Granite base support for rotary provides a rigid base and isolates vibration.

OGP TurnCheck Series-10 Brochure
