A COMPACT, SELF-CONTAINED AND PROGRAMMABLE SEMI-AUTOMATIC VIDEO MEASUREMENT SYSTEM

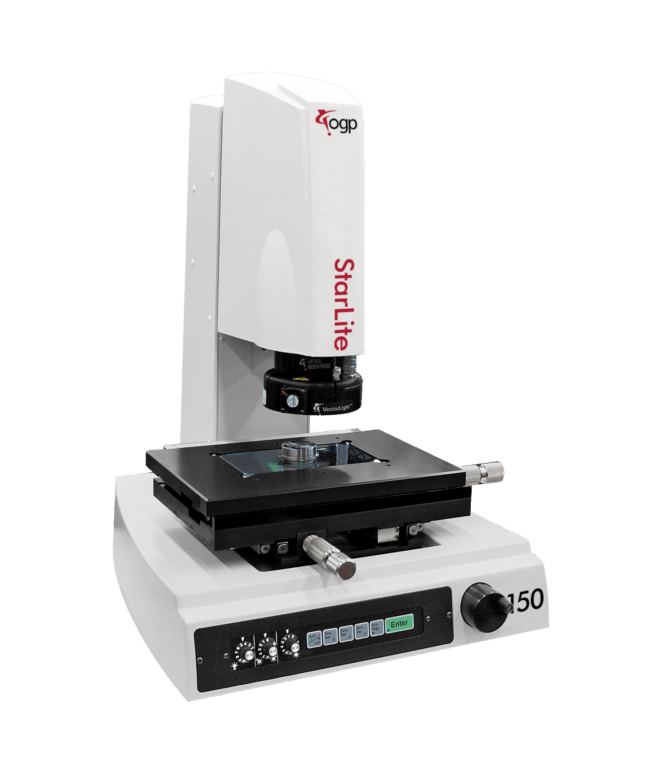

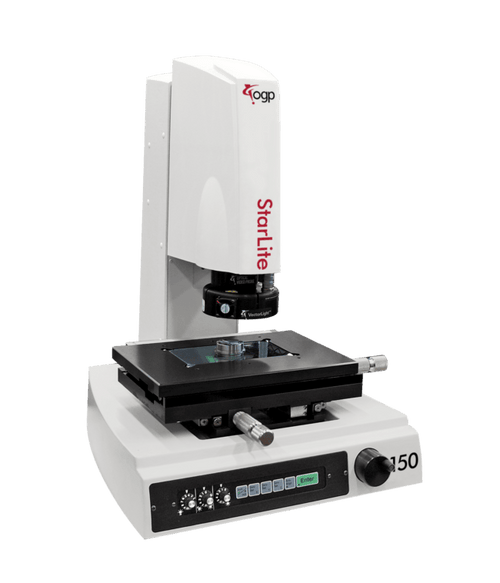

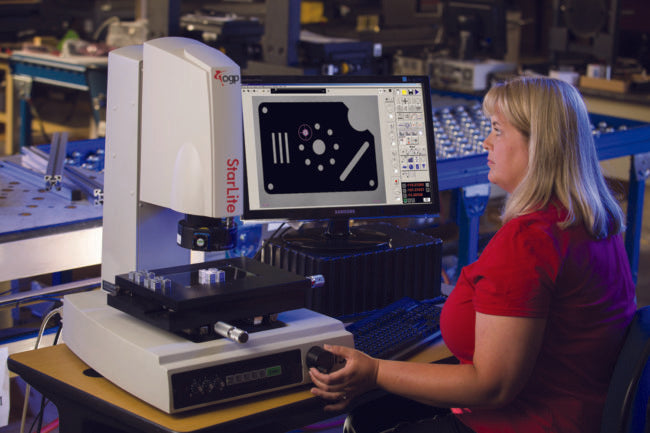

StarLite™ systems are programmable semi-automatic video measurement systems. A motorized 6.5:1 zoom lens and motorized Z axis make StarLite systems far more capable than what is typically considered a manual system. The zoom lens provides optimum magnification, and coupled with the motorized Z axis, StarLite systems are capable of accurate auto-focus measurements. Edge detection tools minimize operator influence on the measurements.

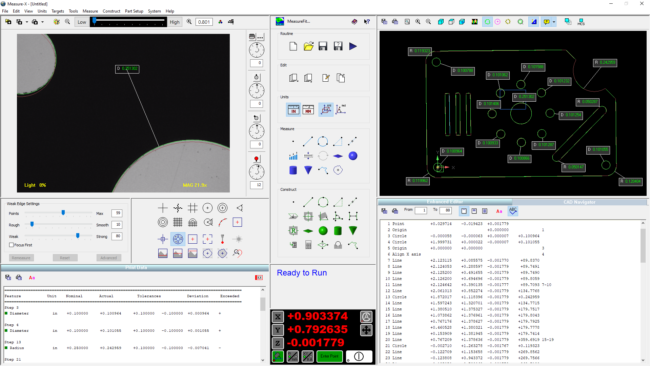

Measure-X metrology software provides powerful programming capability with an easy-to-use operator interface. Semi-automatic programs can be created, guiding the operator from one automatic measurement to the next. StarLite systems are simple and rugged enough to stand up as everyday measurement tools, providing exceptional measurement capability at a value price.
|
|
Standard |
Optional |
|
XYZ Travel |
150 x 75 x 125 mm |
|
|
XYZ Scale Resolution |
1.0 µm |
|
|
Drive System |
Manual with coarse and fine X, Y, Z position adjustment knobs |
|
|
Worktable |
Anodized, with fixture holes, removable stage glass, 7 kg recommended max payload |
|
|
Optics* |
Motorized zoom; 1.0x lens |
Lens attachments for 1.0x Lens: 0.5x, 0.75x, 1.5x, 2.0x |
|
Illumination |
Substage LED profile, coaxial LED surface, VectorLight LED ring light |
|
|
Metrology Camera |
Megapixel color digital metrology camera |
|
|
Field of View** |
7.3 mm x 5.5 mm (low zoom) to 0.5 mm x 0.4 mm (high zoom) |
14.6 mm x 11.0 mm (1.0x lens, 0.5x attachment) to 0.27 mm x 0.20 mm (1.0x lens, 2.0x attachment) |
|
Working Distance |
62 mm |
Up to 133 mm (1.0x lens, 0.5x attachment) |
|
Software |
Measure-X Measure and Compare |
Measure-X Analyze, Measure-X Offline, EVOLVE® SPC |
|
System Controller |
Windows® based, with up-to-date processor and onboard networking/communication ports |
|
|
Controller Options |
|
24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) |
|
Accessories |
|
Foot Switch |
|
Power Requirements |
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 350 W |
|
|
Safe Operating Environment |
15-30 °C, non-condensing |
|
|
Rated Environment |
Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz |
|
|
XY Area Accuracy |
E2 = (4.5 + 8L/1000) µm |
|
|
Z Linear Accuracy |
E1 = (7.0 + 8L/1000) µm |
|
